Antenna Brackets I Made...

[aametalmaster]

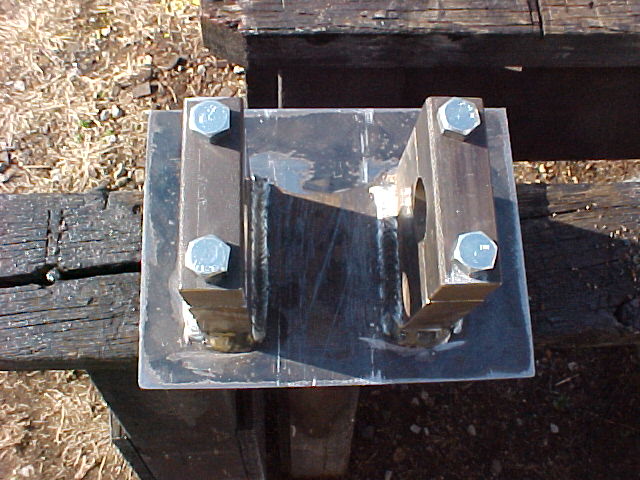

Antenna brackets. Made from 1" and 3/8" plate. 1 1/4" Holes bored in my lathe and welded with my MM185 w/CO2 and Inweld Dual Shield .035 fluxcore wire...Bob



[Robotstar5]

That looks like a serious bit of tube to carry the antenna, are you a radio ham by any chance?



[aametalmaster]

That looks like a serious bit of tube to carry the antenna, are you a radio ham by any chance?

No i am not. I just did the job for a customer that sent me some drawings...Bob



[wyn]

Nice..... will you be bolting the plate to anything, the welding distortion could cause some grief to the line up of the holes if the plate is pulled flat.



[Arsonista]

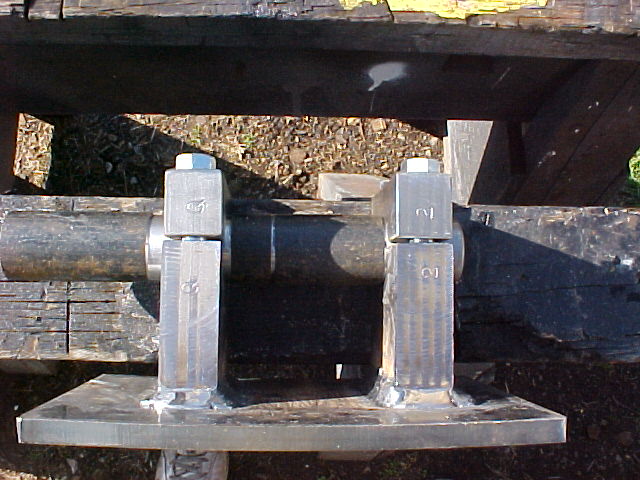

Nice job, nice welds. Is that the camera lens or is the bottom plate that distorted?. If you don't mind me asking.



[Welderpaul]

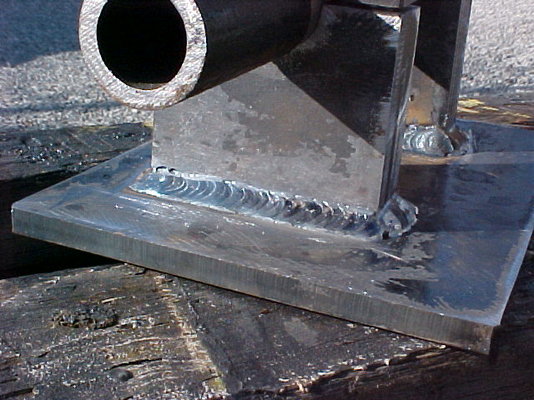

Bottom plate has curled slightly due to the concentrated heat when the two brackets have been welded on. Counteracted by clamping down hard to a decent piece of steel/plate/bench. If you are putting a lot of heat into something like that, you can trap a piece of say 5mm rod between the back of the plate and the bench - back-bending.
When it is all released, the plate should be fairly true - a bit of trial and error required!

Sturdy job.



[gordon stephenson]

The bottom plate does look a little distorted,but even when bolted down and pulled flat I don't think it will effect the saddle brackets, they are too thick and far enough from the welds ( I may be wrong)

Cheers gordon.



[Hitch]

Best to flatten it out before you bolt it up, if its going onto masonary.

Two blocks or hard wood, just in from each end, and give it a belt with the sledge.

As Paul mentioned, a bit of clamping down will minimise that.



[aametalmaster]

Nice job, nice welds. Is that the camera lens or is the bottom plate that distorted?. If you don't mind me asking.

It was the lens, it was bowed a little but the camera really made it look worse. I was going to heat them on the backside but the guy said they would be fine as they are bolting to wood....Bob
