another what am i doing wrong thread

[campervan]

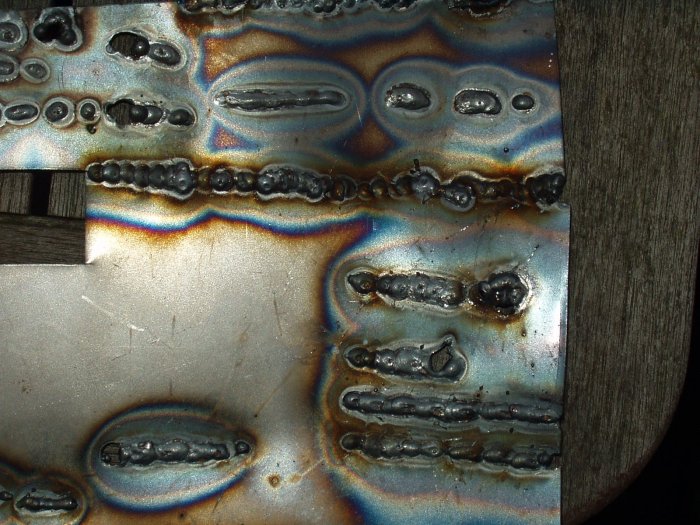

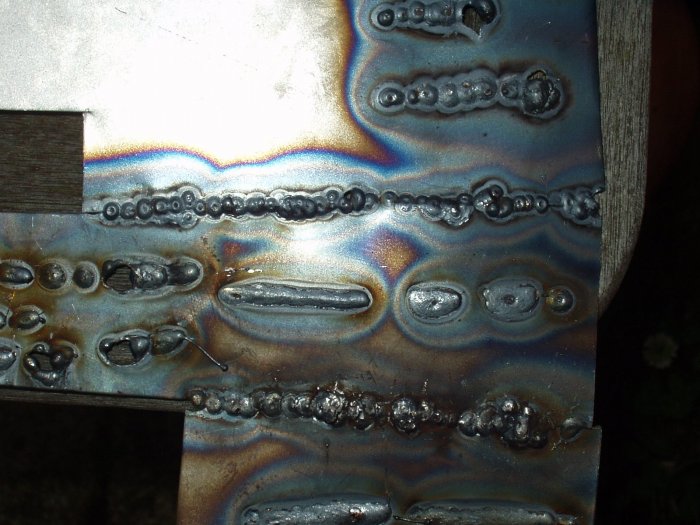

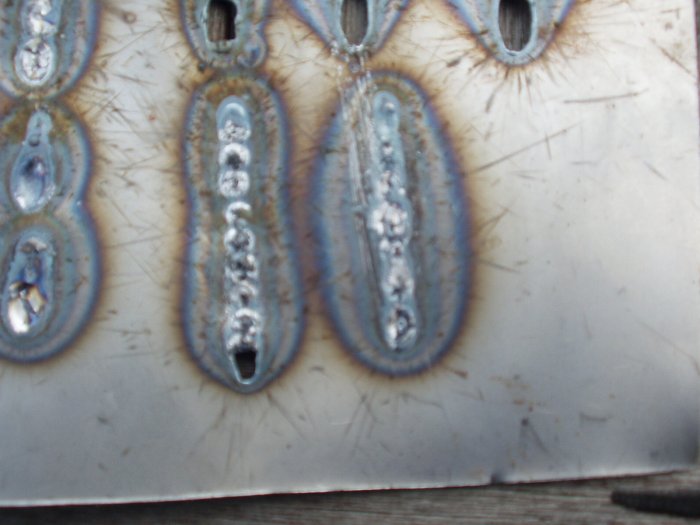

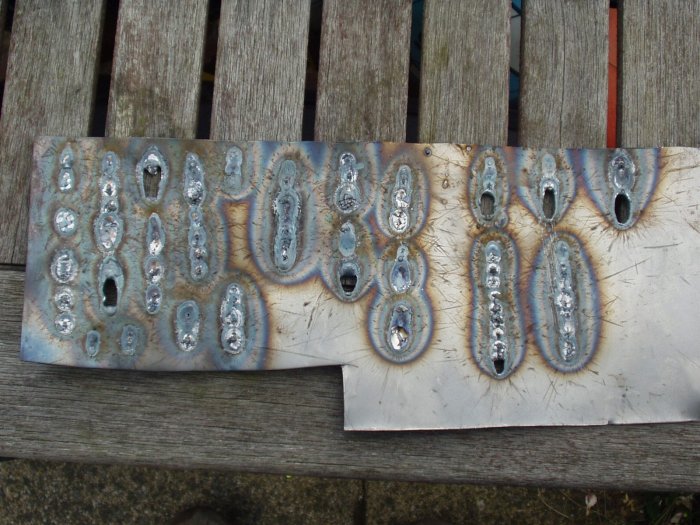

hi all i am trying to weld my campervan but having trouble migging
i have praticed on old bit of wing and new metal
i am using a clark 100e bottle of gas (i think its argon co2 mix i got it years ago when i tried migging then but had welder nicked )
i have tried diffrent presure settings in psi 20 10 5 2 & 0 and diffrent wire speeds i have also used my oxy bottle to see if theres any diffrence in the weld looks like arc weld slag when i tap it with the hammer just falls off the welds also have cracks in them prior to hitting with hammer the wire is 06 i assume as its in the small grove on wheel any help much apreaceated



[shenion]

Are you sure that is gas MIG wire? Gasless will have lag like you say. Should have a copper coating for gas wire.

Also the numbers on the roller are backwards from what you would expect. 0.6 showing will have the 0.8 groove under the wire.



[campervan]

thanks for reply i think my problem is i am getting confused with my gas i think i am using oxygen not argon i thought i had a bottle filled with argon shield years ago when i had a mig but now i am not sure this might explain why i could only blow holes then and now i assume its getting to hot welds have cracks in them prior to chipping them off with hammer i am waiting for to get some argon to see how that goes have to stick with oxy acc till then but me pannels will warp with the heat



[JayRS4]

I`ve got a feeling you could be right in that your using oxygen, the bottle has a black top, and i think thats an "oxidising" label on it. Argoshield is a green top, blue bottle. Could have been not so pretty if there was grease in the torch valve or inside the machine.



[campervan]

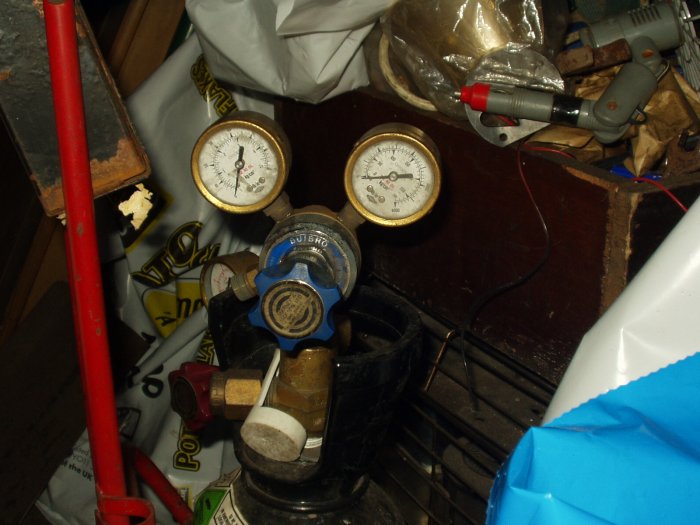

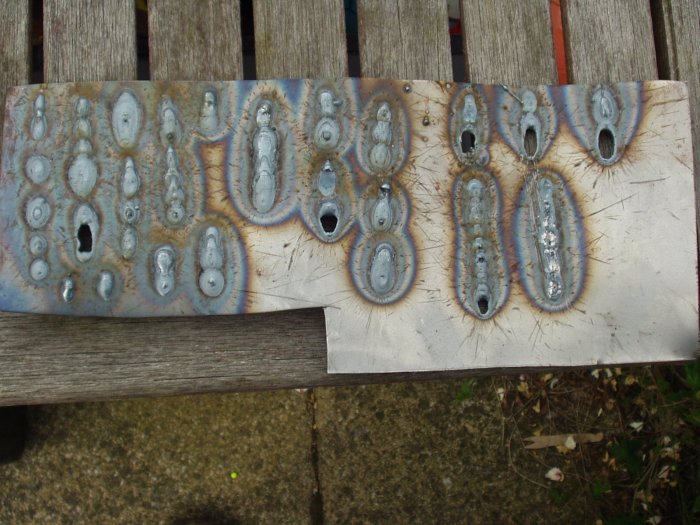

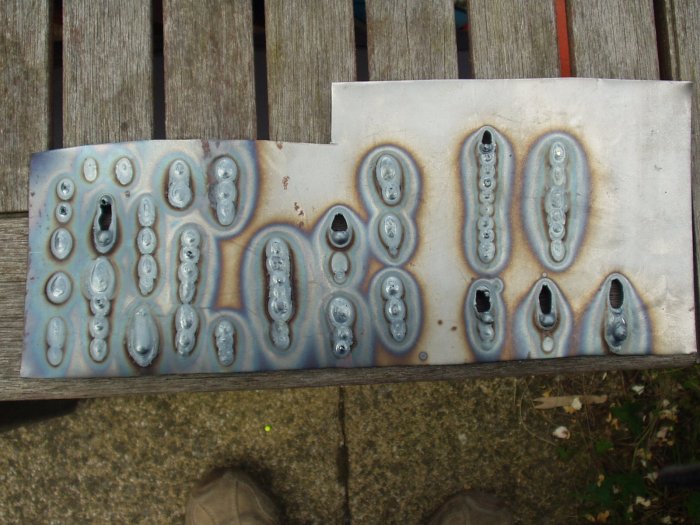

got me some gas

had my old bottle pressure tested and filled with argonsheild my welds look a lot better now blew some holes but filled them in to see if i can on some spare metal but its a fine line between practicing and trying to get back on road http://fordtransit.org/forum/viewtopic.php?f=15&t=43530



[syborg]

blooming hell!!! getting o2, co2 or argon mixed up is potentialy lethal.
ive seen the results from a chap who had oily hands when he set up his oxyacetlyne gear. not nice, his hands looked black cornflakes had been stuck to them.
think i,ll stick to arc welding.



[campervan]

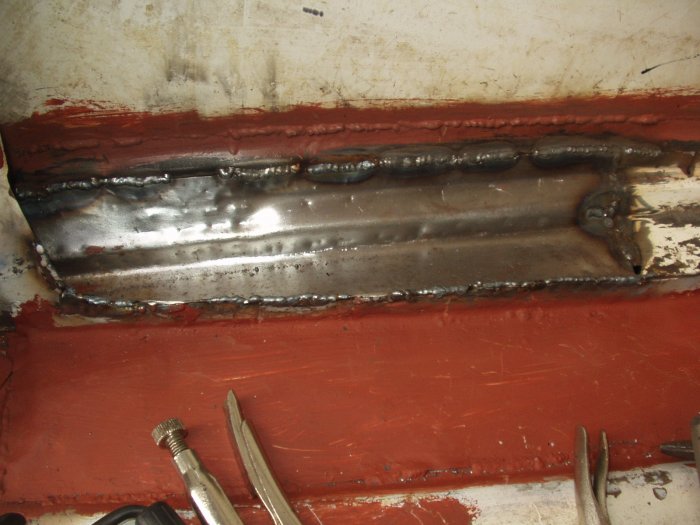

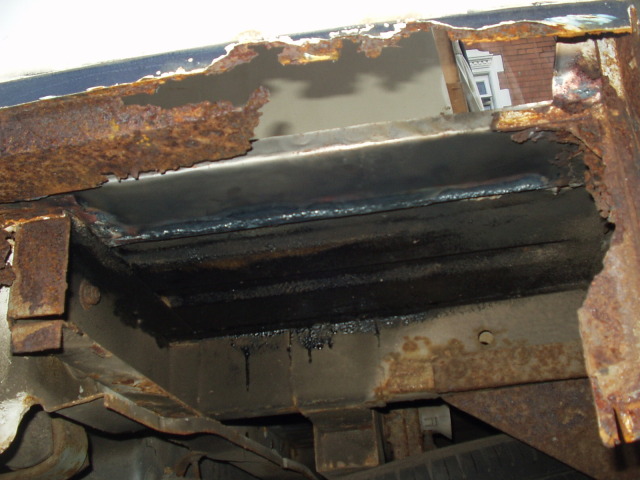

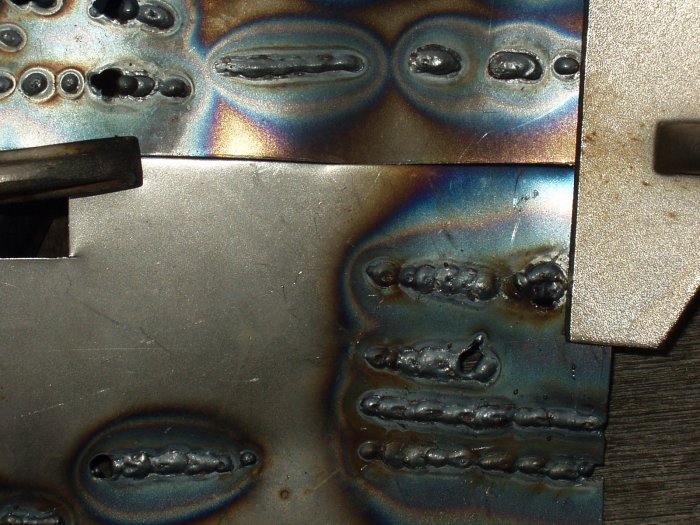

no rain bit of welding

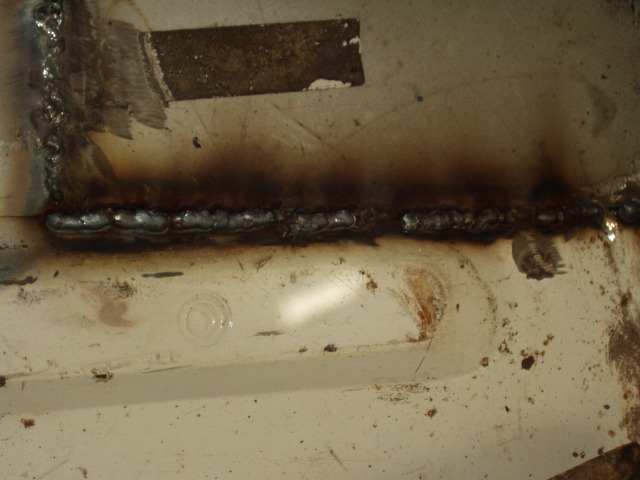

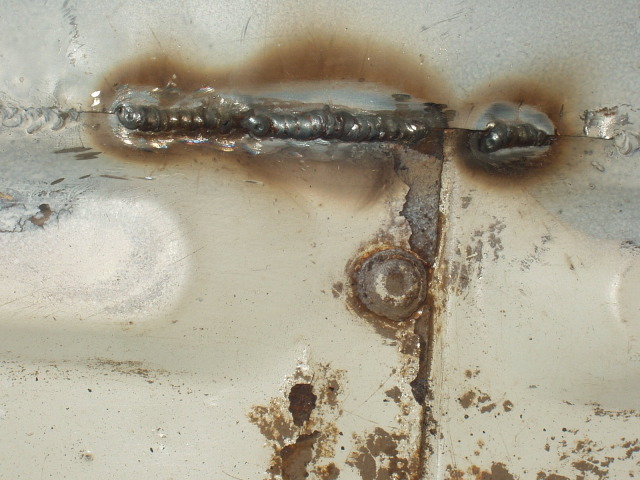

done a bit of welding now i have gas and sunshine for hr or two wish the neighbors would stop saying hello and talking to me every 5 mins slows me down too much last pic in thread is using gas welding done that while waiting for argon first two using clarke 100 mig have to learn as i am going along
wire speed 5 switch on 1 max gas about 10/20 boc single gauge tried on min first got better weld on max setting so welded over bit of first weld



[Wozzaaah]

Welding over a weld might make it look better but I doubt it will make any difference to the integrity of the weld.
Think about it, say you're laying a 2mm high bead on 1mm steel so you now have 3mm to penetrate.



[campervan]

thanks for your reply i upped the amps when i welded over the bit of weld i done first and it seamed to melt the original weld i got under neath afterward to see if it penetrated and it had



[campervan]

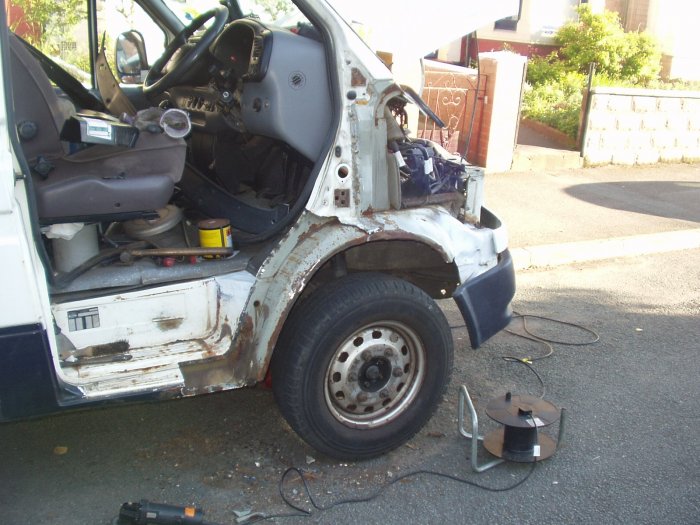

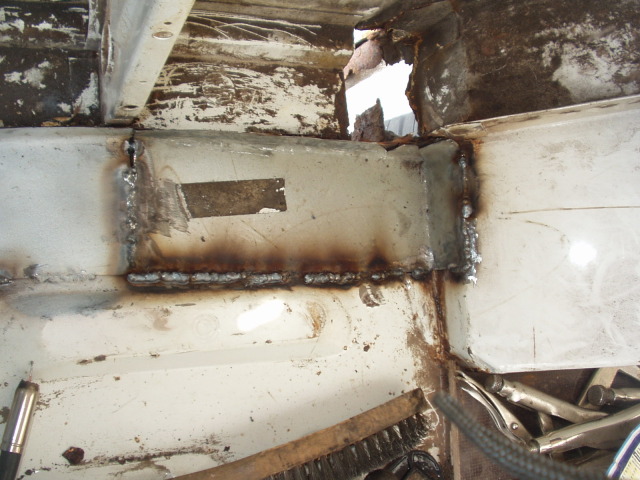

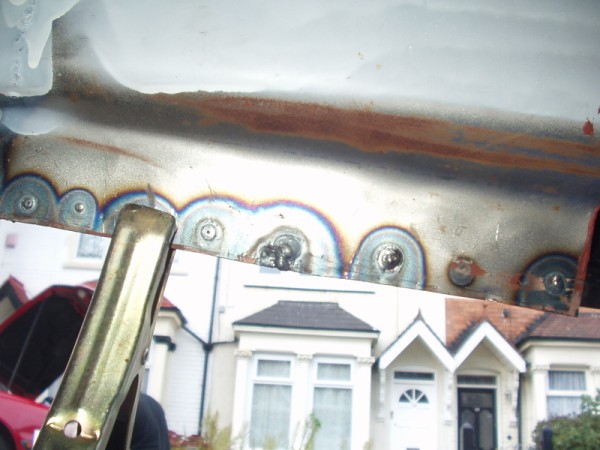

got bit of work done

no rain son off school playing with friend so got me welder out














when i get a Minute will re post this in project section



[steve202]

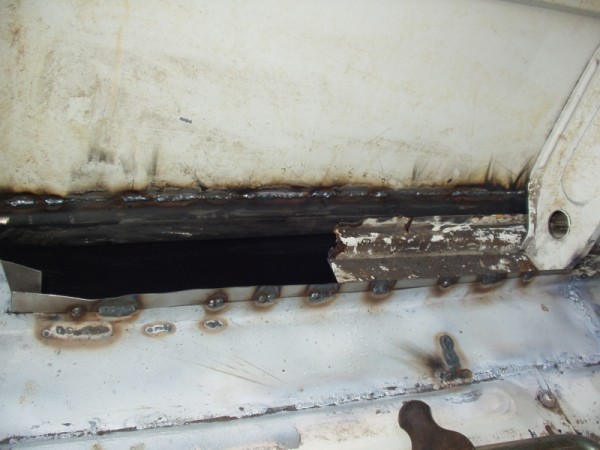

Clean up the metal a bit more before welding. In some places i can see you have welded through paint. Do you have an angle grinder?



[campervan]

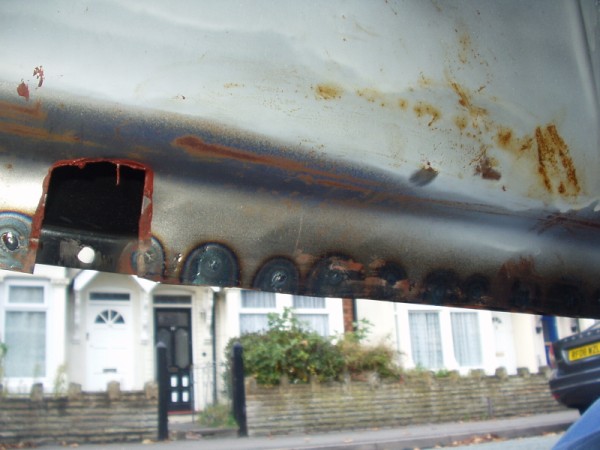

stopping rust

i have a grinder poss just trying to rush cause it was getting dark .now i done a bit of welding whats best to put on it to stop it rusting to much before i get to Finish it off its already started to rust on the weld going down on right hand side i put a bit of primer on it but think its no good would i be better to put red oxide or bit gloss on it



[steve202]

You would be better off sealing it from the elements right after you have completed the panel rather than doing a temporary mash up. Primer is porous.



[pedrobedro]

I slap some Zinc 182 on after welding, you can paint over it later with your top coat. That looks as good as you'll get at a lot of places that charge money for the job so keep it up and you'll soon have all the holes filled.



[campervan]

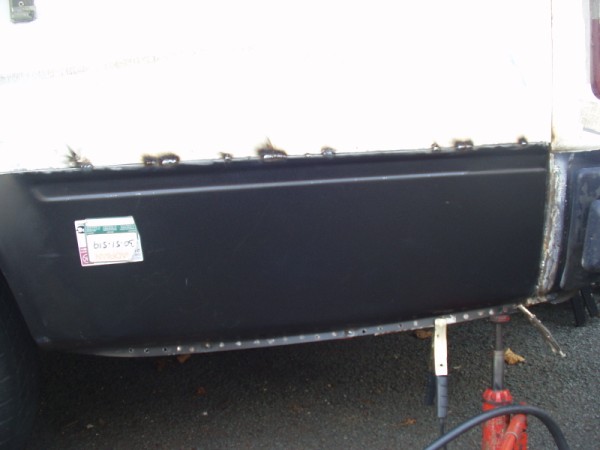

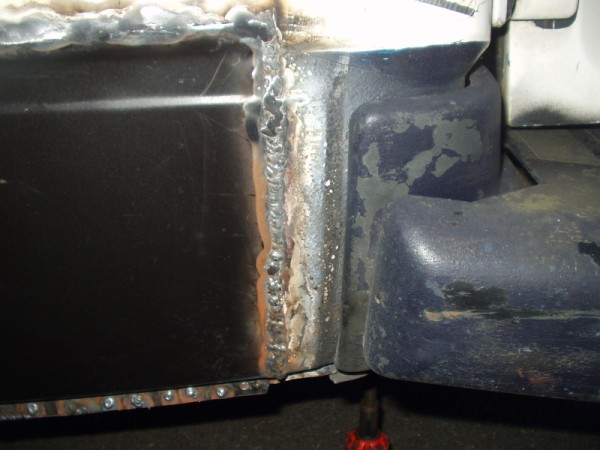

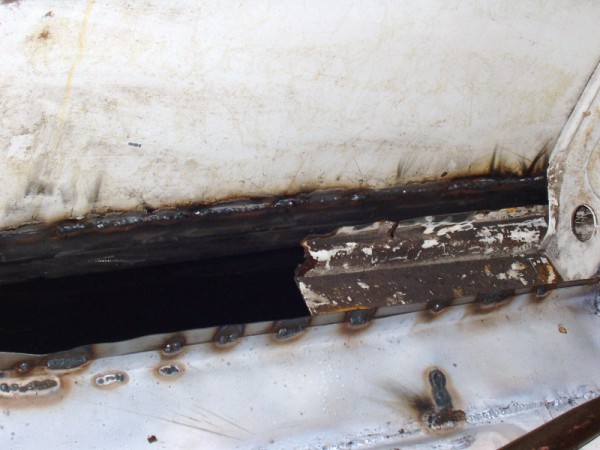

is it gettin better

just done bit more today is my welding getting better please comment



[Bsmith]

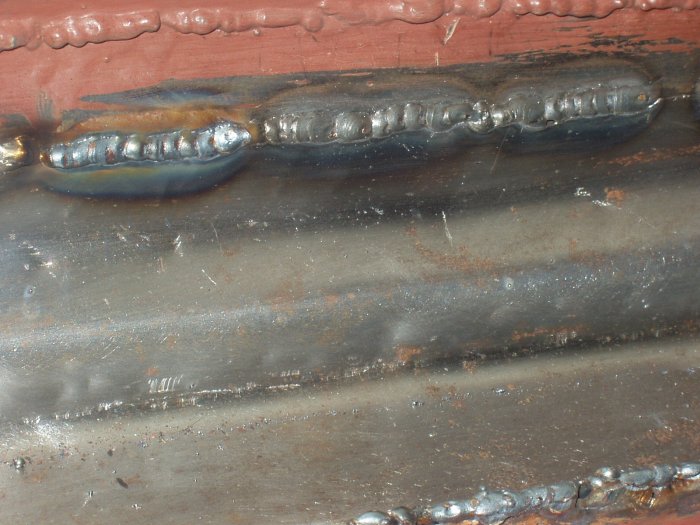

Welds in top pic, taaaaack stop, taaaaack stop, tasaaaack etc are ok but cutting the overlap a little, bit less voltage or could try bit less/more WFS. Not at all bad tho
