Air planishing hammer design and dollies

[mcmental]

Has anyone built their own planishing hammer and dollies? I’ve seen the cheap ones for sale on eBay etc but always fancied making my own



[mike 109444]

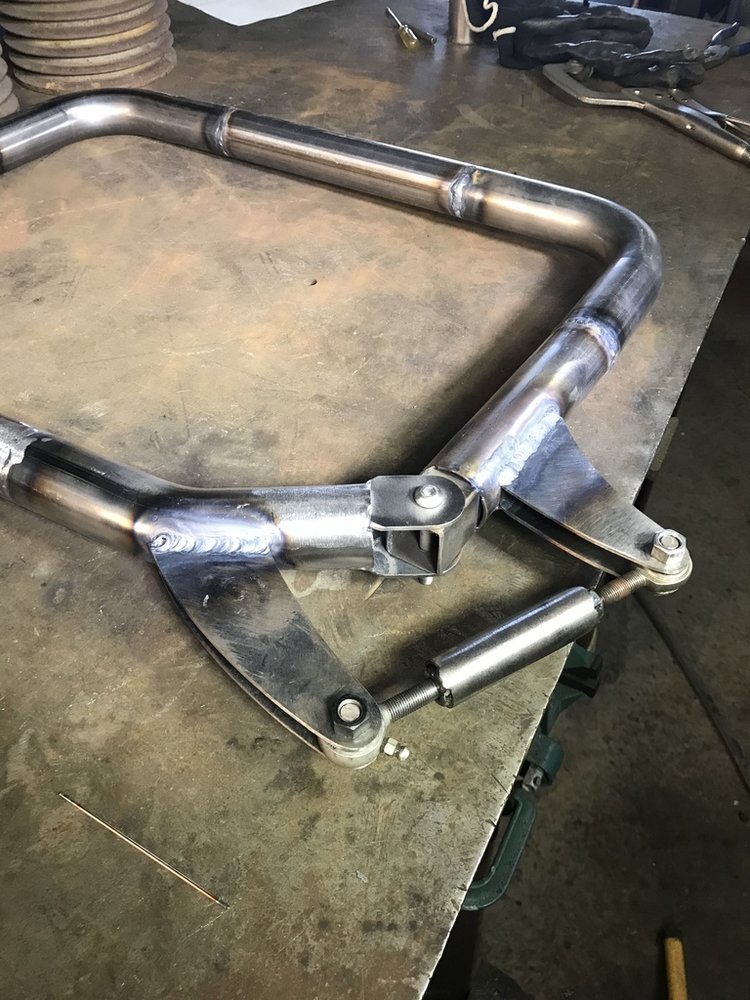

Not mine just a couple of pics I had collected.



[mike 109444]

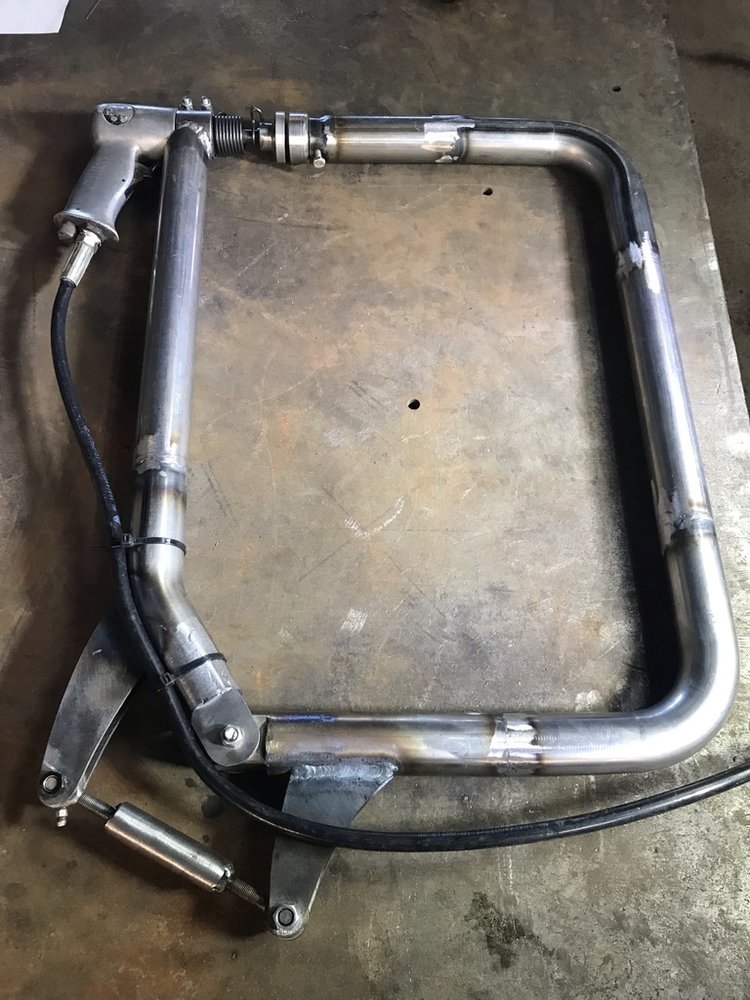

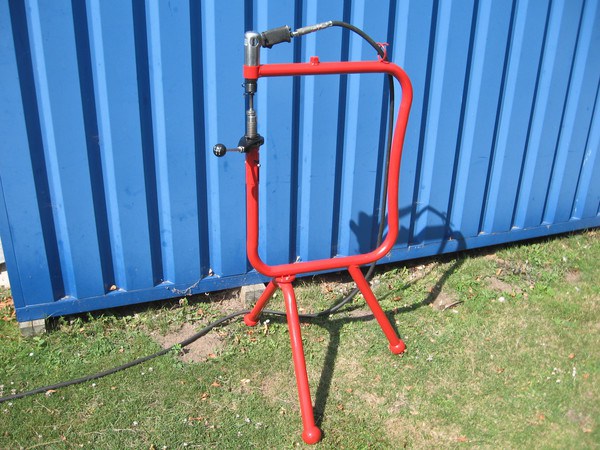

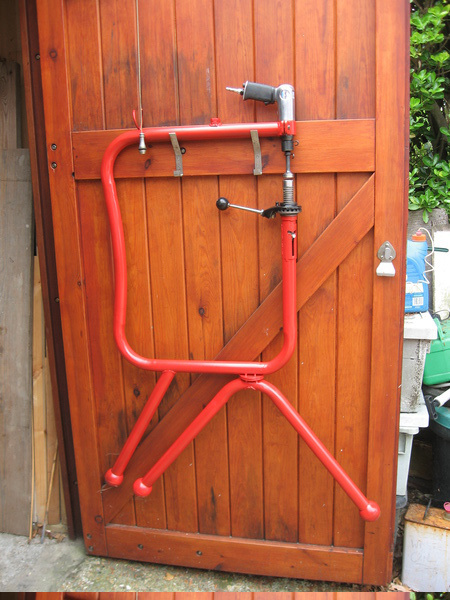

And a protable one ! (again not mine)

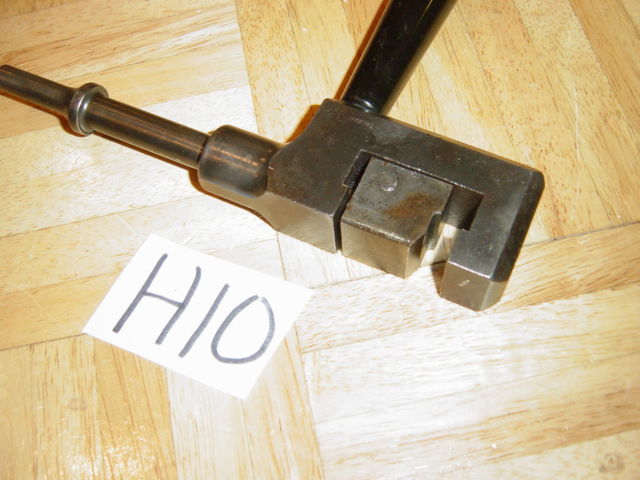

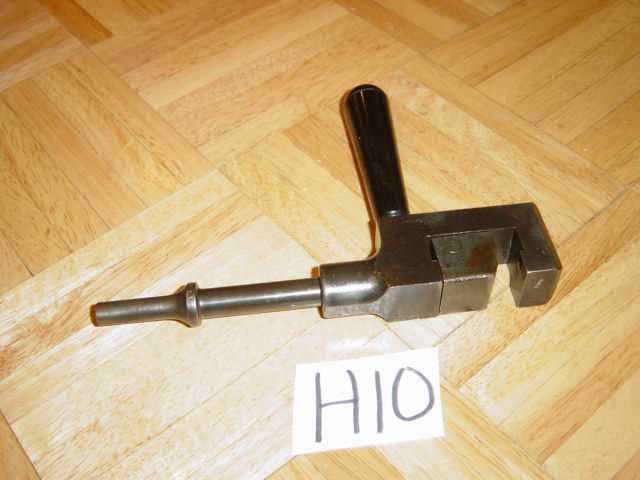

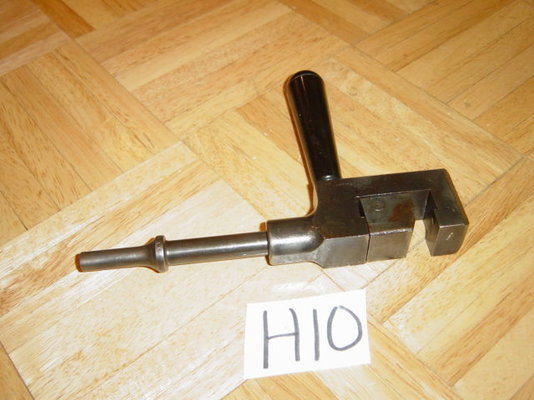

Plus bonus air tool pics



[jo1010]

I haven't built anything yet......was looking at this one the other day built from plate, will a heavier mass of the frame make a difference idk

..another project to join my growing wishlist



[6ply]

Has anyone built their own planishing hammer and dollies? I’ve seen the cheap ones for sale on eBay etc but always fancied making my own

Bear in mind those hammers are noisy! But I expect you know that already.



[mike 109444]

Bear in mind those hammers are noisy! But I expect you know that already.

WHAT !



[mcmental]

Bear in mind those hammers are noisy! But I expect you know that already.

Pardon



[Shedendman]

I haven't built anything yet......was looking at this one the other day built from plate, will a heavier mass of the frame make a difference idk

..another project to join my growing wishlist

On my build list also



[Chris152]

We've been looking into the same, using a cheap (Draper) air hammer we have. At full whack it's producing bout 3000 beats per minute, which is over double the dedicated planishing hammers I've found info on. And trying to get it to go slower is tricky - variable speed, but very hard to control.
Anyone tried a jig saw? We've got three of those, and easy speed controls.



[Seadog]

What about an SDS hammer drill?



[graffian]

I was told to use a riveter rather than an air chisel.



[pressbrake1]

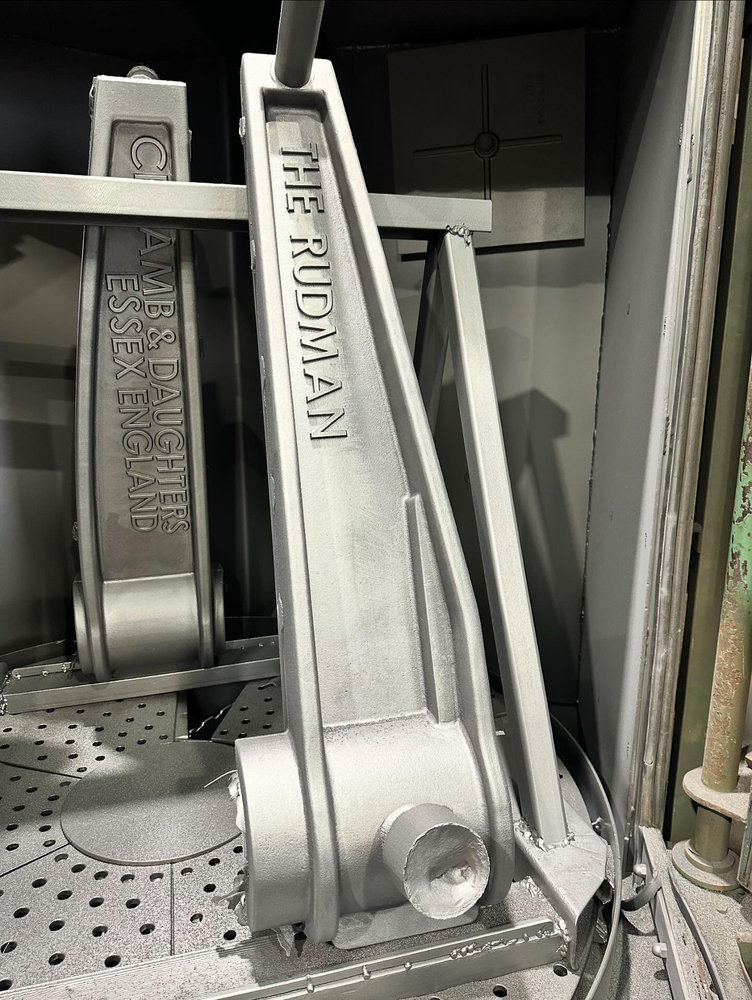

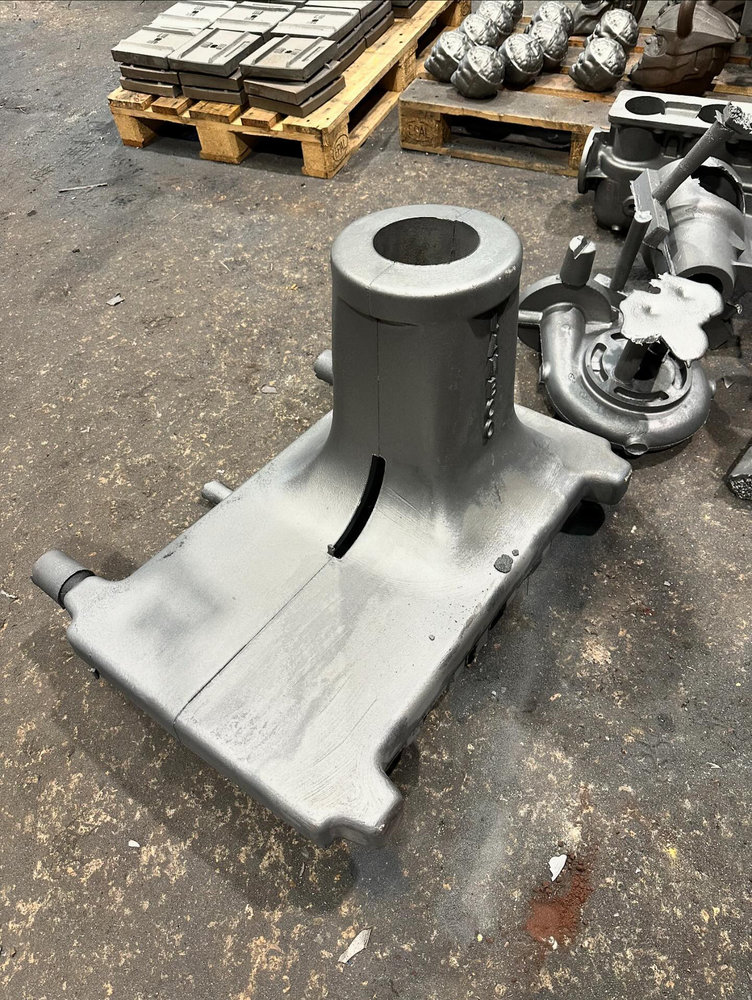

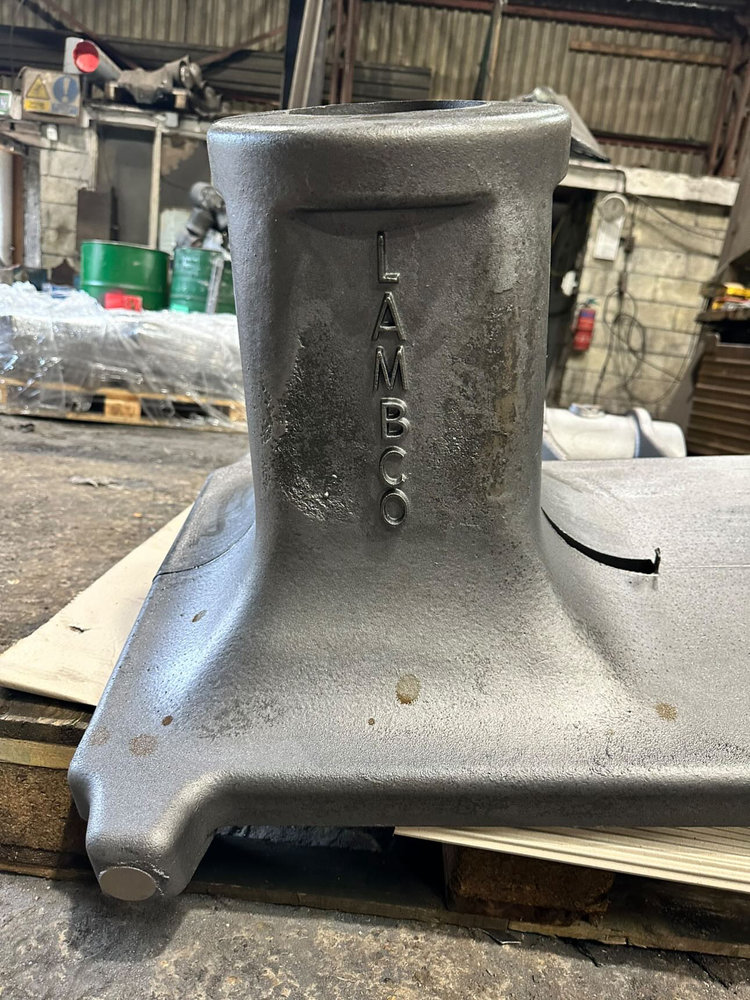

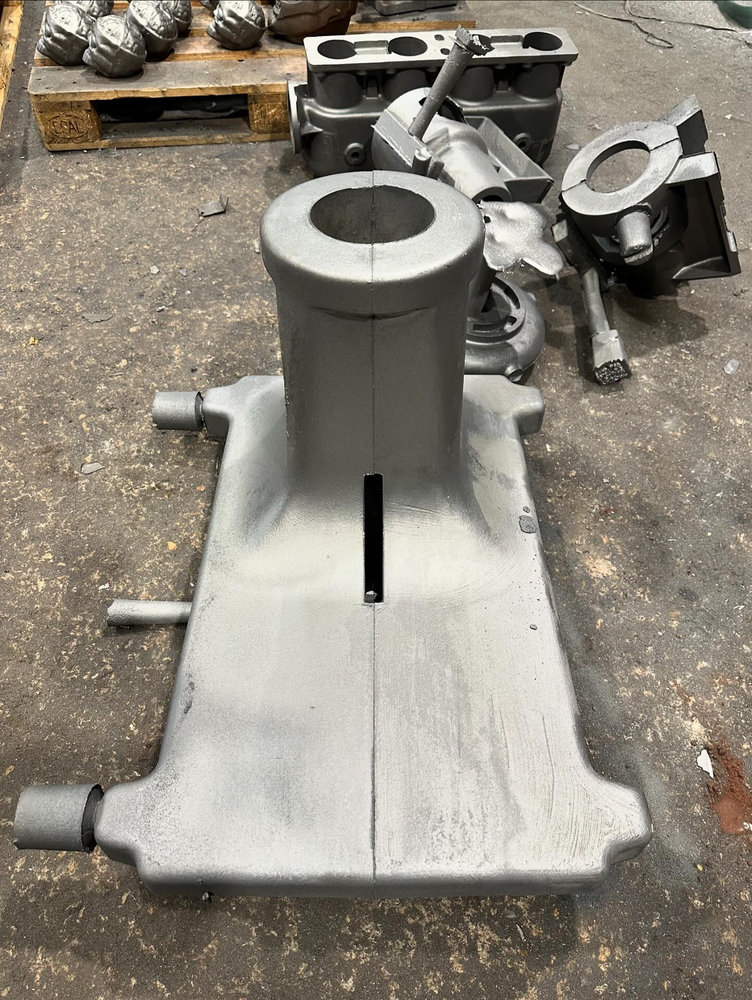

Somebody on this forum is going over the top again making one with a 40” throat and made from sg iron so it’s strong enough to be a beader and wheel . That idiot is me



[Seadog]

Don't put yourself down, Clive.



[jo1010]

...making one with a 40” throat and made from sg iron so it’s strong enough ...

that will be SPECTACULAR!



[pressbrake1]

that will be SPECTACULAR!

Thanks
Unfortunately foundry decided to considerably raise prices without notice . Just the base was over a grand so it’s a total flop



[Seadog]

I suppose that they have your patterns?



[Tom O]

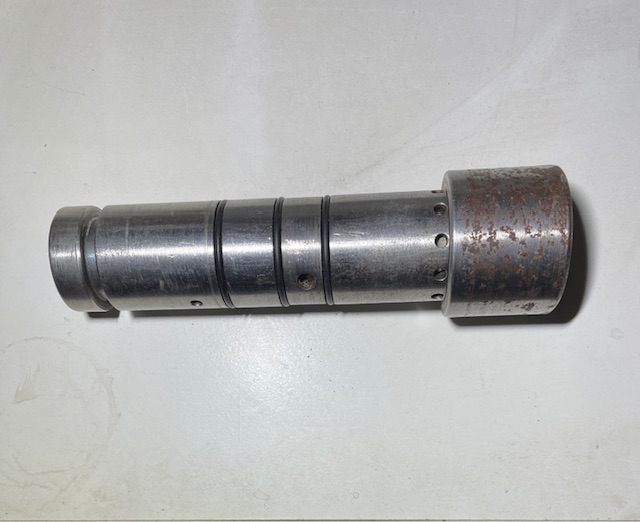

The hammer is easy I made one in a morning from scratch, I took an exploded view of one to get the measurements. I thought I had it on the phone but apparently not I’ll post a pic when I get home.



[Tom O]

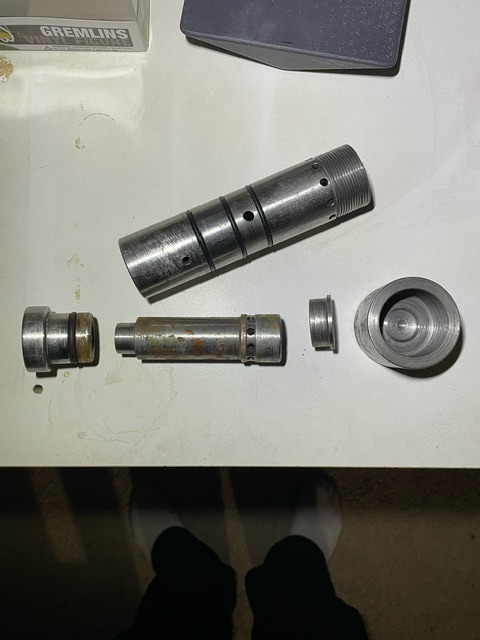

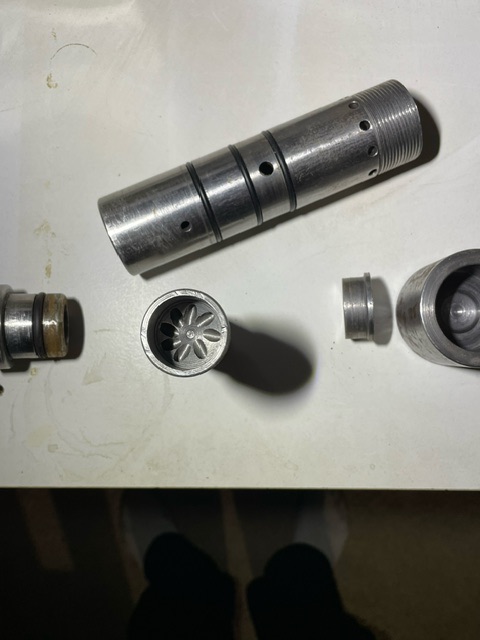

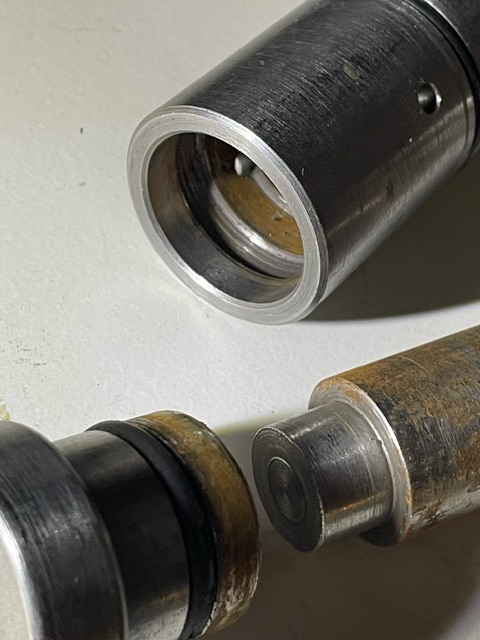

This one has a 1-1/2 diameter and is quite simple however it doesn’t have a way to lock the end cap on it the anvil is held in place by a O ring that pushes into a recess.



[pressbrake1]

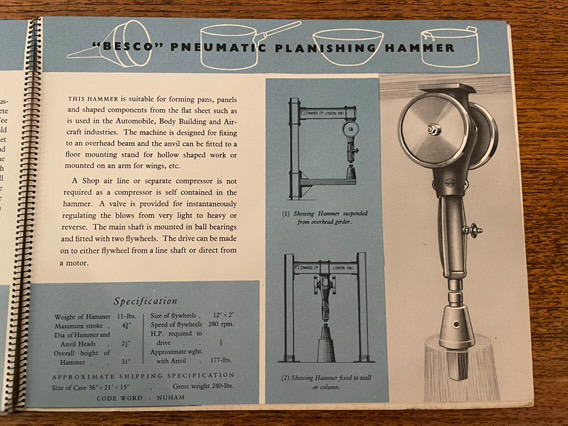

Edwards pneu/mechanical
