100EN help

[-Rebel-]

Hi All

My 100EN has stopped welding, the wire just glows like a lightbulb filament when I pull the trigger on the torch. I've already replaced the rectifier diode but still no joy.
After having the whole thing checked over by MM tech's they advised that I need a new PCB and a wire feed, but they want to charge me £85 to replace the parts. After paying for the rectifier diode and to have the whole welder checked out, I can't afford it.
I was wondering if anyone might have these parts kicking about as spares that I could maybe buy if they weren't needed.

TIA



[rtbcomp]

Does the wire feed out when you press the trigger without attempting a weld? If so, does the speed control work OK? Do you get the same symptoms on all the power settings?



[shenion]

Sounds like a bad connection.

Did they replace one diode or all of them? Usually there are 4 to 12 on a set of aluminum plates.

If it feeds, the PCB is fine.



[-Rebel-]

Does the wire feed out when you press the trigger without attempting a weld? If so, does the speed control work OK? Do you get the same symptoms on all the power settings?

Thanks for replying,

Yes, the wire feeds out ok when I press the trigger, the speed control works as well. Yes, same symptoms on all power settings.



[-Rebel-]

Sounds like a bad connection.

Did they replace one diode or all of them? Usually there are 4 to 12 on a set of aluminum plates.

If it feeds, the PCB is fine.

Thanks for replying,

I replaced the rectifier diode and there's only one diode sitting between the two plates.

Thanks



[shenion]

The manual shows two diodes.



[-Rebel-]

hmmm, the rectifier that I took off only had one diode and the one that I replaced has one diode. The replacement came from MM after quoting the model number and serial number to make sure it was the correct one



[the snooper]

i would be looking at all the connections from the earth clamp to the transformer and the same with the torch
also dont be fooled by a strong physical connection they can be as strong as an ox but have little or no conductivity i had on the same where the eath lead connected to the transformer.
if you have a multimeter set it to dc and test the voltage between the torch and earth clamp with the trigger pressed and repeat for each power setting



[shenion]

Post some pics of the rectifier assembly. There should be at least 2 diodes and 3 wires from the transformer according to the manual..



[-Rebel-]

Thanks for all the help, I'll post some pics after work tomorrow



[-Rebel-]

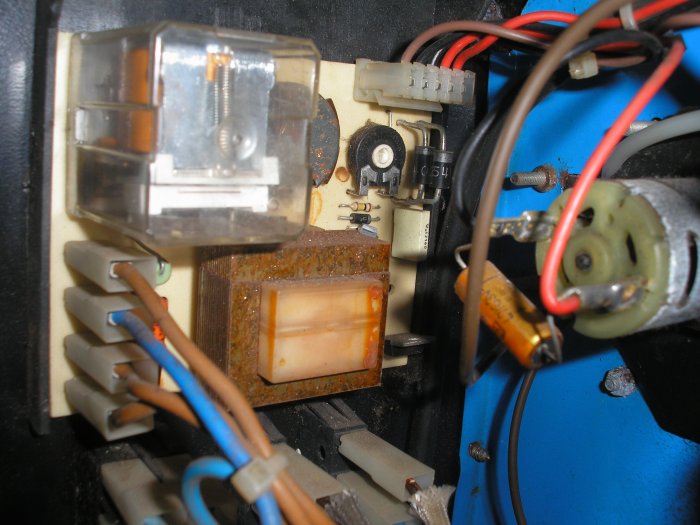

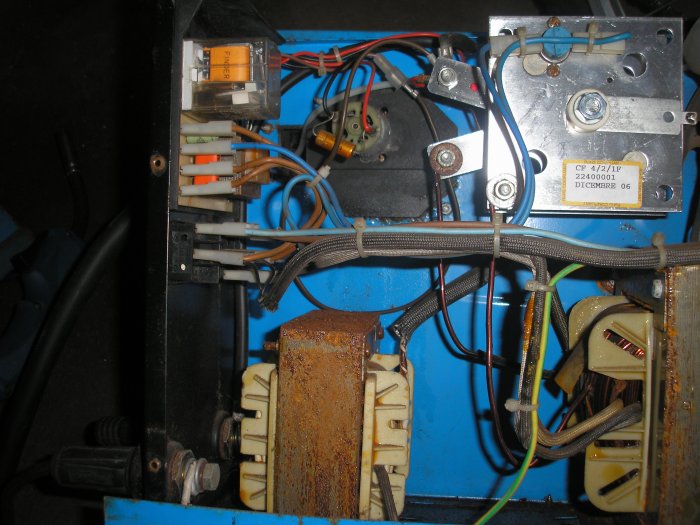

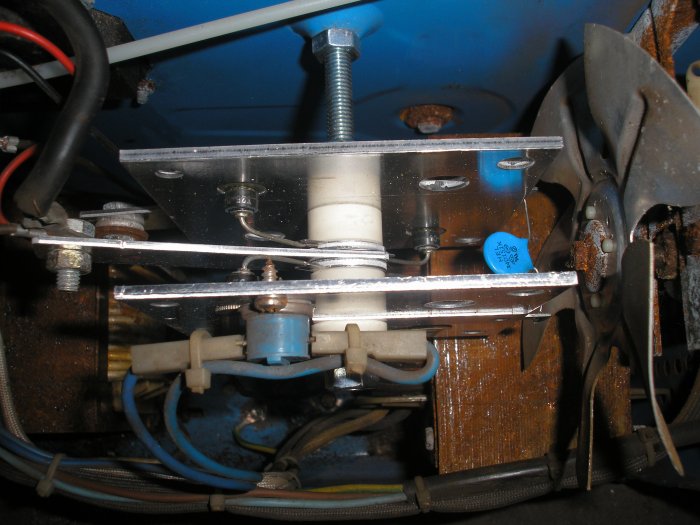

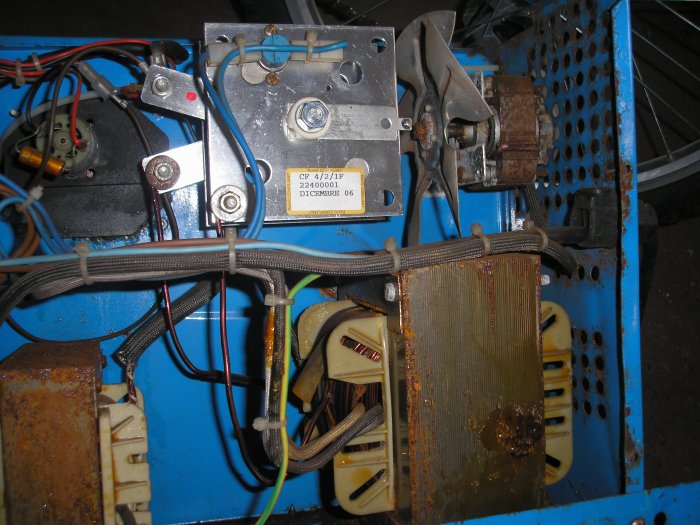

Didnt have a chance to get any pics until now. Hopefully these will help identify the problem

TIA



[shenion]

Must be some misunderstanding. There are 4 diodes in the pictures.



[the snooper]

he must be thinking the capacitor is the diode



[-Rebel-]

I might well be wrong in what I was thinking of as the rectifier diode, all I did was describe the problem and MM advised that I needed to replace the rectifier diode, they sent me the part and I fitted it



[the snooper]

as you have replaced the rectifier and you get the exact same symptoms no matter what setting i still say its a bad connection from the welding transformer output go through them take them apart clean them and re connect



[shenion]

Yes, those connections look all corroded. Lots of rust inside. I'd clean those connections.

Could be a break in the main transformer.

Really, you will need a meter to test further.



[-Rebel-]

Thanks for all the help, I'll check and clean everything and get back to you all
