Bosch 1/4" Router

[Onoff]

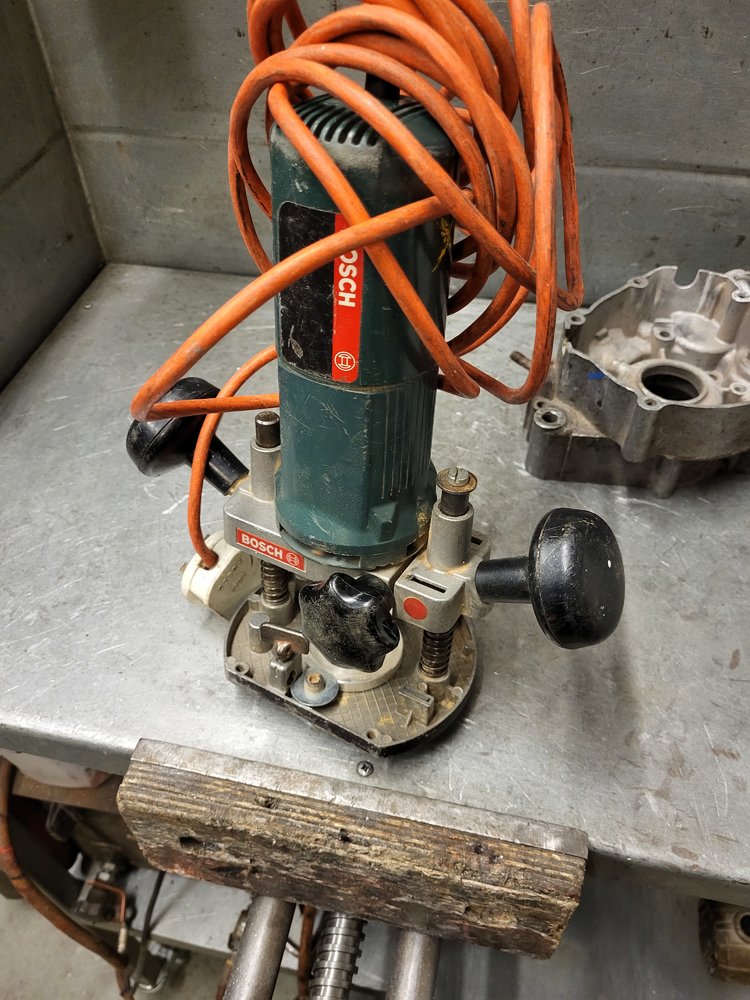

Little Bosch router here, rather unloved. Is there like a ball bearing or something that sits between the end of the bolt sticking out of the handle and the shaft? Lost whatever it was in there.

https://flic.kr/p/2p9TfmU

https://flic.kr/p/2p9VFiC

https://flic.kr/p/2p9V4fu

Lost a handle too but my 3D guru is drawing a couple of new ones up. Green PETG I'm thinking with an M8 bolt epoxied in.



[Fazerruss]

The handle on the left screws in and stays in. The right one nips on to the shaft to lock the height of the router with respect to the base.



[Fazerruss]

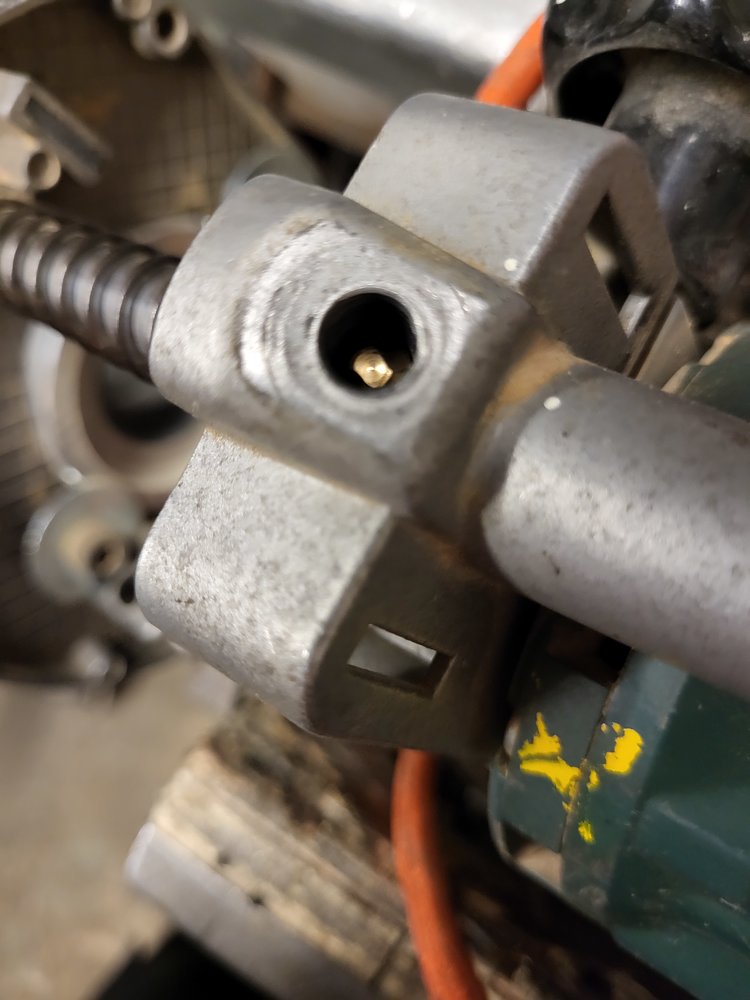

There is a brass plug inside



[Fazerruss]

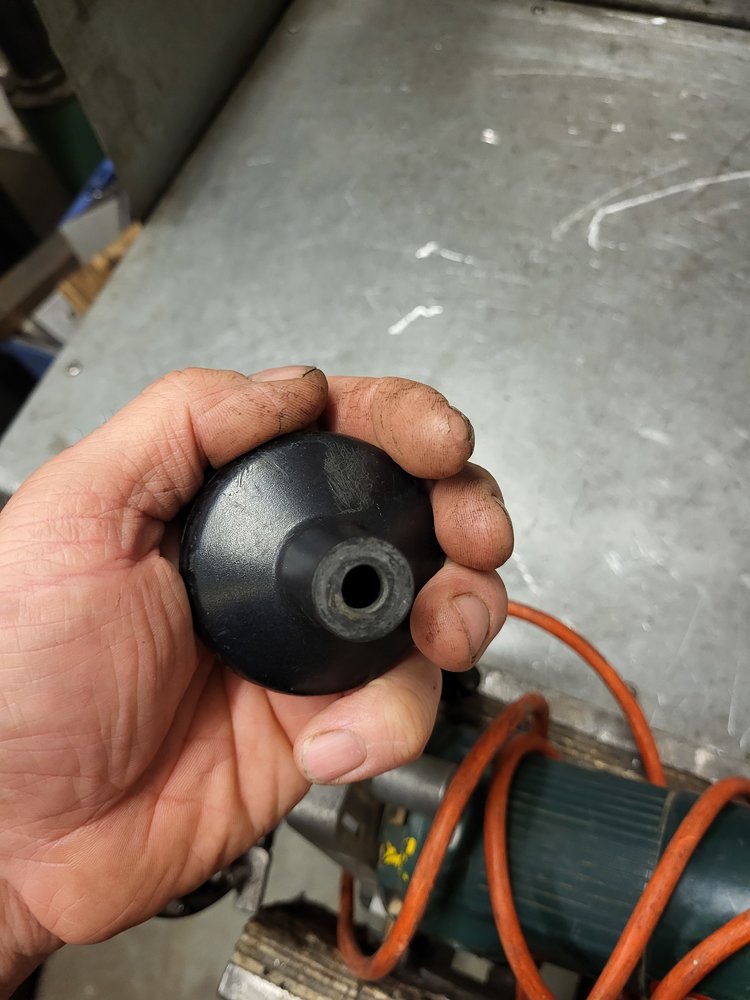

And now I hate you because the bolt has disappeared inside the knob!



[Onoff]

And now I hate you because the bolt has disappeared inside the knob!View attachment 421693

When you get it out, take a photo please!



[hotponyshoes]

Bosch POF 500 A / 0603261863 / CH 230 Volt Spare Parts | Miles Tool & Machinery Centre

An exploded drawing and listing for the Bosch POF 500 A / 0603261863 / CH 230 Volt

www.mtmc.co.uk

Any use?



[Onoff]

Bosch POF 500 A / 0603261863 / CH 230 Volt Spare Parts | Miles Tool & Machinery Centre

An exploded drawing and listing for the Bosch POF 500 A / 0603261863 / CH 230 Volt

www.mtmc.co.uk

Any use?

Spot on, thanks! Looks like I need part 212 the Pressure Spindle.



[hotponyshoes]

A handle is less than a fiver as well...



[MattF]

A handle is less than a fiver as well...

That may be good news for @Fazerruss.



[Onoff]

A handle is less than a fiver as well...

A fiver?

When I've the man child sat there doing nothing?

It's being printed.



[Agroshield]

And now I hate you because the bolt has disappeared inside the knob

Magnet superglued to a bamboo skewer will retrieve it.

Once you have it back and the head located in its recess to stop it spinning, drill a tiny hole in the handle and drip in some superglue to keep it there.

Alternatively, screw a next-size down fibre washer onto the bolt threads and then the bolt cannot disappear again.



[Onoff]

And now I hate you because the bolt has disappeared inside the knob!View attachment 421693

The knob on mine has a clip on top.



[Fazerruss]

The knob on mine has a clip on top.

It's OK, you're off the hook. With a gentle bit of shaking the bolt dropped back down and I screwed it straight back on.
Don't ever ask me to remove it again!

For part number 212 you could just use a small off cut of any metal softer than steel. The brass slug is there just to stop the locking bolt cutting in to the shaft.
Even a bit of hard plastic may work.



[frank horton]

In the past have used a 22 slug pellet dropped in the hole as a lock for shafts like that.....
the rear carriage hyd locks on my 3CX use to come loose, so drilled a hole in the nut taped it out and used a grub screw with another 22 slug....never vibrated loose again....
orig they were loctited on but to get em off was a nightmare.......



[DAPPH]

When you get it out, take a photo please!

The brass plug is to allow screw clamping with out marking thhe shaft



[DAPPH]

The knob on mine has a clip on top.

Usually tap a rod down the hole and the cap will come off allowing you to super glue the bolt in place& replace the cap .



[Onoff]

New knob design printed in PETG with a knurled edge. I'll get my lad to do two so a matched pair. There's an M8 bolt screwed up the middle that I'll cut to length and threadlock in. Just got to cut a bit of brass rod or find my airgun pellets!

https://flic.kr/p/2paep1v

https://flic.kr/p/2paep2s

https://flic.kr/p/2paep2H



[DAPPH]

Serviced an Elu 1/4 shank router circa 1997 tonight
The locking screw handles have a small pointed shouldered brass insert that is pushed into the hole in the bolt end . The end that touches the ram is where to pointed end goes it does not mark the ram where as a steel screw will.

I think that is what your router needs . Give me a day or so & I'll turn up a pair of brass inserts for you if you tell me the size of the hole in the end of the original screw lock bolt ( use a twist drill to discover the size ) .
The brass plug is a tight fit in the end of the screw thread of the adjuster bolt so it will move back and forth , not slip out and go cross wise in the bolt hole of the adjuster .



[Onoff]

Give me a day or so & I'll turn up a pair of brass inserts for you if you tell me the size of the hole in the end of the original screw lock bolt ( use a twist drill to discover the size ) .

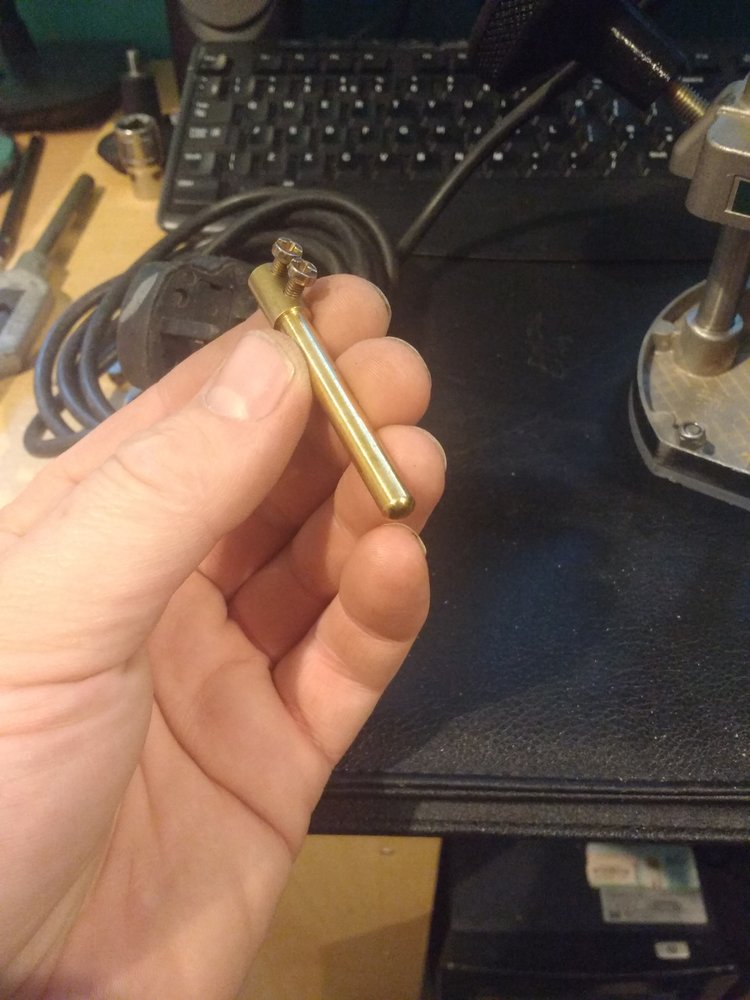

Thank you. I think there is supposed to be just one insert, under one locking knob. The threads are M8. I've found a 6mm dia brass pin from a commando plug that I can cut the already rounded end off of to make one.

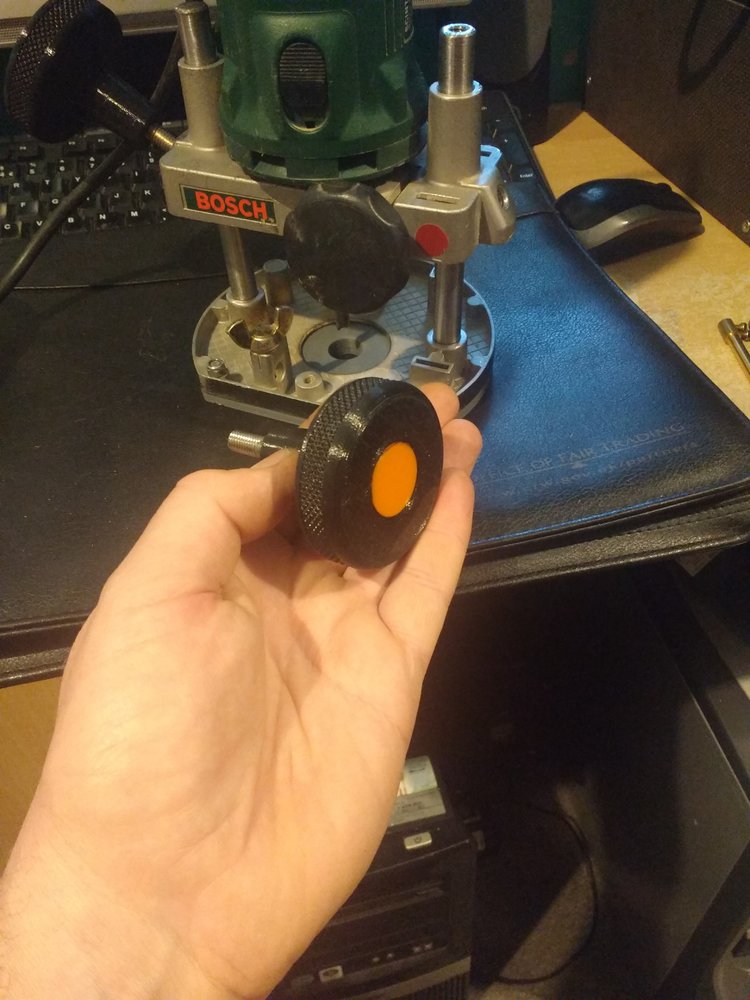

I recall, when using it, that I would always be undoing the fixed handle. I've had my lad print a bright orange end cap insert so I know which one to adjust. It's now superglued in.

I've also cleaned the shatfts up. Could do with 2 new springs really.



[DAPPH]

Good to hear it , the ELU I have has both side handles as locking devices. Both pointed brass pins are 9 mm long poking out the screw thread .

Unless the springs are really soft leave them alone as it gets tiring having to push down hard on strong springs for plunge cuts
, so long as the springs reassert gently all is good .
When printing knobs that retain nuts or bolt heads print a few mm above the hexagonal and use a hot iron to melt the lip over the nut / bolt head whilst the thread is held in a rotating chuck etc .

Had to smile about the colour code . Surely t'would have been better to have an orange band around the perimeter of the knob so you can see it easier ,.
