Frame for CNC machine ?

  1. flanajb Member

    Hi,

    I am planning on building my own cnc router and would appreciate some thoughts.

    The frame I am trying to make is the same as that shown in the picture, but I am unsure what dimension square tube to use. I was thinking of 80 * 80 * 5mm for the legs and then 100 * 50mm * 5mm for the horizontal sections ?

    [​IMG]

    The machine bed will be 10' * 5'. The machine in the picture weighs 1600Kg

  2. scott0031 Member

    Posts: 641
    England Kent
    Your best bet is to go here.

    http://www.mycncuk.com/forums/forum.php


    These are guys who have been there, done it, or are doing it. A lot better than the general guys here speculating what is best. The proof is in the pudding, the guys on that forum have the real knowledge based on fact.


    I wish you luck with your project and would love to see it's progress.



    My kind regards,


    Scott

  3. flanajb Member

    I will post there. Thanks

  4. astro_al Rocket Scientist

    cnczone.com

    Al.

  5. Wedg1e

    Wedg1e Lord of Huckenbove

    Posts: 2,803
    Teesside, England
    I built a frame to support a lead shielding enclosure for irradiating rodents, it was 80x80x5mm mild steel... the thing weighed 1100Kg complete so I wouldn't think you'd be a kick in the pods off.
    Looks like that router above uses NSK-style linear slides; I use them with 25mm rail on some of my projects, bloody expensive things! Last ones I got were from Zapp Automation I think.
    I'm currently building some lifting mechs with round guided rail for a change, haven't used it before so will be interesting so see how it compares to the square linear rail.

  6. shedfull Member

  7. Angusdog

    Angusdog Well-meaning amateur

    Posts: 723
    Wellington, NZ
    Pics please.... ;) or more details.

  8. Wedg1e

    Wedg1e Lord of Huckenbove

    Posts: 2,803
    Teesside, England
    Hmmm, are you trying to compete? ;)

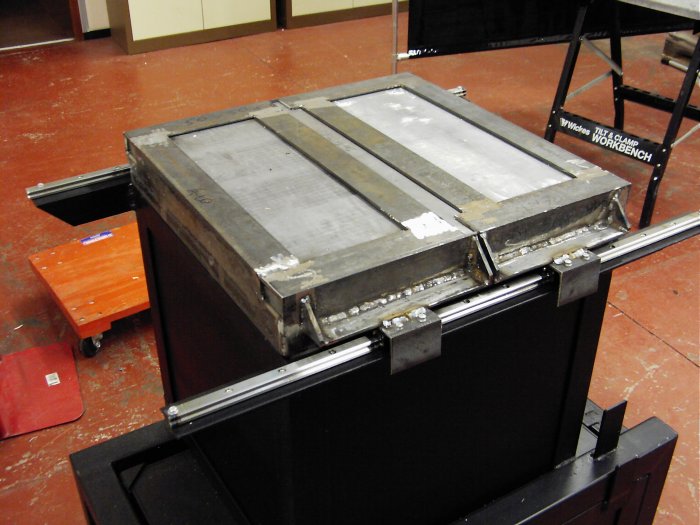

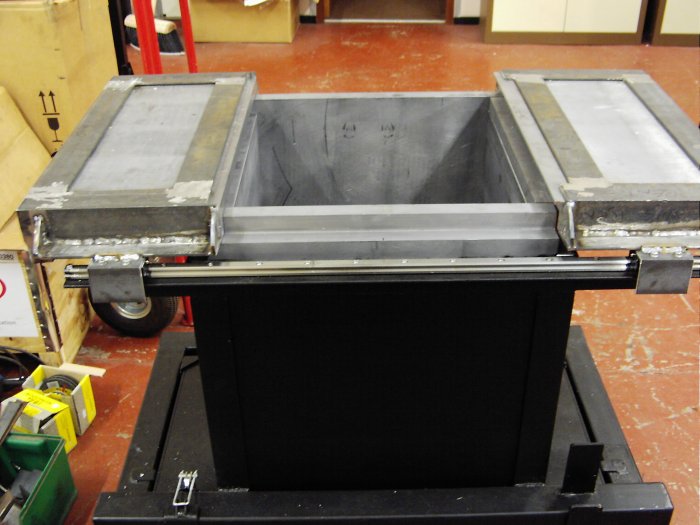

    This is one of our top-loading designs, the first couple were front-loaders and had the 80x80 frame - I think this one is 60x60mm.

    The lower chamber with the hinge-down door contains a bipolar x-ray tube with enough power to poke through, as I recall, 40mm of steel.

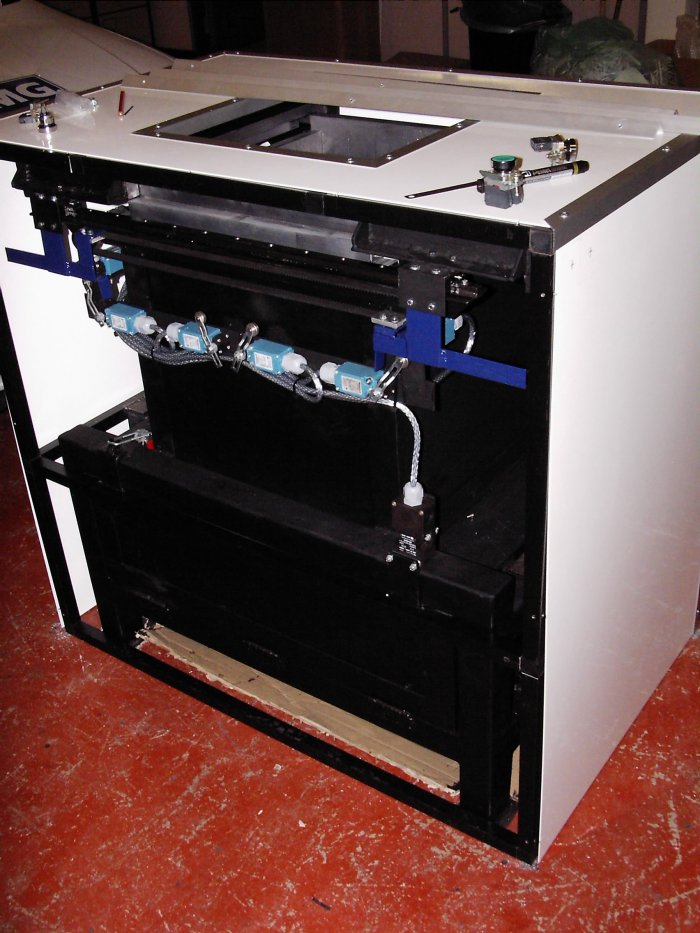

    All the roller-lever switches are interlocks so you can't start the set with the doors open. This particular unit was a 'budget' build and didn't use the touch-screen computer control of the others, nor were we about to supply the purpose-made stainless steel cabinet of earlier units! This cabinet is 25mm box with knock-together corners, clad in 0.8mm powder-coated steel sheet which acts to make the frame rigid.
    Open doors, insert rats, shut doors, select parameters from exposure chart showing dose required, press go :D
    In use at a UK university for cancer research, along with a few others similarly sited, plus one at a large pharmaceuticals company.
    Some of the welding isn't pretty but hey, I'm an electronics techie :D
