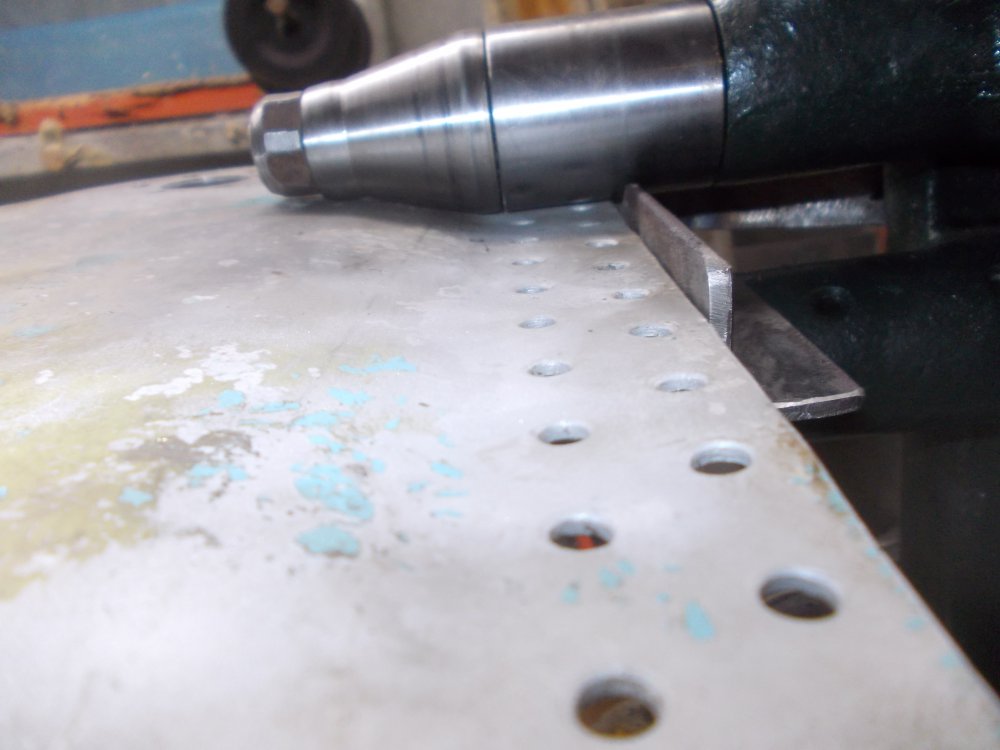

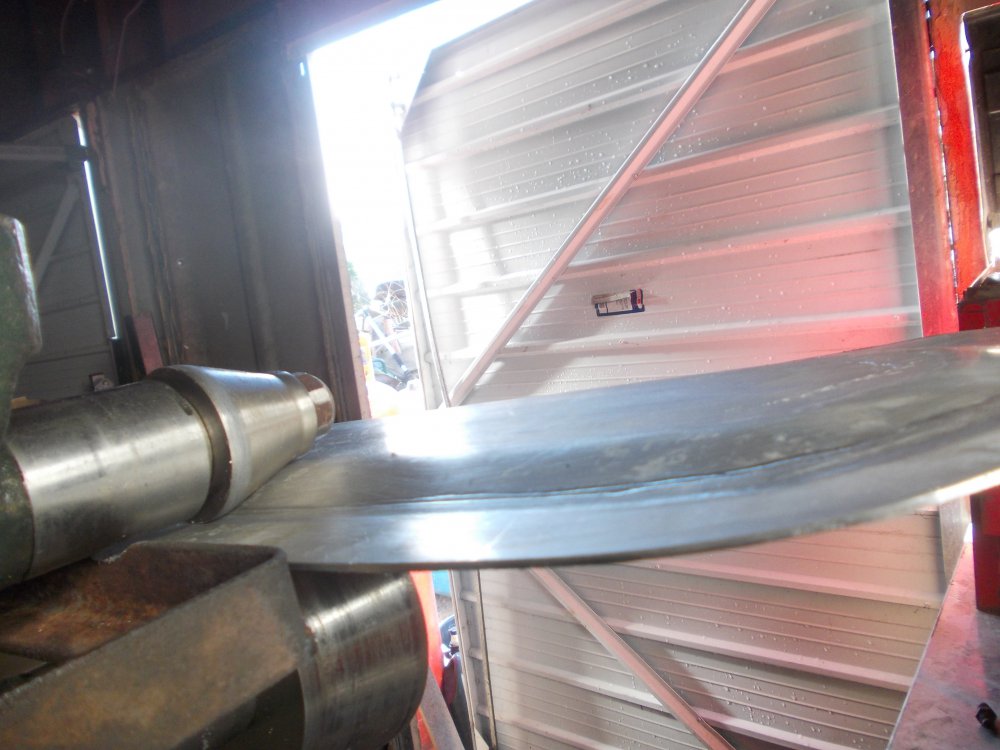

I put the panel into the door in that photo. It puts a joddle into the edge of the panel if you hold the piece flat or folds the edge for wire if you let the panel curve upwards.
Same tool as in the 4th photo from 'Mike 109444' above. (Also last-but-one from left in his first photo)

I seem to recall it having 7/8 bore for the 'wheels' but I'm not sure. Still recovering from spinal surgery so not permitted to visit the workshop by my wife. Could maybe get her to photograph/measure if you need it?
Slightly rounded edge to the top wheel and, if I were making another, a few different bottom wheels with bigger staggers in the diameter for thicker sheets. Shimming the top wheel outwards would permit bigger radius bends. Unlike most people on here, I don't know what I'm doing but am always learning as I go.



Hope this helps

Rob.

PS Welcome to come by anytime to have a look if you are nearby. CF61 2GS
PS I have to go to Chepstow sometime soon. Not too far away?



[mike 109444]

Think it's refereed to as a tipping roller. By lifting the metal as you feed through it tips the edge. If you say had a strip of steel the curved shape of a wheel arch and wanted to form the lip then you could "tip" it following the curve. Recommendations for operating the machine is to make or find a wheel (old steering wheel) to replace the handle as it allows more controlled feeding and/or adding a geared motor!



[lotus 30]

I put the panel into the door in that photo. It puts a joddle into the edge of the panel if you hold the piece flat or folds the edge for wire if you let the panel curve upwards.
Same tool as in the 4th photo from 'Mike 109444' above. (Also last-but-one from left in his first photo)

I seem to recall it having 7/8 bore for the 'wheels' but I'm not sure. Still recovering from spinal surgery so not permitted to visit the workshop by my wife. Could maybe get her to photograph/measure if you need it?
Slightly rounded edge to the top wheel and, if I were making another, a few different bottom wheels with bigger staggers in the diameter for thicker sheets. Shimming the top wheel outwards would permit bigger radius bends. Unlike most people on here, I don't know what I'm doing but am always learning as I go.

Thanks for the help yes just off the A48 I need to do a trip to you and clarky31 as he is in barry sounds like a learning day is coming up sorry to hear you have been laid up let me know when you are out and about. and i will arrange a trip i will bring my own paracetamol as i will have a head ache when the day is done LOL.



Hope this helps.

Rob.

PS Welcome to come by anytime to have a look if you are nearby. CF61 2GS
PS I have to go to Chepstow sometime soon. Not too far away?



[clarkey31]

yeah as about used for putting a return on a curve but can also be used put an embossed pic or writing in a panel like this



[lotus 30]

yeah as about used for putting a return on a curve but can also be used put an embossed pic or writing in a panel like this

Think i may be a day or so before i get to that level nice



[lotus 30]

This is what i want to make it's a heat exchanger for my old albatross boat it rivets (200 OF THEM PER SIDE) to the hull and the engine cooling water flows through and the heat is given off to the water you are boating in. Should i do one swage at a time the tool i have made will do both at once i need some one to help me one to wind and me to position the material it is 2.5mm ali i have annealed it waiting for a mate to help do you think this will work i don't really want to scrap the a lli as its £120 a sheet in the grade i use on the boat.



[cardiffrob]

Ooooooh, Albatross. What engine do you have in it?



[lotus 30]

Blimey I am amazed how many people know about Albatross boats. I have restored one continental with climax motor. swore i would never do another then a continental hull came up cheep so that is the one i want to make new heat exchangers for.



[cardiffrob]

I've got a rebuilt 948 BMC Vedette boat engine/box/shaft that I was going to butcher for a car engine. Too small?



[lotus 30]

to heavy climax is all ali i have a spare one for the second boat.



[lotus 30]

I have made the mk 1 not to bad but i think i can make the second one better only used old ali to test my jenny and the tools i made quite pleased for a first attempt at anything like this.



[Wendelspanswick]

If you can get hold of an electric motor from a stairlift you can fit it to your jenny and make it a one man operation.
2nd page about halfway down.
http://www.mig-welding.co.uk/forum/threads/motorised-bead-roller-help.40925/page-2#post-453631



[lotus 30]

If you can get hold of an electric motor from a stairlift you can fit it to your jenny and make it a one man operation.
2nd page about halfway down.
http://www.mig-welding.co.uk/forum/threads/motorised-bead-roller-help.40925/page-2#post-453631

Thanks for that i was thinking of using a 24 winch motor i have but don't use i will have a look at that tomorrow.



[shed or dead]

Thanks for that i was thinking of using a 24 winch motor i have but don't use i will have a look at that tomorrow.

Industrial sewing machine motors are also good if down geared using chain and sprockets, this way you can get easily use the existing foot pedal for speed control. Or, use a Parvalux to be really heavy duty.



[optima21]

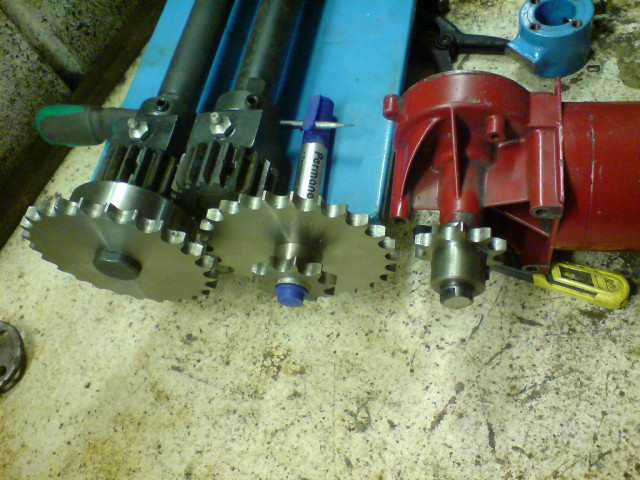

ohh Im currently electrifying one using a geared 12V dc 70 rpm motor. I going for the chain and sprockets for speed reduction, using 1/2" bs chains and 10 and 25 tooth sprockets. after remachining the bores, this is where
I stopped tonight, just mocked up to show rough positioning of the sprockets as I dont think the marker pen will be strong enough to work for a spindle

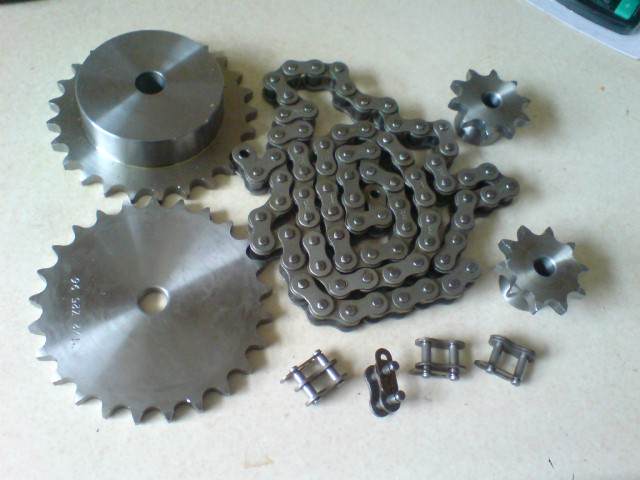

the chain and sprockets came from

http://www.beltingonline.com/

and got a 20 amp pulse width modulation speed control in the post all the way from china today off ebay

http://www.ebay.co.uk/itm/201209165239

how do they do it for the price, its not even worth attempting to make your own at that price, but I havnt tried it yet.



[lotus 30]

how do they do it for the price, its not even worth attempting to make your own at that price, but I havnt tried it yet

I know what you mean it makes me nervous because it is so cheep you have to wonder at the quality looking good though



[lotus 30]

This is what i have done today and it runs fine nice and slow 24v winch that i don't use.



[lotus 30]

Finished it off today wired it and fitted a foot pedal, the solenoid was still on the winch it also has a clutch which will be quite handy so i don't overload the motor it works well. i shall fold up a box tomorrow and fit it between the motor and jenny to store the formers in.



[Wallace]

I was looking at the cheap 240v hoists stripped down for a power source instead of a 12v winch, not sure if the motor is the correct type to be run from a PWM though. Thought I might get one with the intention of being a 'loft hoist' as an excuse then strip it down to see if it's any good!



[lotus 30]

I was looking at the cheap 240v hoists stripped down for a power source instead of a 12v winch, not sure if the motor is the correct type to be run from a PWM though. Thought I might get one with the intention of being a 'loft hoist' as an excuse then strip it down to see if it's any good!

PWM ???
