Trefoil plans wanted

  1. Lazurus

    Lazurus Member

    Messages:
    620
    Location:
    Norfolk uk

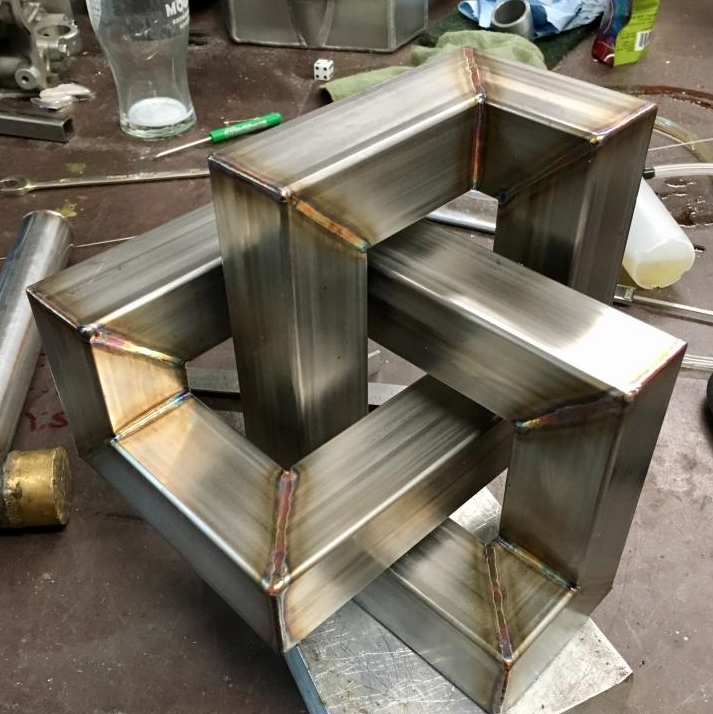

    As a project in accurate cutting and welding practice I would Capture.PNG like to do a Trefoil Knot, has anyone got any simple plans or cutting list to give me a start?

    mpats, Country Joe, optima21 and 2 others like this.
  2. frank horton

    frank horton V twins are great but 4"s rule.........

    Messages:
    1,420
    Location:
    Soon 2 B Crete
    sorry no but loads'a fun finding out......
    how u'd draw it out in cad would also be amazing....
    I'm just a caveman at heart.....
    NICE work

  3. minimutly Member

    Messages:
    464
    Location:
    Pembrokeshire Wales
    Like the empty beer glass...

  4. hotponyshoes Member

    Messages:
    1,509
    Location:
    Somerset. Uk
    I think I have got one in sketchup that one is when I was figuring out how to use it if that's any use?

    I think the hard part will be working out the weld sequence though!

  5. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland

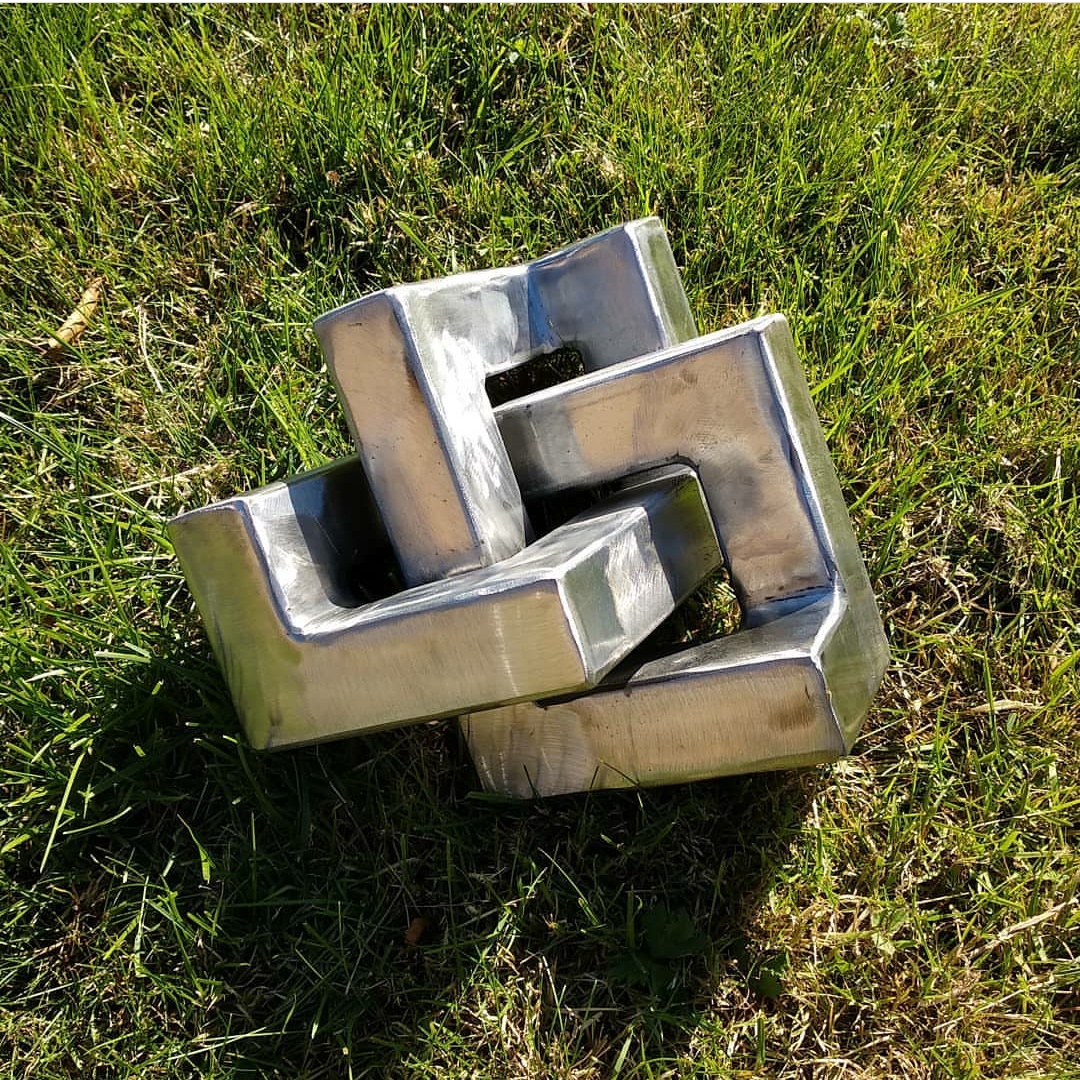

    I can help, made one ages ago. Walking dogs at moment, will get back to you later in evening. Screenshot_20190315-173435-01.jpeg

  6. slim_boy_fat

    slim_boy_fat Forum Supporter

    :thumbup: They look like they'd use a fair amount of material, size dependent of course.

    @Tangledfeet Any chance you could copy me in on the file(s)? A fellow can never have too many projects on the go.....:ashamed: :laughing:

    Parm and Tangledfeet like this.
  7. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland
    So, Friday night and I'm sat at my laptop drinking making CAD drawings whilst Innis & Gunn and eating cheese puffs... the things I do for folk! :hug:

    Parm, daleyd, Anguz and 1 other person like this.
  8. slim_boy_fat

    slim_boy_fat Forum Supporter

    Sorry, I thought you had the files already and didn't intend for you to go to that much trouble on my account. :ashamed: :ashamed: :hug:

    I just thought it'd be a :cool: thing to have, possible mounted on a hardwood stand to display in the house. or even scaled up to have in the garden. :)

    Tangledfeet likes this.
  9. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland
    LOL - Ach, nae problem! Only took one can and ten minutes or so. People did say one for the garden would look good... Corten steel, perhaps?

    Done, thought I had a drawing but couldn't find it - had the parts modelled at work so had to log on and email them to myself. I made it from 40mm square so it wasn't huge. If I was doing it again I'd increase the spacing between the parts (there's only three parts, three of each needed) to make welding and assembly easier.

    Lazurus likes this.
  10. Ruffian Member

    Messages:
    1,806
    Location:
    Devon UK
    Looks like 6 of the browns?? Or is that just an optical illusion??

    Would be awesome to have one for a paper weight on a small scale, (20mm boxish)

    Tangledfeet likes this.
  11. outofthefire

    outofthefire Member

    Messages:
    2,074
    Leeds
    In my opinion the cad drawing makes it look more complicated than looking at the original photo.

  12. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland
    Yes, sorry; you are correct; I should've put a BOM in and let Inventor do the counting for me!!!

  13. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London

    Ooh a challenge. That looks like five minutes in sketchup.

    Gonna try and do it now...

    Tangledfeet likes this.
  14. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London
    [​IMG]

    Done

  15. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London
    Damn. 9 minutes? Had to get off the sofa fire up the works, snapshot upload and post it though...

  16. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London
    Bit tidier.

    [​IMG]

    I'll deconstruct it, looks like only three components...

    Lazurus, Bullet2012 and Tangledfeet like this.
  17. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland
    Yup, it was a face/palm moment when I realised that!

  18. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London
    Three components, as shown.

    [​IMG]

  19. Screwdriver

    Screwdriver Member

    Messages:
    5,267
    UK London
    ..and to complete the set, you can project textures from photos.

    [​IMG]

  20. Tangledfeet

    Tangledfeet Forum Supporter

    Messages:
    1,123
    Location:
    St Andrews, Fife, Scotland
