I'm using spare parts. I don't wish to buy anything else.
I've just bought a two speed motor, it's single phase.
I have a Schneider Reversing Contactor, a Schneider two position switch (2NO contacts), a Schneider start stop switch (1NO & 1NC), and a 24V psu.
Now my simple mind has come up with a few solutions but I'd rather run as few wires as possible .

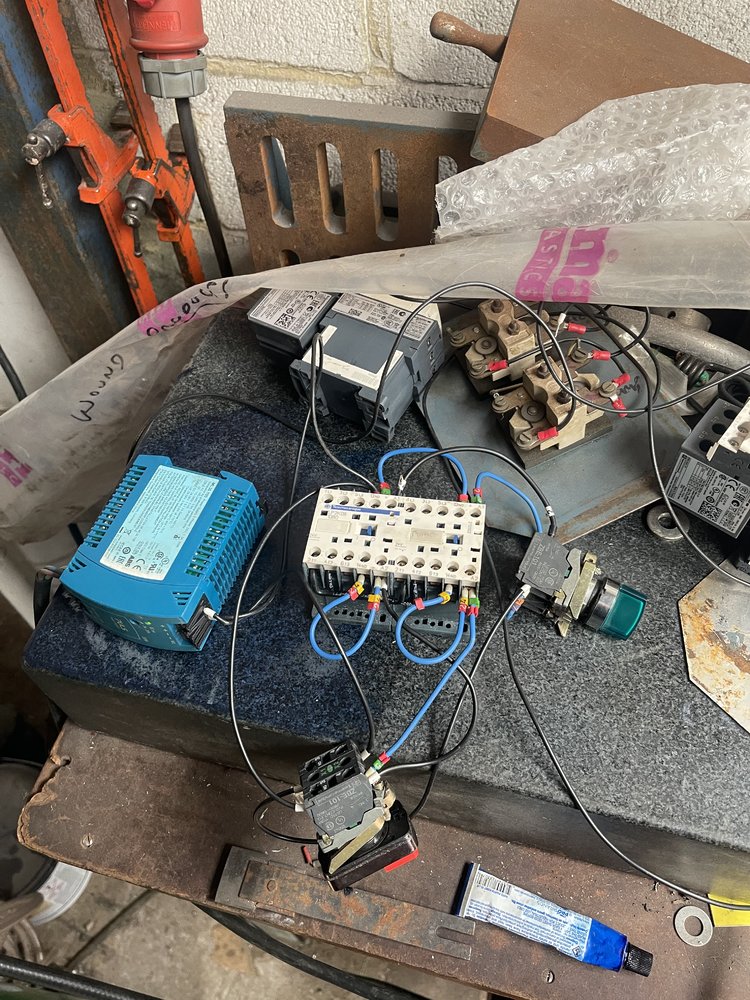

The method photo'd below worked.
But it's not a very neat solution.
Does anyone have a proper diagram of the simplest way to do this?
I was running the existing motor on a three wire control. + From PSU up to the NC switch, NC switch down to contact 14, contact 13 jumped to A1, NO switch jumped
From NC switch to A1, - negative from PSU to A2
I've just bought a two speed motor, it's single phase.
I have a Schneider Reversing Contactor, a Schneider two position switch (2NO contacts), a Schneider start stop switch (1NO & 1NC), and a 24V psu.
Now my simple mind has come up with a few solutions but I'd rather run as few wires as possible .
The method photo'd below worked.
But it's not a very neat solution.
Does anyone have a proper diagram of the simplest way to do this?
I was running the existing motor on a three wire control. + From PSU up to the NC switch, NC switch down to contact 14, contact 13 jumped to A1, NO switch jumped
From NC switch to A1, - negative from PSU to A2
