Press using 10 ton ram and pump.

  1. Ton-up

    Ton-up Member

    Messages:
    1,259
    Location:
    Essex, England.
    @slim_boy_fat

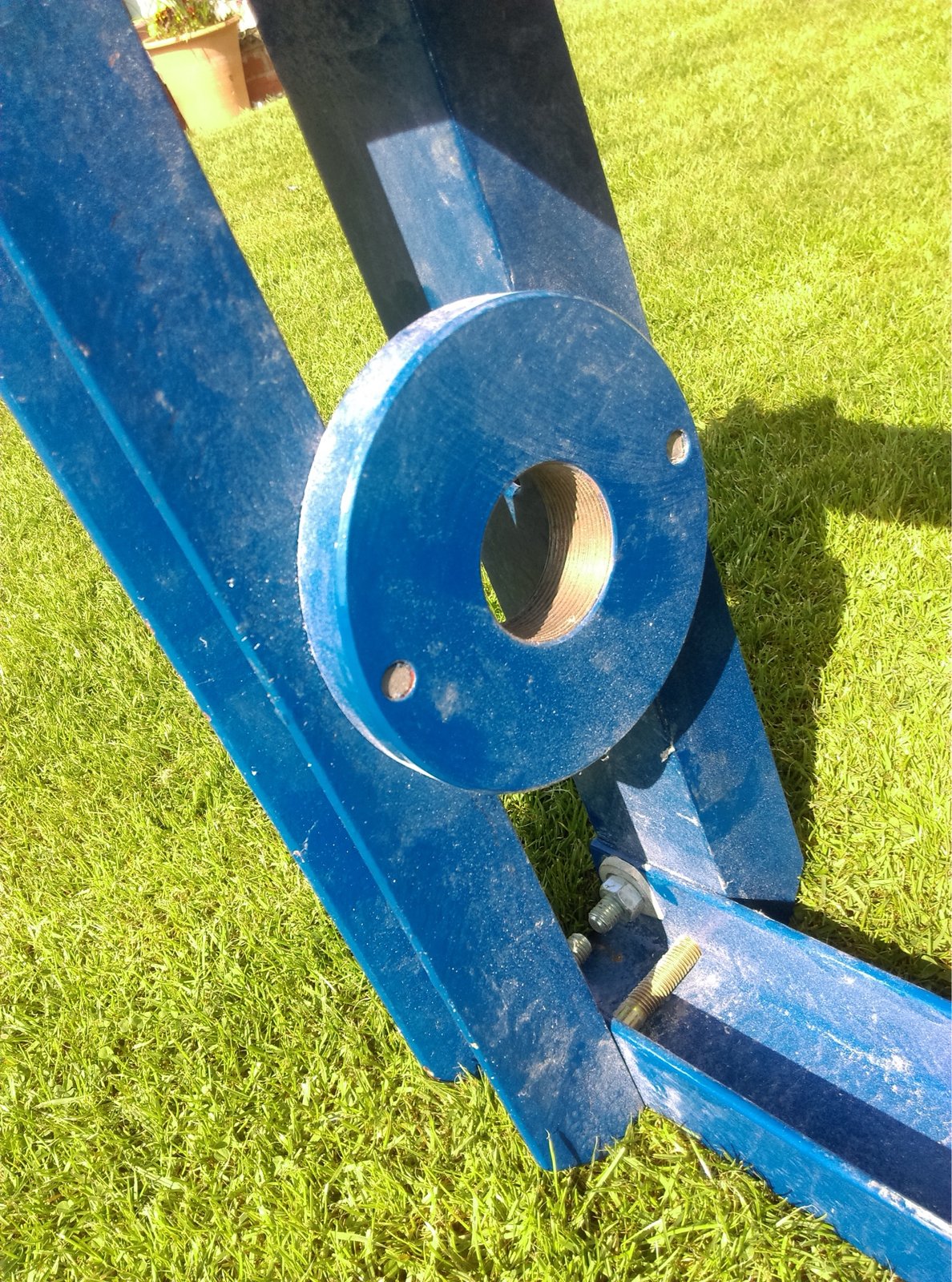

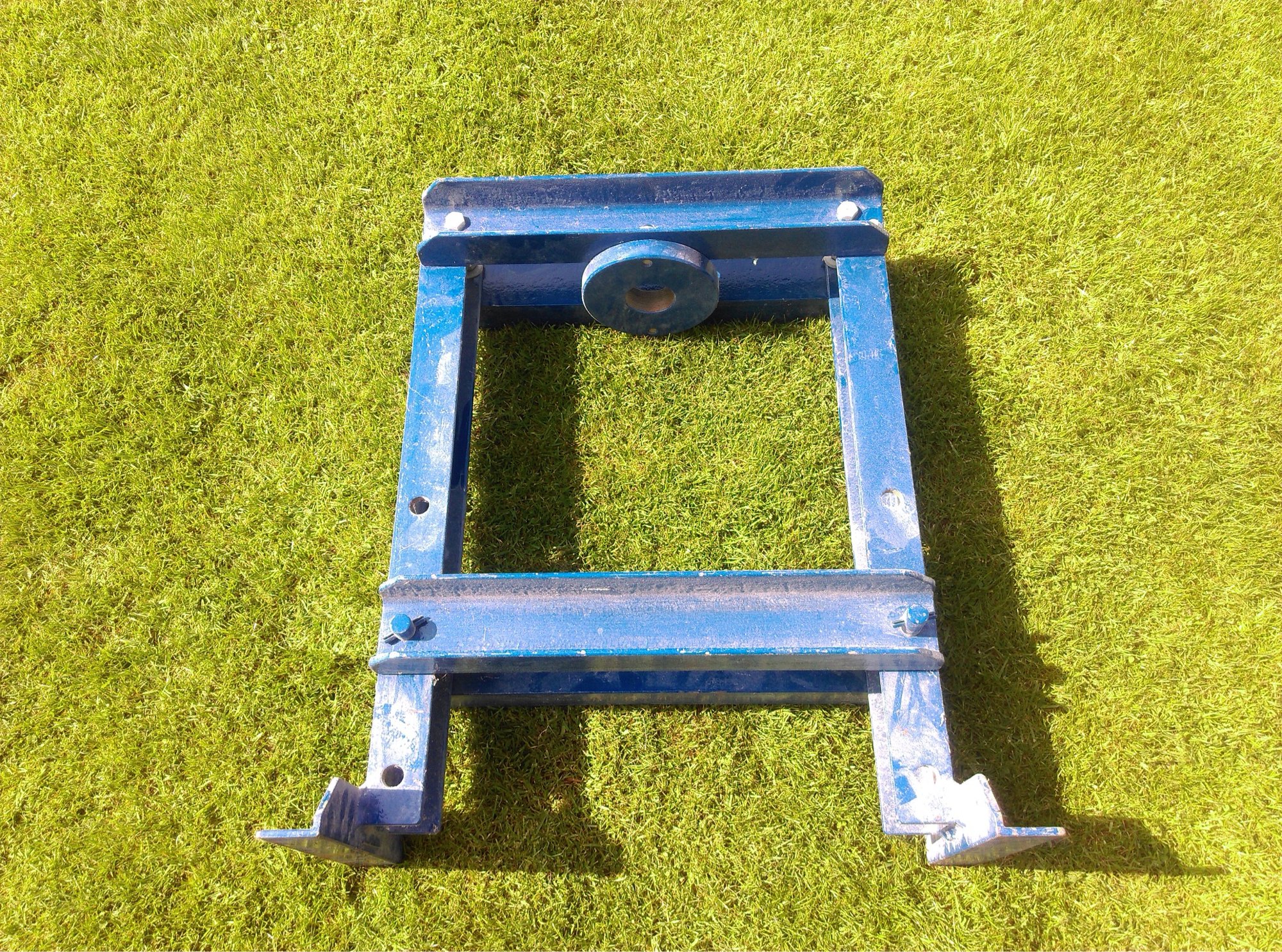

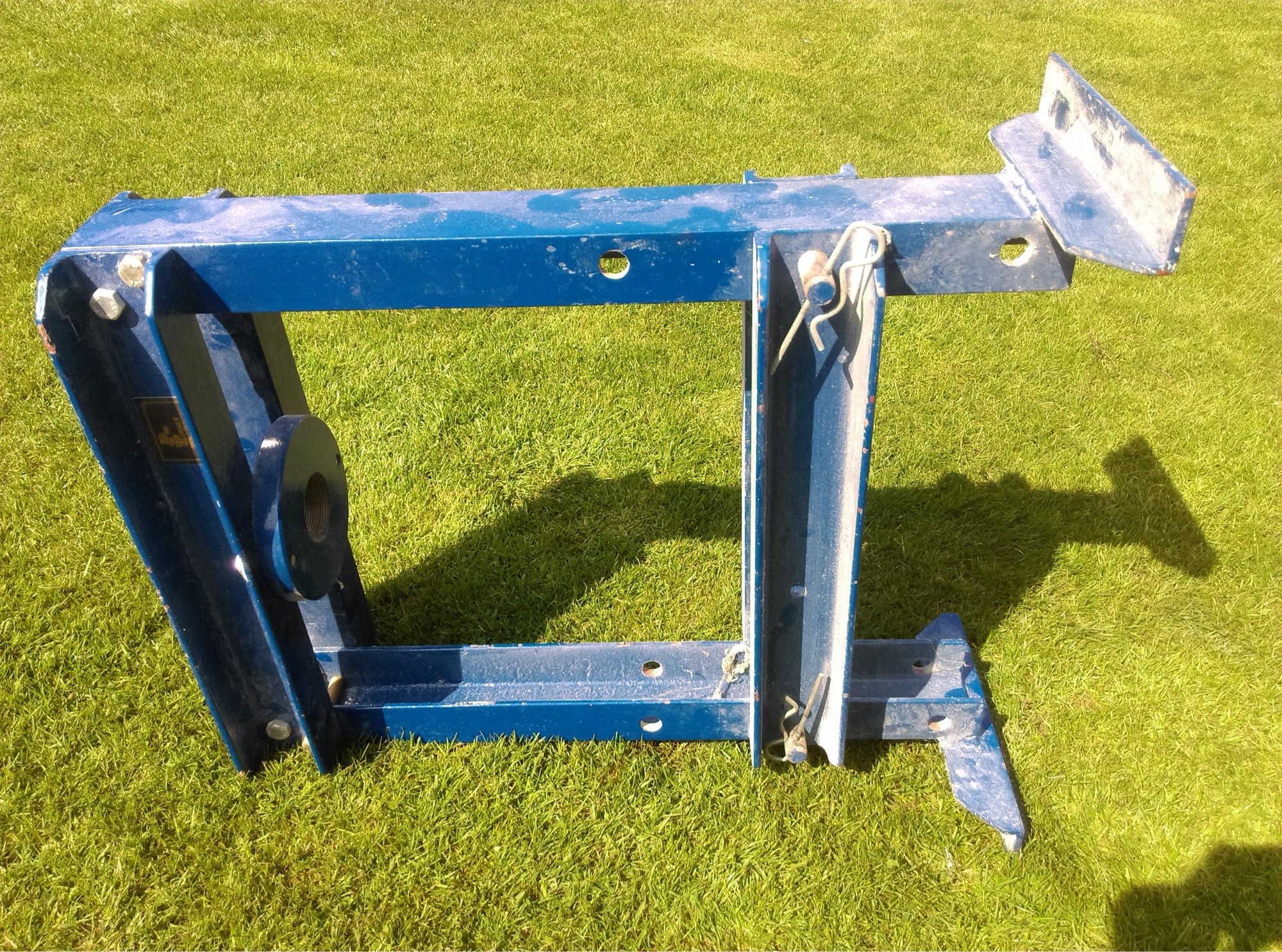

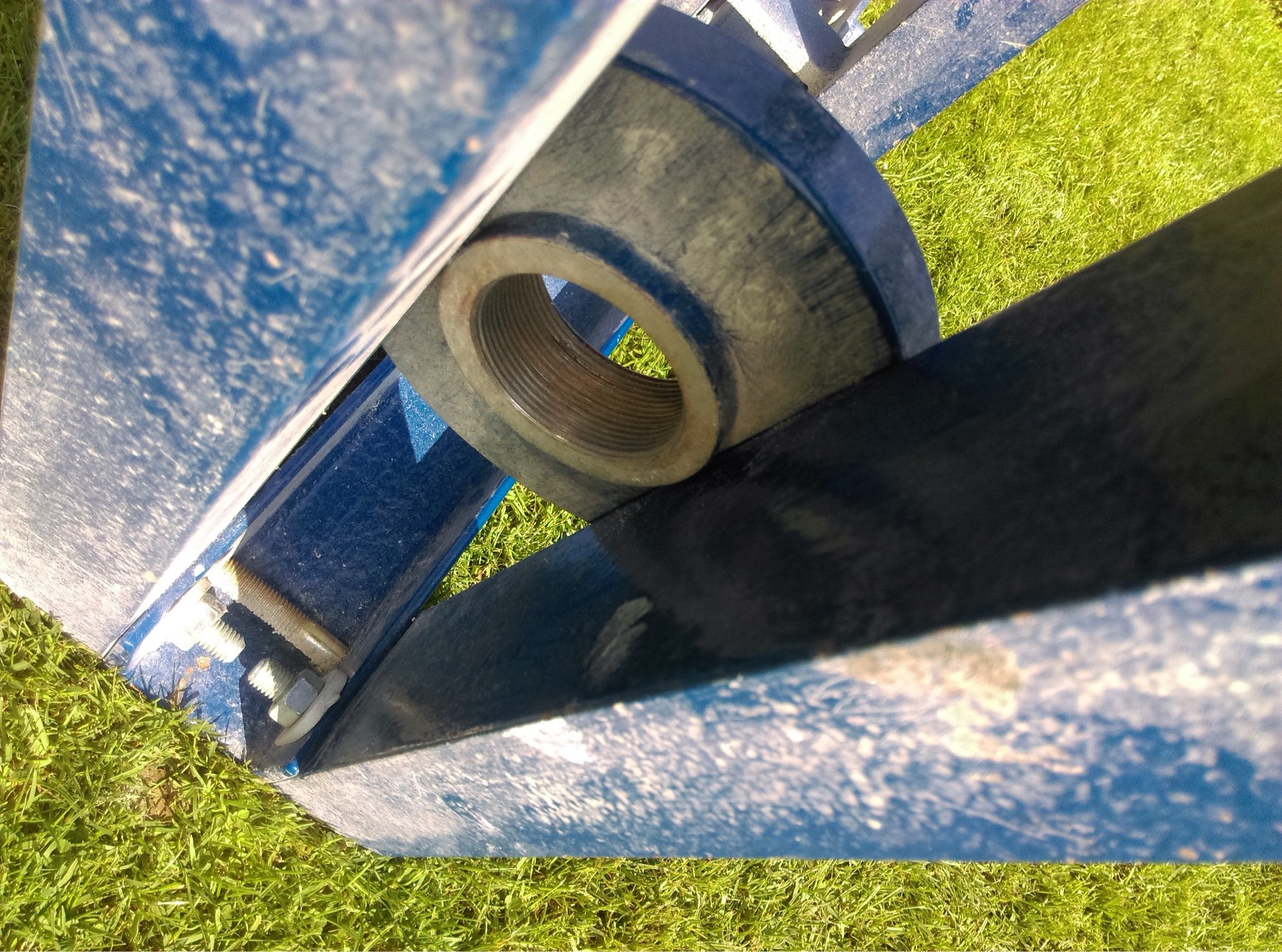

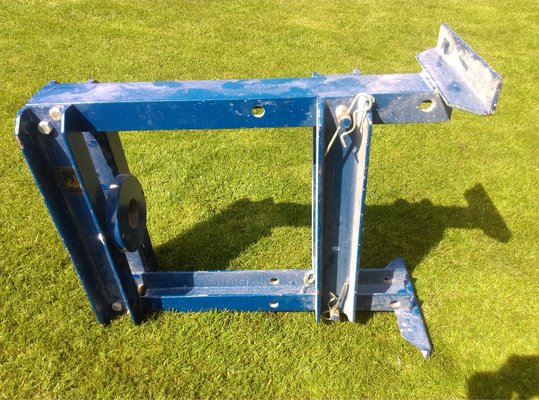

    As promised in another thread, Pictures of the simple press I made to take a 10T ram like you have. As I said, I turned and screwcut a holder for the ram

    IMG_1981.JPG IMG_1982.JPG IMG_1983.JPG
    IMG_1984.JPG .

    Turbo, Hopefuldave, Beanwood and 4 others like this.
  2. rory1

    rory1 Member

    Messages:
    1,030
    Location:
    Macclesfield

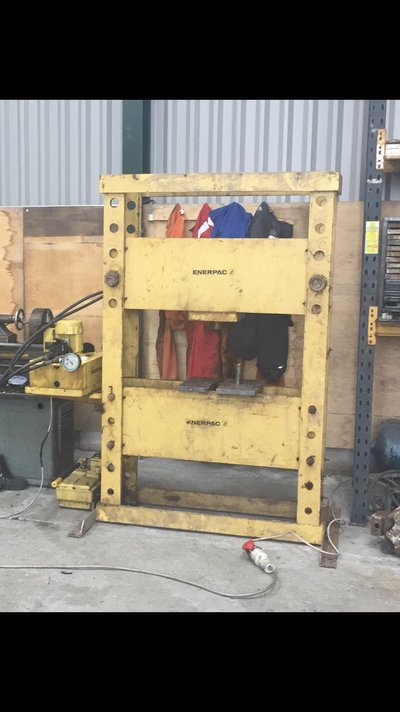

    thats a good job, exactly the same design as my big press, you are putting the load on the threads in the ram the the plate and not in a weld (if the plate was on the top of the channels)

    • IMG_694E45045EBF-1.jpeg
  3. slim_boy_fat

    slim_boy_fat Forum Supporter

    @Ton-up That's brilliant!! Thanks for doing those. :hug:

    I was looking to have it easily stored, so I've been scratching my head on how best to 'fix' the ram to the frame. I was thinking of having the top rail U section welded to the two uprights with the open end up, then drilling through to accommodate the ram after getting threaded holes done in 2 x flat, rectangular plate for either side of the top rail. Typically, overthinking things again......:doh:

    Your round 'ram locator' looks very thick, I suspect the 'skip find' plate(s) I have are 5mm [like the U channel I bought] - does the Collective think that would be robust enough? :dontknow: Also, drilling for and cutting the 13 tpi thread will be problematical for me as I've not 'graduated' to screw cutting on the Myford yet......:ashamed:

    Your design looks much better than mine, so I'll copy that - unless you have a Patent on it....:whistle: :D

    Thanks again! :thumbup:

  4. Ton-up

    Ton-up Member

    Messages:
    1,259
    Location:
    Essex, England.
    It's as thick as the threads on the ram. 5 mm will never be thick enough, you will deform the threads I'm afraid.

    slim_boy_fat and Hopefuldave like this.
  5. Turbo Member

    Messages:
    2,877
    Location:
    Fermanagh, Northern Ireland
    Could you not find a spare screw-on end for your ram & use that? I'm guessing you're using one of the ram/pump units used in porta-power body straighteners & the ends are available to buy separately. One of my planned projects is a bearing press & I'm using the ram from my porta power & a spare screw on end.

  6. Rig Pig

    Rig Pig Member

    Messages:
    3,380
    Location:
    Narrwich! U.K.
    I vaguely remember a post on here about using a cheap Jack converted to work upside down. Maybe a cheap option instead of buying/modifications to a porta power?

  7. chris pruteanu Member

    Messages:
    632
    Location:
    ROMANIA
    To be honest its not really worth making one, by the time you buy the hydraulic pack, cut and weld the steel girders its quite a lot of faffing about. I would look for decent 2nd hand units or new chinese 10-20 tonne jobbies, some are decent and last a long time too... Good effort though...

    pressbrake1 likes this.
  8. pressbrake1

    pressbrake1 pre-moderated

    Messages:
    992
    essex england
    I’ve done it few times and spent too much a few times!
    But it’s a useful project to make if you want to make something.

  9. slim_boy_fat

    slim_boy_fat Forum Supporter

    You mean the round, threaded bit? I suppose I could get a bit that's thicker (or weld 2x bits together).

    That features in the plan too. :thumbup:

  10. Ton-up

    Ton-up Member

    Messages:
    1,259
    Location:
    Essex, England.
    Maybe not now, but I made this over 25 years ago when things were more expensive and I was on apprentice wages. You didn't get cheap Chinese made stuff on ebay!!

    chris pruteanu and skotl like this.
  11. rory1

    rory1 Member

    Messages:
    1,030
    Location:
    Macclesfield
    Without doing any maths I’d say you’d need at least a 12mm plate for the cylinder mount

    slim_boy_fat likes this.
  12. slim_boy_fat

    slim_boy_fat Forum Supporter

    I'll have a hunt in the 'bits' bin tomorrow, I may just have something that thick.

    There still remains the drilling and internal thread-cutting, both of which will be beyond me. :ashamed:

    I'm more than happy to pay someone who can duplicate @Ton-up's ram securing setup for me?
