Powercraft MCMIG130/08 Wiring problem.

  1. Bob Brown New Member

    Messages:
    2
    Location:
    Scotland, Stirling
    Please bear with me as I'm, obviously, new to forums.
    Can anyone help with the wire connections on a Powercraft MCMIG130/08. The power setting switch (HZ8B-20/3/4 Transfer switch) has been replaced and the wiring partially completed. I need to know which numbers, the wires shown in the photograph connect.
    IMG_0802 (2).JPG

  2. Seadog

    Seadog Forum Supporter

    Messages:
    6,255
    Location:
    NE London - UK
  3. Seadog

    Seadog Forum Supporter

    Messages:
    6,255
    Location:
    NE London - UK

  4. Bob Brown New Member

    Messages:
    2
    Location:
    Scotland, Stirling

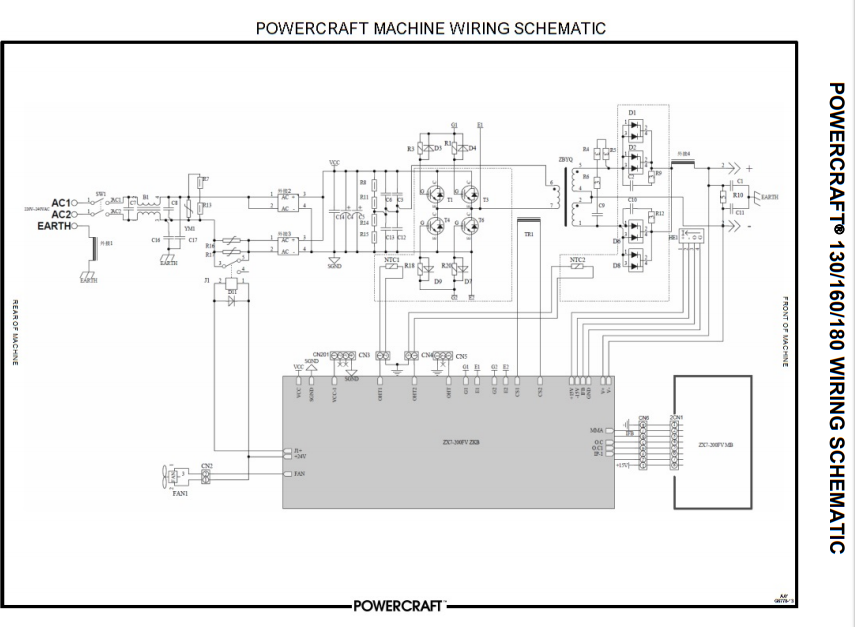

    Thank you Seadog for your speedy reply. This electronic stuff is a bit more complecated than I thought. As the Power Setting switch has all the connections numbered I, in ignorance, expected them to appear on th wiring diagram. I'll do a bit more looking and head scratching and may come back to you, if thats OK. Bob
