Mobility hoist in a workshop

  1. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire

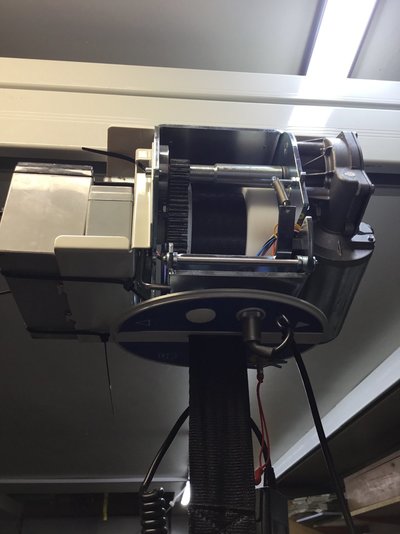

    Fitted a 200kg mobility hoist in the workshop at the weekend, this will allow me to pickup 200kg and put it anywhere in the workshop within 300mm of the walls. That includes picking up chucks, etc for the lathe a mills

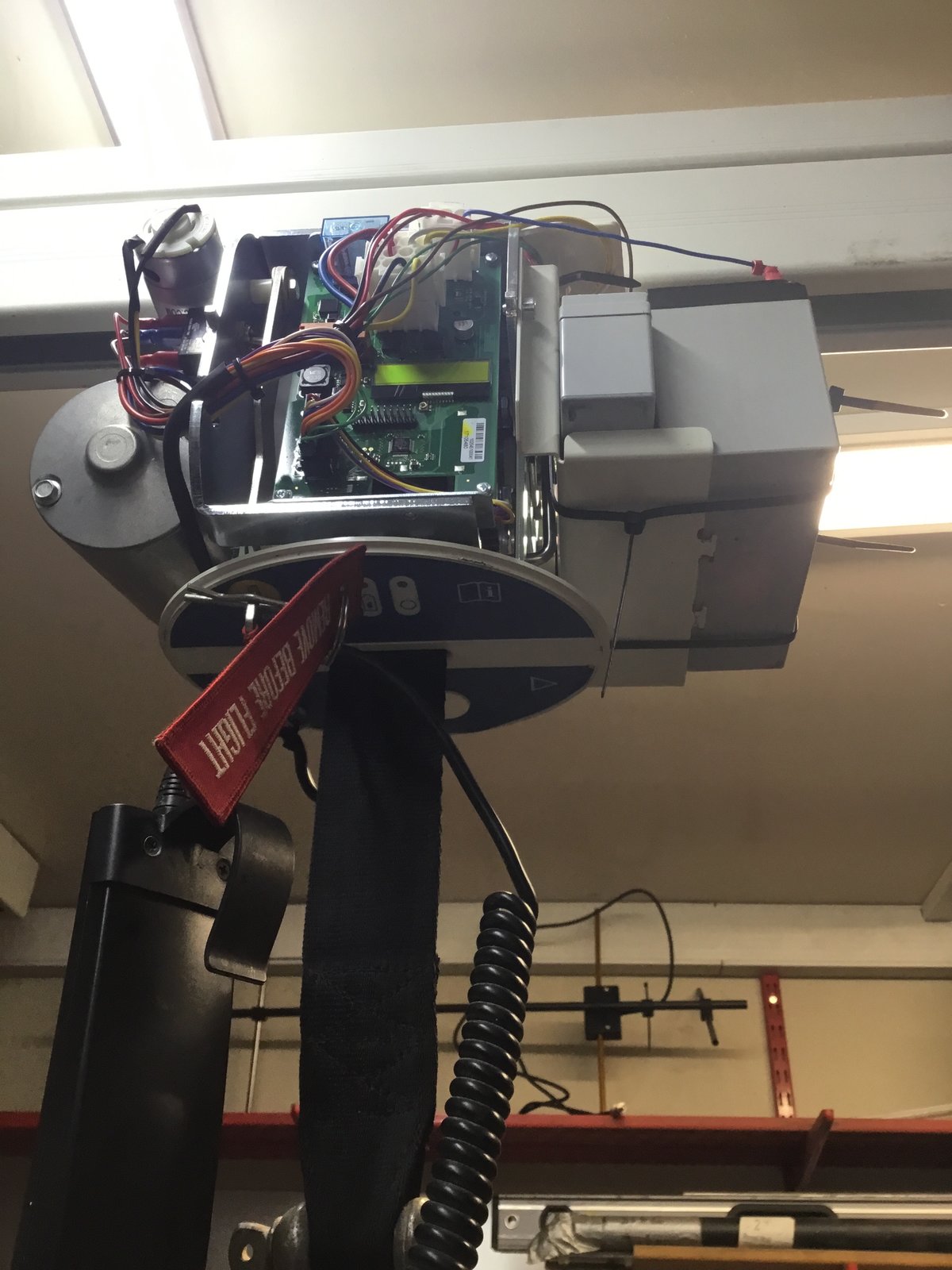

    Runs off two 12v batteries working a 24v paravlux motor to a seatbelt type wheelchair hoist. With a small motor to give power on the cross axis. Once docked it charges and gies to sleep. Batteries where shot on this, but are only 22quid for the pair and should last a few yrs. gerry rigged two batteries to get it working.
    Its got a pendant, for up/dwn. <>. and e-stop. LCD Screen states 2hrs 34mins run time.


    It will never see max load. I have a B&T for that. Should make moving stuff about easier.

    I need to make some hooks etc to pick chucks up.

    eLuSiVeMiTe, Woody.v8, nickk and 19 others like this.
  2. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire

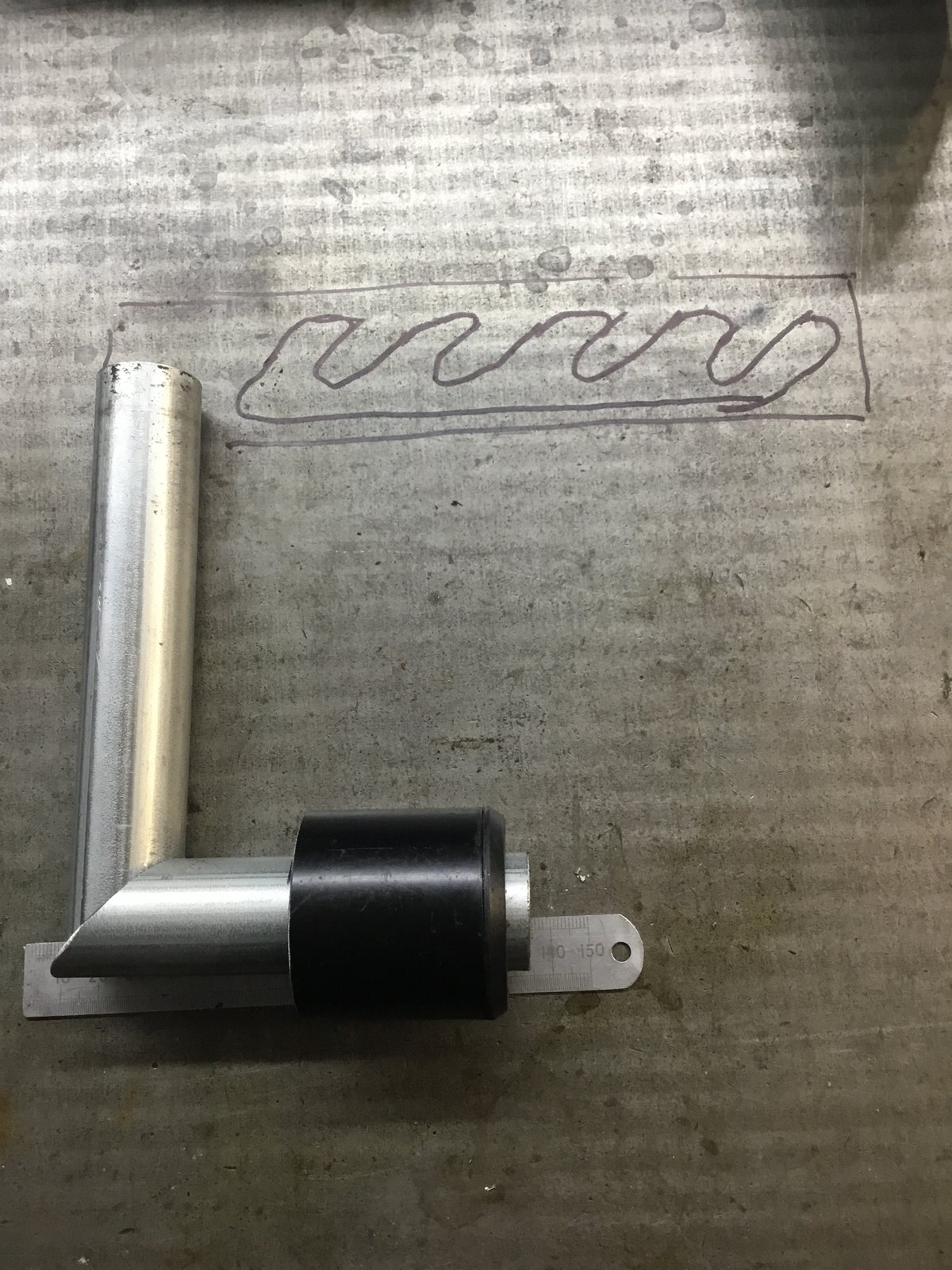

    Mockup of chuck hoist. Damned if I can remember what the toothed bar at the top is called to give cog

    • image.jpg
  3. gordon stephenson

    gordon stephenson Forum Supporter

    Messages:
    7,015
    Location:
    Skelton in Cleveland U.K.
    Great, Really nice addition to the workshop.

    Shox Dr likes this.
  4. dobbslc

    dobbslc Forum Supporter

    Messages:
    5,739
    Location:
    Hertfordshire UK
    Pawl?

  5. daleyd

    daleyd Member

    Messages:
    7,101
    Location:
    Wrexham, North Wales
    That’s a great little thing - I really wished when I had my garage built I would have put something in, it’s a struggle trying to lift heavy bits off the lathe/mill etc - one of those would be a godsend for my poor back :thumbup:

    Parm and Shox Dr like this.
  6. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    The Batteries are here. The batteries are here:sheep::sheep::sheep::sheep::sheep:


    but ‘pawl’ what type?

    daleyd likes this.
  7. dobbslc

    dobbslc Forum Supporter

    Messages:
    5,739
    Location:
    Hertfordshire UK
    Paul, pool :dontknow:
    :laughing:

  8. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    Its spelt correctly. Searching for ‘pawl’ brings up rotary type, not jd2 bender linear type.

    dobbslc likes this.
  9. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    this is for a residential use. I screwed it to the ceil/floor joists. They are 9x3" at 18’ centres two screws per joist will hold far more than 200kg plus hoist. 650mm drop to underneath of headunit

    slim_boy_fat and daleyd like this.
  10. Agroshield Member

    Messages:
    1,371
    Test it on your biggest chuck first: the vertical leg has to be minimum half chuck diameter. Also, if the vertical is too short, and the pawl leg too long, it might hit the headstock before the chuck is seated.

    Shox Dr likes this.
  11. gaz1

    gaz1 Member

    Messages:
    11,341
    Location:
    westyorkshire
    id probably use it on a beam forklift hoist type of thing

  12. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    Anti kick back bar

    dobbslc likes this.
  13. dobbslc

    dobbslc Forum Supporter

    Messages:
    5,739
    Location:
    Hertfordshire UK
    [QUOTE="Shox Dr, post:i just saw the picture you drew and the word pawl came into my head but nothing else, not sure if I helped or hindered :doh::laughing:

    slim_boy_fat and Shox Dr like this.
  14. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    It sent me in the right direction, didnt realy want to make one, rather get someone to cnc plasma cut it, save me a hassle

    dobbslc likes this.
  15. roofman

    roofman Purveyor of fine English buckets and mops

    Messages:
    7,825
    Location:
    North West
    nice addition to the shop:thumbup:

  16. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    Thanks, it is, just wish it wasn't under the circumstances

    roofman likes this.
  17. roofman

    roofman Purveyor of fine English buckets and mops

    Messages:
    7,825
    Location:
    North West
    Cant keep a good man down mate..we discover our inability to do certain stuff but the thinking kicks in and we overcome to carry on, well done.:)

    Shox Dr likes this.
  18. nickk Forum Supporter

    Messages:
    2,716
    Location:
    Hay-on-wye
    Rack?

    Shox Dr likes this.
  19. Shox Dr

    Shox Dr Chief Engineer to Carlos Fandango

    Messages:
    16,035
    Location:
    East Yorkshire
    It called been self employed all your life. Adapt or die(PAYE):laughing:

    roofman, Windy Miller and nickk like this.
  20. roofman

    roofman Purveyor of fine English buckets and mops

    Messages:
    7,825
    Location:
    North West
    :laughing::thumbup:

    Shox Dr likes this.
