flat belt

  1. ranchero Member

    Messages:
    82
    Location:
    southampton
    i have a small lathe a smart and brown model m needs a bit of work but useable as is. however the belt keeps coming apart at the join so either i am no good at joining flat belts [ most likely ] or the joiner i am using is no good [ ??? ]. so does anybody make new belts.
    thanks in advance for your help

  2. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    9,664
    Location:
    Bedfordshire England
    Mine has a toothed joint with a pin.
    I like the tick of the belt and gives me a good reference for speed and if it's bogging down.

    Think I got mine from a forum member here with an M

  3. slim_boy_fat

    slim_boy_fat Forum Supporter

    @ranchero How long a piece do you need? I have some 1" wide in the cave, yours if you want it.

    gordon stephenson likes this.
  4. gaz1

    gaz1 Forum Supporter

    Messages:
    8,954
    Location:
    westyorkshire




    @mrsbruce might have knowledge of another way





    an easier reference to see


  5. WorkshopChris

    WorkshopChris Forum Supporter

    Messages:
    4,536
    Location:
    South East Essex
  6. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    9,664
    Location:
    Bedfordshire England
    Pretty sure the M has castings underneath the pulleys so needs joining in place

    Il check now.
    Not sure about the mk2 as the backgear is under the spindle rather than behind it.

    WorkshopChris likes this.
  7. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    9,664
    Location:
    Bedfordshire England

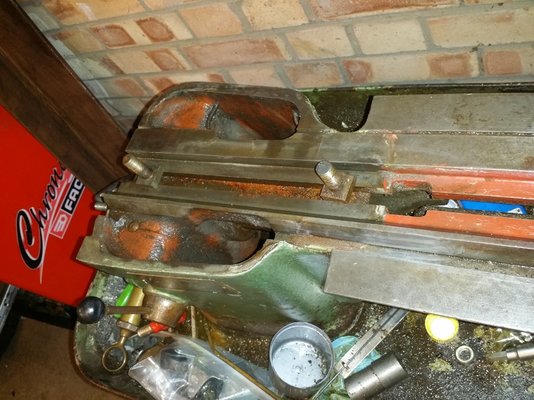

    And the bed is in the way too.

    • IMG_20170924_164022.jpg
    • IMG_20170817_221735.jpg
  8. ranchero Member

    Messages:
    82
    Location:
    southampton
    thanks for the offer but mine is 1.25" wide. the belt it self is good its the joint that keeps separating so it must be the way i crimp it as i do not have the proper tool.
    i like the idea of lacing so i will give it a try.

  9. slim_boy_fat

    slim_boy_fat Forum Supporter

    No problem. I've read that the lacing makes a comforting "click, click" sound as it's running. :)

  10. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    9,664
    Location:
    Bedfordshire England
    It does. Gives a nice audible rpm guide.

    slim_boy_fat likes this.
  11. ranchero Member

    Messages:
    82
    Location:
    southampton
    its working so far so good managed to make a lot of mess today and even something useful

  12. DAPPH

    DAPPH Member

    Messages:
    2,040
    Location:
    Near to Cross Hands Llanelli SouthWales GB
    Could it be that the usual direction of rotation of the belt is your problem ?
    ie
    You are running the joint against the direction of rotation so it hits hard as the bulge slaps the pulley ? .

    Anguz likes this.
  13. MBB Forum Supporter

    Messages:
    798
    Location:
    northumberland
    I've always scarfed the belts on a surface grinder. The correct adhesive is essential as is the clamping. I still have the clamping jig I made 40 years ago to the Smart and brown design in the back of the 1024 manual.

    eLuSiVeMiTe likes this.
