Elliott 10M Shaper

  1. RobCox

    RobCox Member

    Messages:
    112
    Location:
    Cambridge, UK

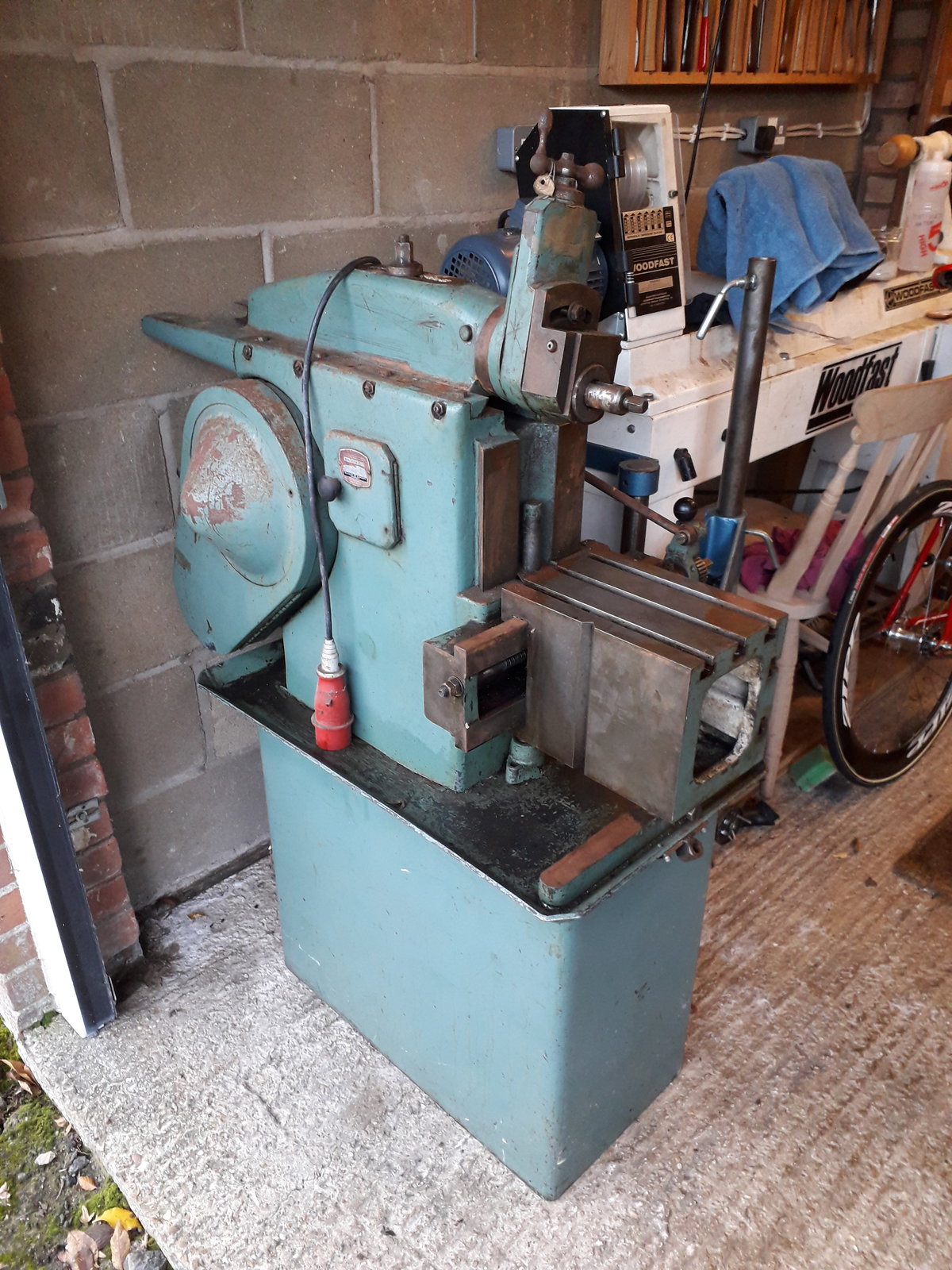

    I picked up this machine last weekend with a view to doing a restoration job on it once I've finished the Eagle Surface Grinder. It has a base which I removed to make it a bit more stable for transport.

    Its only a 10" stroke model, but its still heavy enough to make it worthwhile dragging the engine crane and pallet truck along for the ride:



    [​IMG]

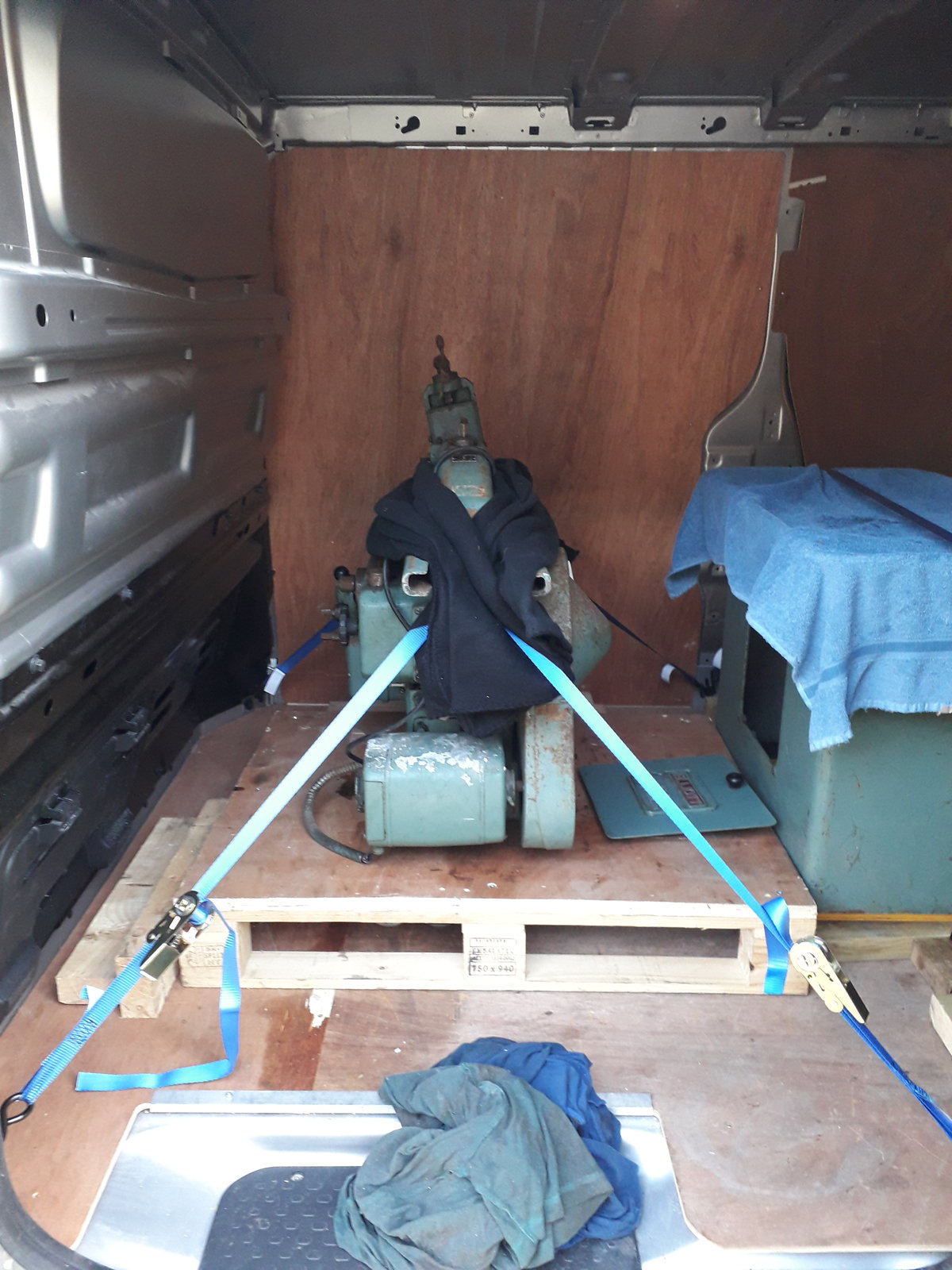

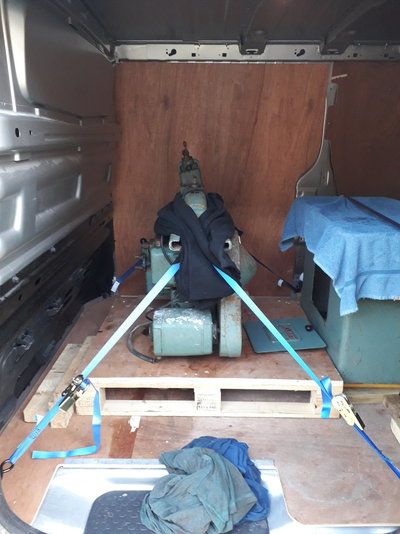

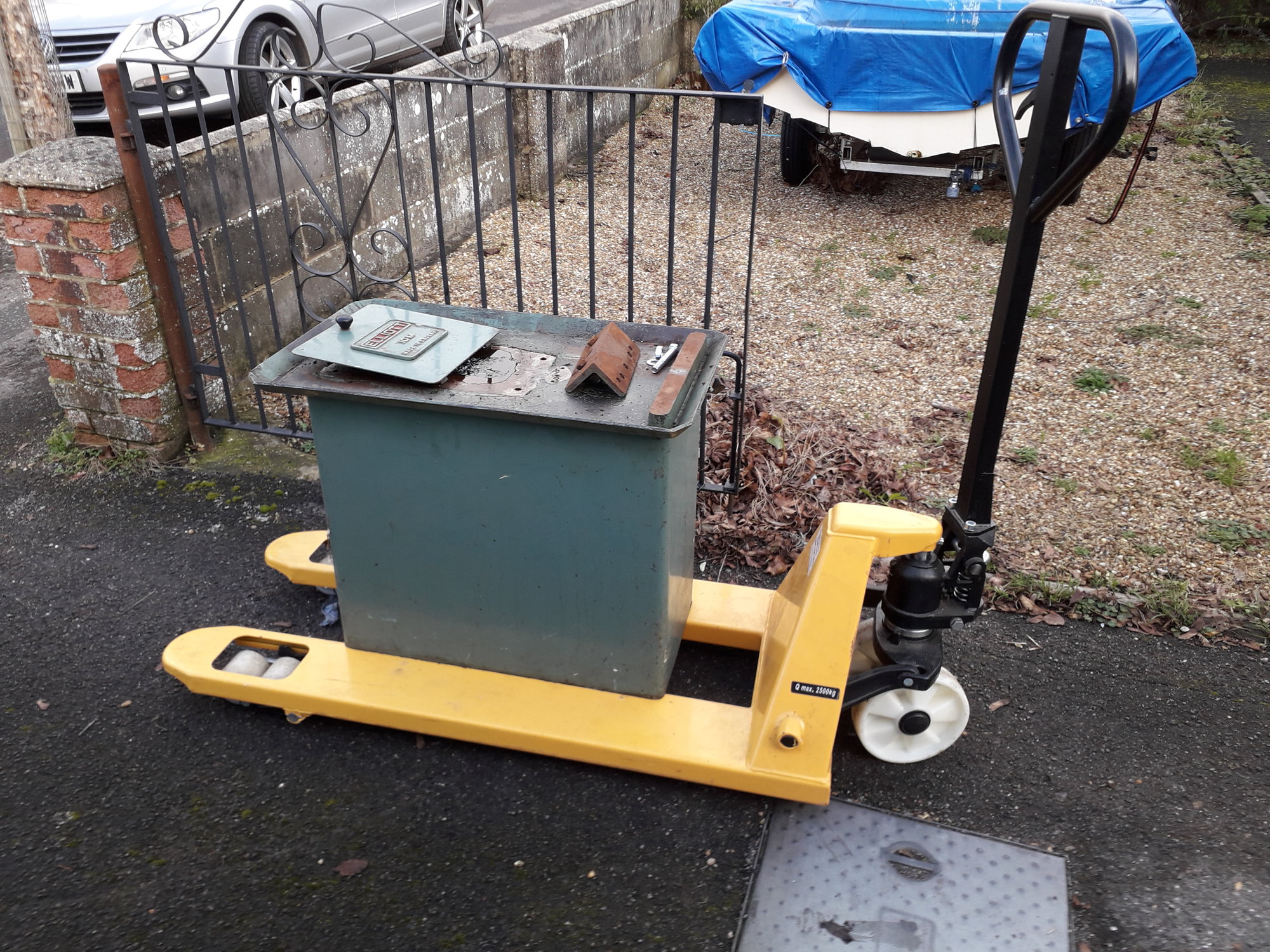

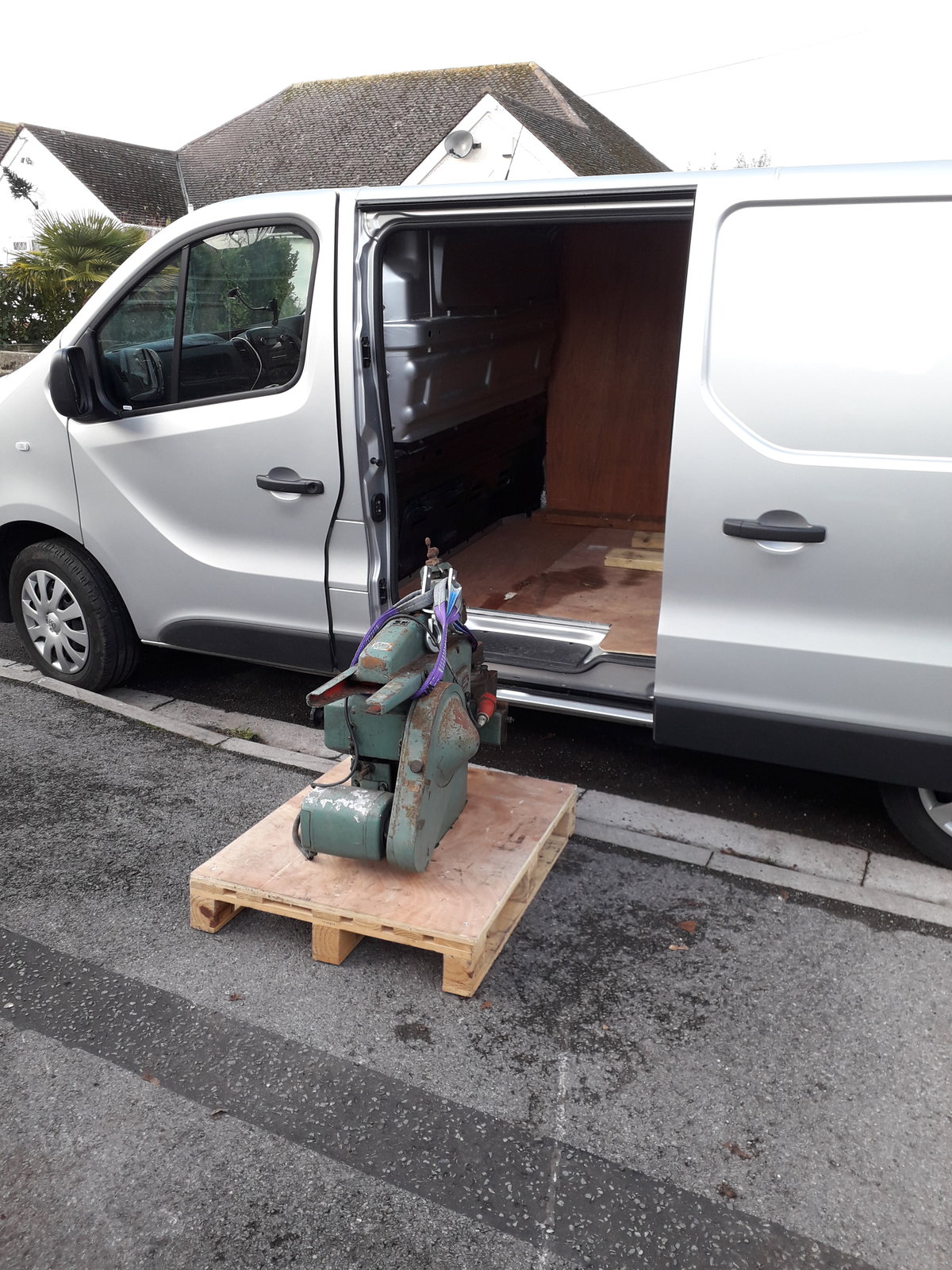

    The base can easily be lifted by 2 people, but the top weighs in at about 350kg. Here it is stowed for transport:

    [​IMG]

    Its now sitting in my garage waiting for me to strip it down, fix it up and give it a coat of paint:

    [​IMG]

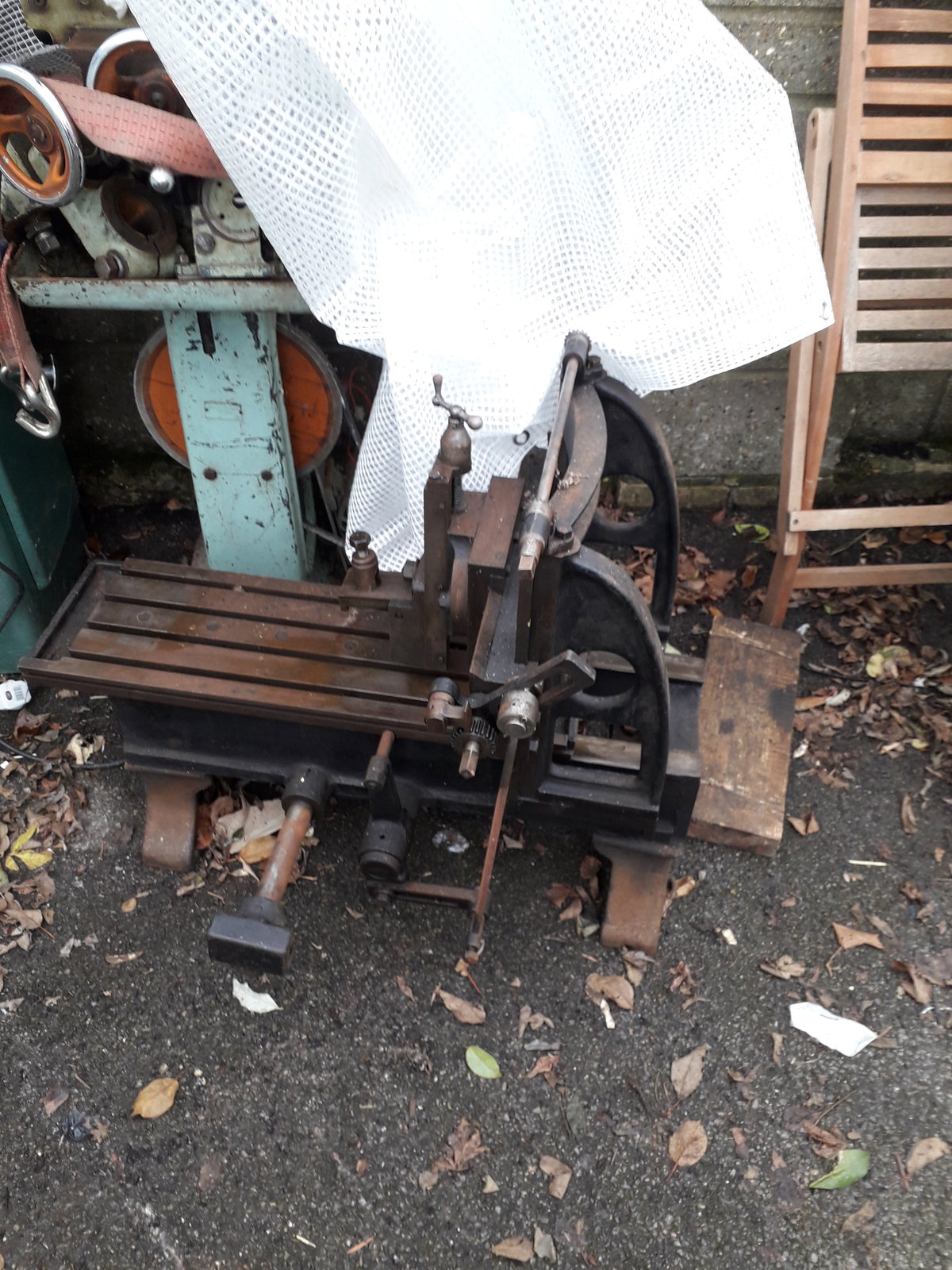

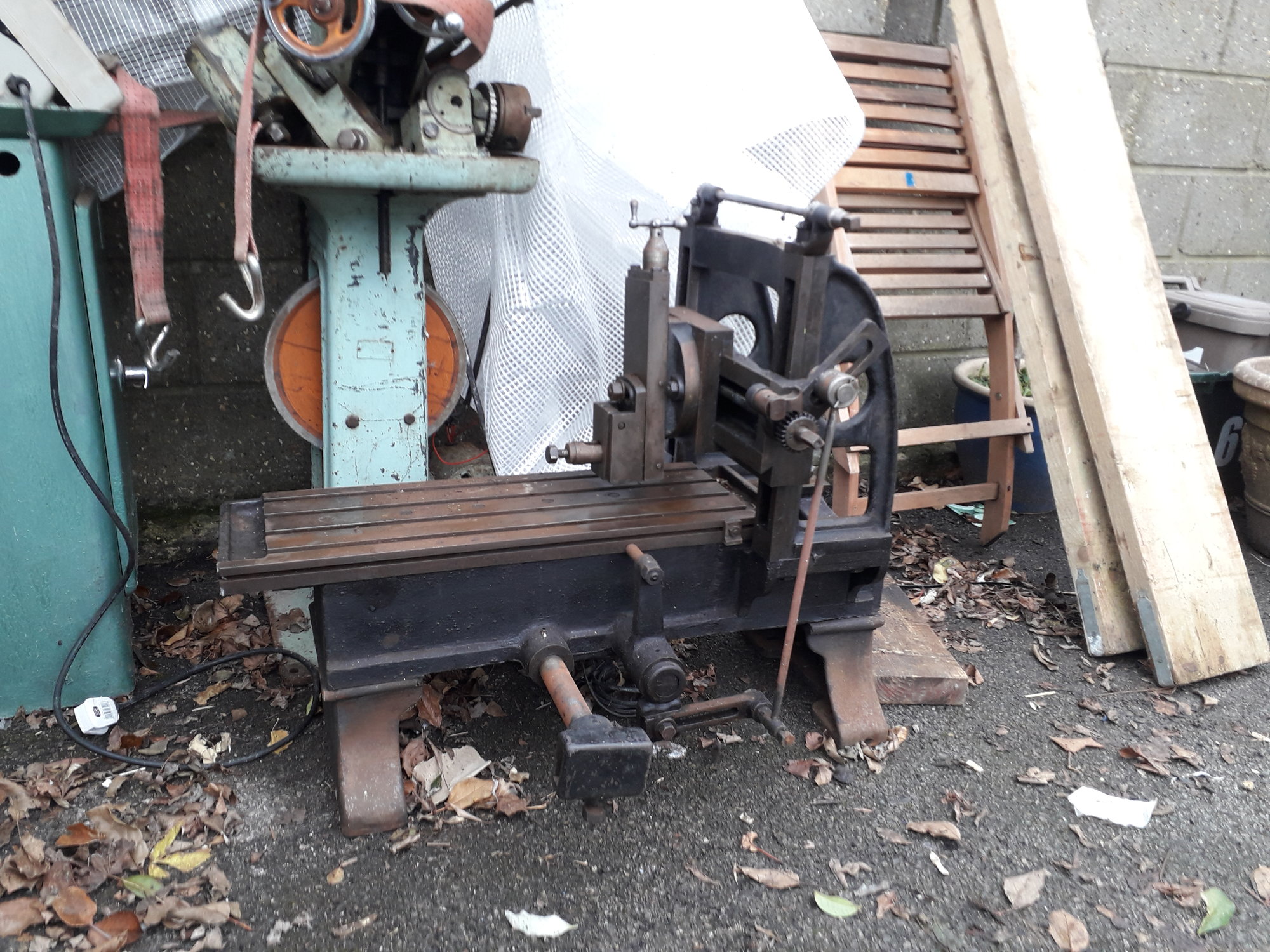

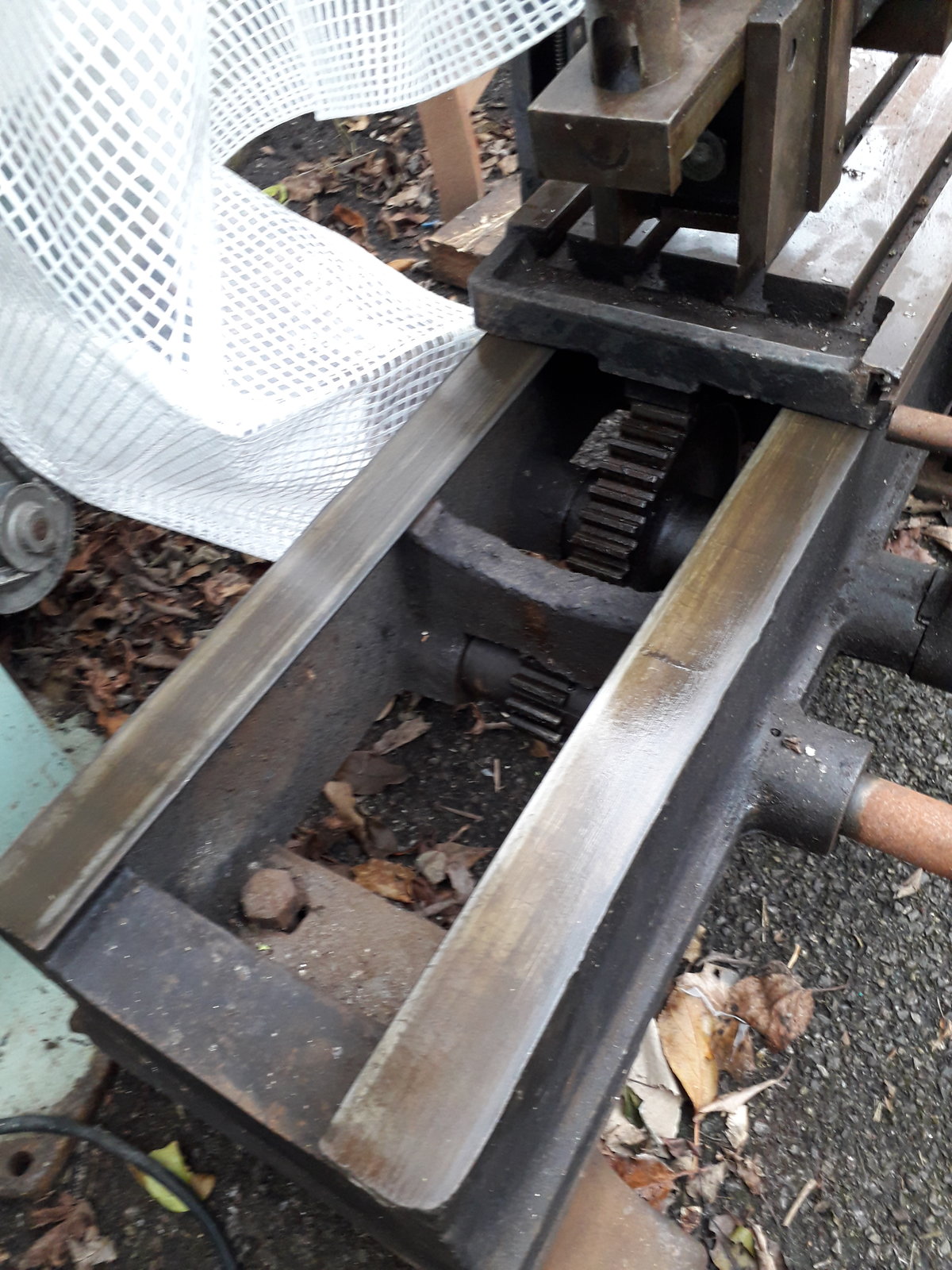

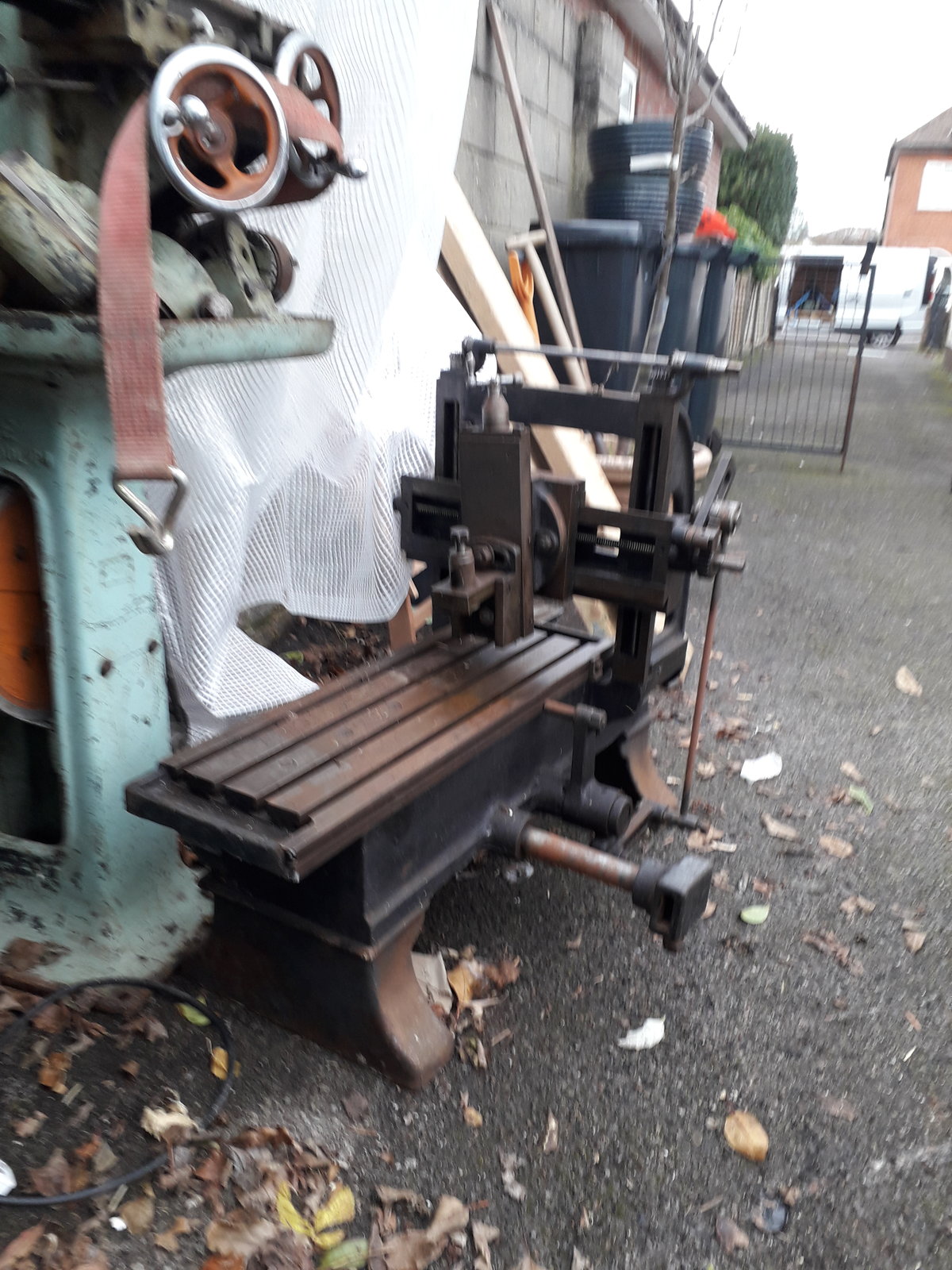

    Whilst I was picking it up, the chap selling it had several other bits of machinery. 2 were sold, but he had this little manually driven metal planer, like a toy version of the one that Keith Rucker is renovating on his Youtube channel. It seems in good nick, just needs a clean and a handle adding. The ways looked smooth and not at all pitted:

    20191207_131548.jpg 20191207_131628.jpg 20191207_131800.jpg 20191207_131849.jpg

    He hadn't put it on ebay as he wasn't sure what it was. If I had room for another machine I might have been tempted, but as I haven't, I offered to show these pics on this forum in case anyone would like to acquire it. If you're interested, PM me and I'll pass you his details. No idea how much he'll want for it, but its part of an estate sale.

    Rob

    • 20191207_124311.jpg
    • 20191208_124814.jpg
    • 20191208_144755.jpg
  2. spencer 427 Member

    Messages:
    6,925
    Location:
    uk colchester
    I like the planer

  3. Spark plug

    Spark plug Member

    Messages:
    3,643
    Location:
    Durham, England
    That’s right up your street Spencer :thumbup:

    spencer 427 likes this.
  4. spencer 427 Member

    Messages:
    6,925
    Location:
    uk colchester
    Yer it's a cool little bit of kit

    Spark plug likes this.
  5. spencer 427 Member

    Messages:
    6,925
    Location:
    uk colchester
    PM has been sent

    Arc Tourist, Spark plug and decca like this.
  6. optima21 Forum Supporter

    Messages:
    2,939
    Location:
    halifax, England
    come on, lets be fair, its old and metal you like it :D:D

  7. Pete.

    Pete. Member

    Messages:
    9,431
    Location:
    Kent, UK
    Goddamn it I want that planer.

    fizzy, Arc Tourist and Gritineye like this.
  8. Gritineye Member

    Messages:
    1,165
    Sussex UK
    Just a tip, but if there are any through bolts holding the top to the base or holes best to seal them now before the lube pool of oil starts to spread out over the floor.

  9. barking mat

    barking mat Barking at Pigeons

    Messages:
    3,317
    Location:
    Brittany, The Arz Valley.
    Me too.

  10. MBB Forum Supporter

    Messages:
    1,047
    Location:
    northumberland
    Like the planer as an ornament. They aren't much use unless yo put a milling head onto it.

  11. steviec_lj

    steviec_lj Rust Welding Professional

    Messages:
    2,708
    Location:
    Barnetby, N.Lincs
    Have a 1A shaper, basically the same thing under Alba instead of Elliot.

    Be interested in the plane, depending on price obviously, and whether Spencer beats me to it

  12. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,558
    essex england
    Far from it
    Single point produce a more accurate surface finish therefore flatter
    Also perfect for dovetails on machine parts.
    Wouldn’t use one for hogging off material though, that would get old quickly!

    Dieselkid 63 and Spark plug like this.
  13. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,558
    essex england

    Ancient_Axeman and jordhandson like this.
  14. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,558
    essex england

    jordhandson and eLuSiVeMiTe like this.
  15. RichardM Member

    That's quite mesmerising watching it go back and forward.

  16. Arc Tourist

    Arc Tourist Forum Supporter

    Messages:
    1,700
    Location:
    California & Wales
    Me too !
    About the only space I could currently put it is in the living room, and I have a feeling the Wife would not be happy about that. :scared:
    Finding a small planer like that one is about as easy as finding a Polar Bear in the Desert.

    EDIT: Check out . . . . . . . "Old Steam Powered Machine Shop" on YouTube, Dave is restoring a large metal planer.

    slim_boy_fat likes this.
  17. MBB Forum Supporter

    Messages:
    1,047
    Location:
    northumberland
    @pressbrake1
    I didn't mean the larger planers were no good and had limited use. I worked on one for four years I also worked on a Butler 36" stroke shaper for. for flat surfaces that had not to be ground they were the best thing going.
    The one in the picture is very small, I've had two which were very pretty but very limited. The bench that they were on had to be bolted down as they would be easily moved when using the lever' great if you wanted muscles like Popeye.

  18. MBB Forum Supporter

    Messages:
    1,047
    Location:
    northumberland
    I liked the tool lifter on the clapper box on the lathe bed vid. There seems to be a solenoid to lift the tool. Without the lifter carbide tool edge used to break and you were limited to HSS. To use carbide I used to put a little flapper on the tool shank.

    slim_boy_fat likes this.
  19. jordhandson Member

    Messages:
    766
    Location:
    Dorset
    Nice one, I thought I saw you down my way;) did you get the vice that was on it on it :thumbup: I have the same machine



  20. ronan

    ronan Member

    Messages:
    9,937
    dublin

    We had a planer similar to that in the place i served the last year of my time at. It was not used much, the work for it had disappeared.
