Charpy V Notch Test Piece Gauges

  1. TechnicAl

    TechnicAl Member

    Messages:
    7,441
    Location:
    Rotherham

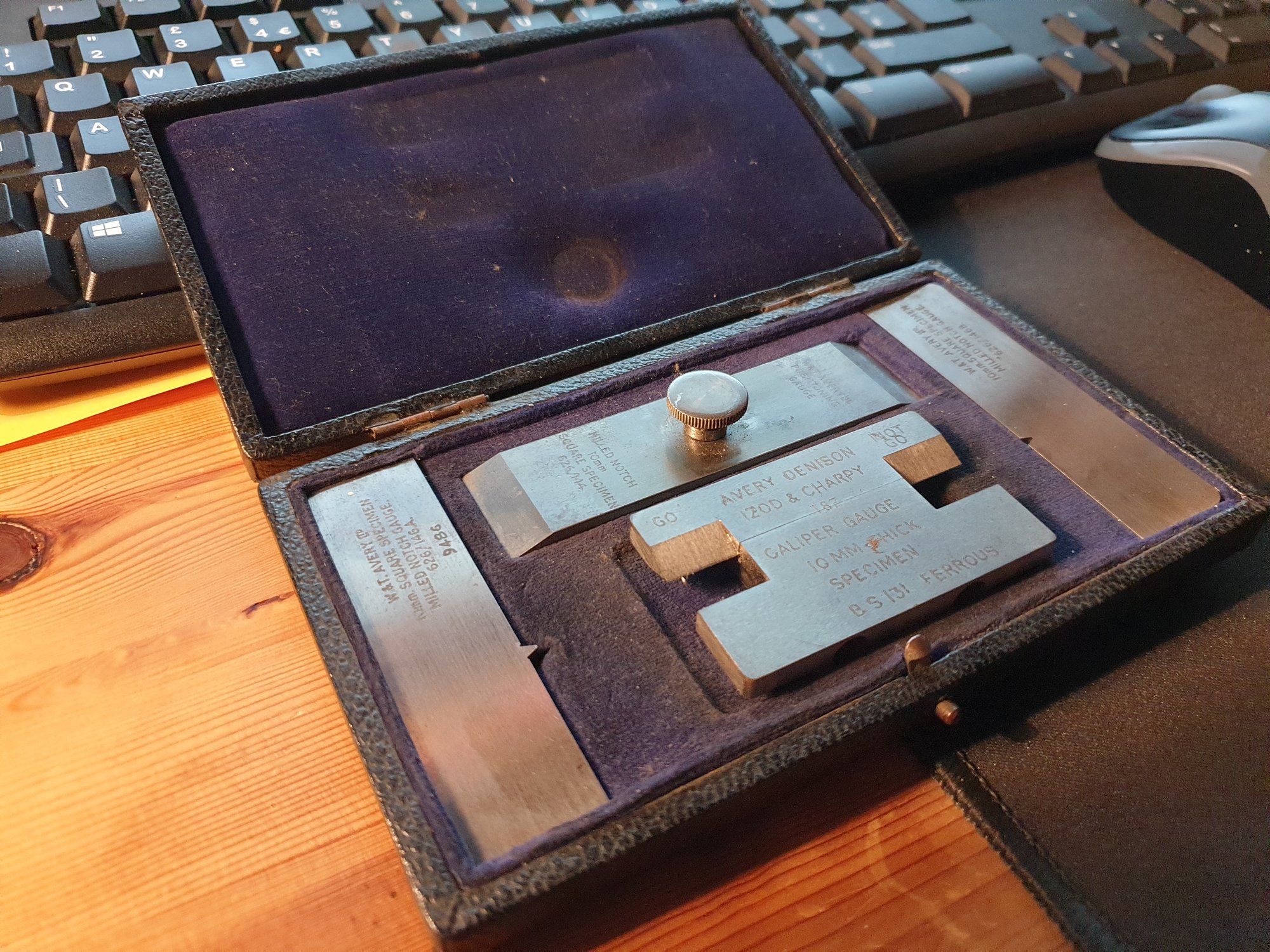

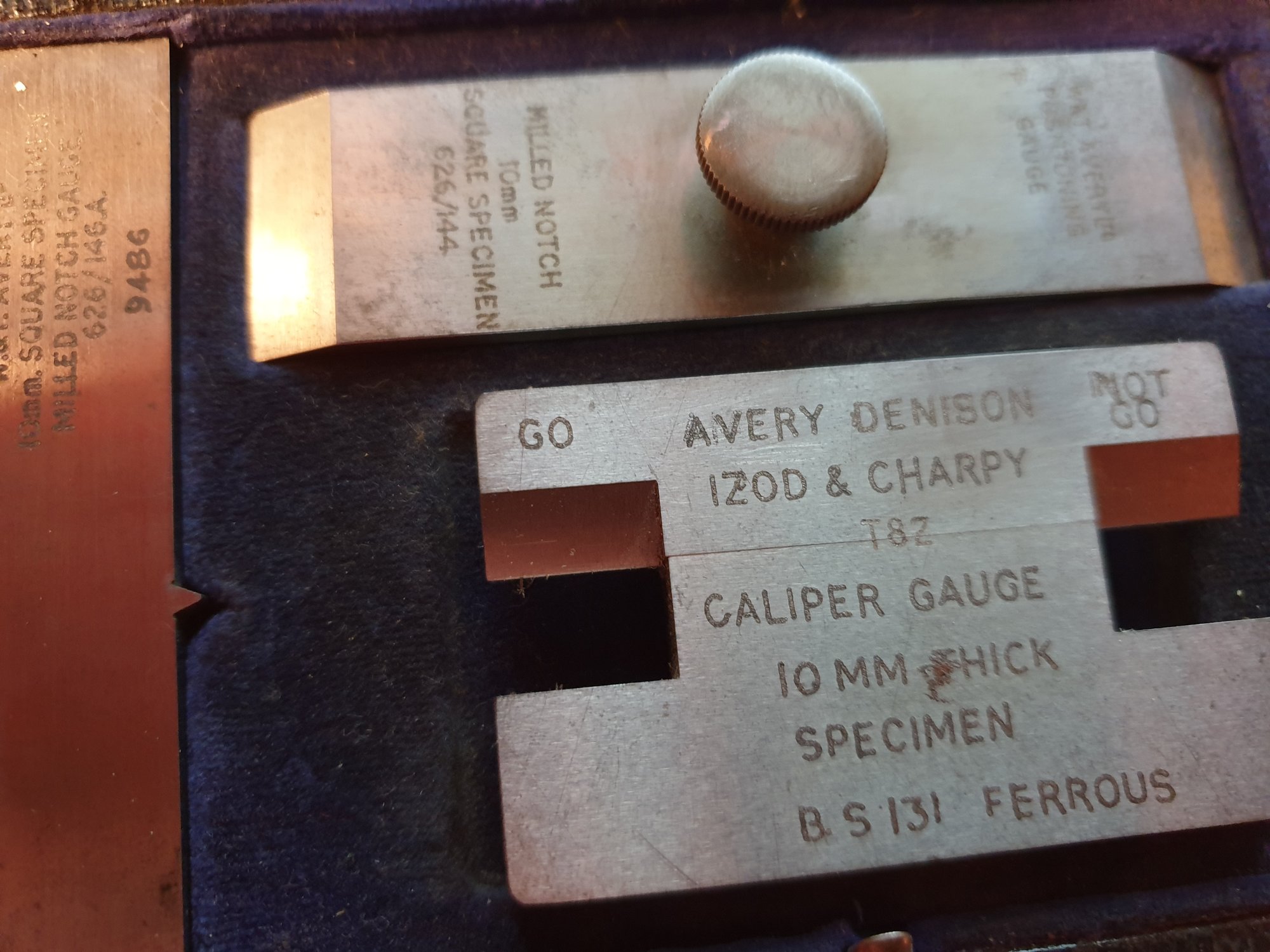

    Found these in a drawer. Cant remember how I came by them but they are for checking the dimesions of Charpy V Notch test pieces
    Im thinking they could be alloy steel so good for making a blade...a small one

    gauge 2.jpg gauge 1.jpg

    AndersK likes this.
  2. Tinbasherdan

    Tinbasherdan Bodger in chief

    Messages:
    5,205
    Location:
    Bolton, England
    If you’d be willing to part with them they would be good to show my students

    mtt.tr and Brad93 like this.
  3. Brad93

    Brad93 M J B Engineering

    Messages:
    8,476
    Location:
    Essex
    Too nice to make into a knife!

    Anguz likes this.
  4. Maker

    Maker nEw mEmBeR

    Messages:
    7,322
    Location:
    Don't ask questions

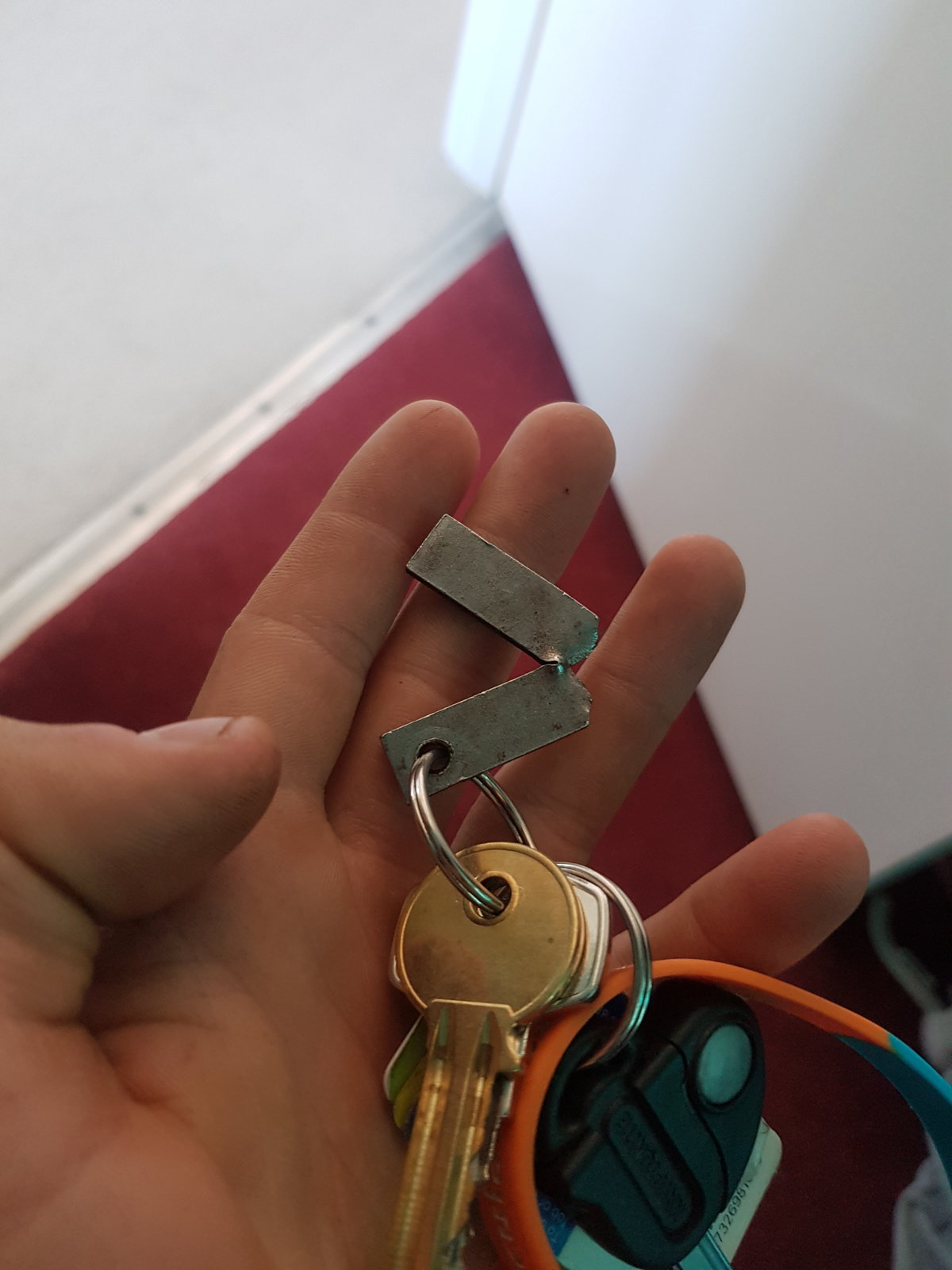

    Sort of relevant: I've got a Charpy test specimen on my keys. :laughing:
    We did it in first year, I thought it looked cool so I kept it, broke the corners and drilled a hole in it.

    Shox Dr likes this.
  5. Other Daniel

    Other Daniel Member

    Messages:
    49
    Location:
    France, Charente
    Agree.
    Far too nice, to be cut up.

  6. TechnicAl

    TechnicAl Member

    Messages:
    7,441
    Location:
    Rotherham
    It must have been a good one....they usually break in two

    I used to have a tensile test piece with a big slag trap in it....it was to remind my Apprentice of his first go at welding a test plate.

  7. Maker

    Maker nEw mEmBeR

    Messages:
    7,322
    Location:
    Don't ask questions
    I'd imagine the lab was designed such that it wouldn't break, so there'd be a big, obvious difference between that and the the sample cooled in liquid nitrogen.

  8. TechnicAl

    TechnicAl Member

    Messages:
    7,441
    Location:
    Rotherham
    Ive seen them stop the hammer even when frozen.......usually something like Inconel

    We actually made some mild steel rods that would stop the hammer at -40oC....now that is unusual. We used cerium (mischmetal) as an ingredient and that coated any inclusion and change the shape to globular....we really thought we were onto something, until we started seeing cracks....the cerium combined with hydrogen and formed the cracks...

    Maker likes this.
  9. TechnicAl

    TechnicAl Member

    Messages:
    7,441
    Location:
    Rotherham
    Students of what subject?

  10. Tinbasherdan

    Tinbasherdan Bodger in chief

    Messages:
    5,205
    Location:
    Bolton, England
    Engineering from straight out of school up to HND

  11. TechnicAl

    TechnicAl Member

    Messages:
    7,441
    Location:
    Rotherham
    Send me your address and I will post them....Im on holiday though for a while

    mtt.tr likes this.
  12. Tinbasherdan

    Tinbasherdan Bodger in chief

    Messages:
    5,205
    Location:
    Bolton, England
    You’re a good man. Funnily enough one of the units in delivering this year the students have to do a write up on the Charpy testing so it will be good to have some physical items to put alongside the usual videos and powerpoints :)
