There's going to be a wedding......sort of

Fazerruss · Dec 30, 2016

We are gathered here today to join these in unholy metallurgy...

Here's my next project after completing the crane. I recently bought a really nice Tom Senior M1 horizontal mill off a fellow member.
Now unfortunately my ocd has taken over as I like my machines to look like new, at least at first. The mill is in superb mechanical condition but there are a few cosmetic imperfections that just won't do.

So I've started stripping it for a respray. But then comes the interesting bit, I'm going to fit a bridgeport vertical head so I will have the best of both worlds.

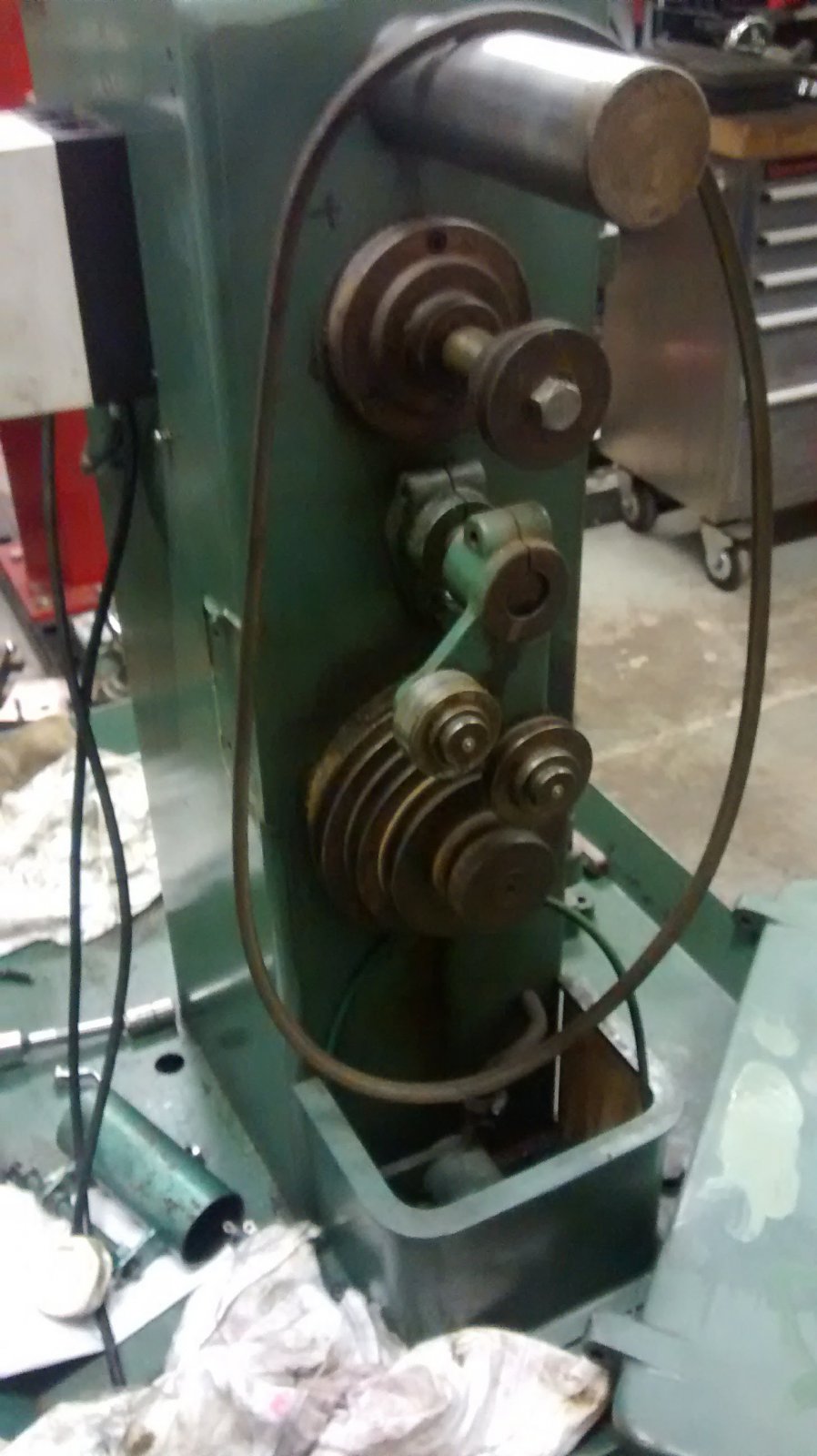

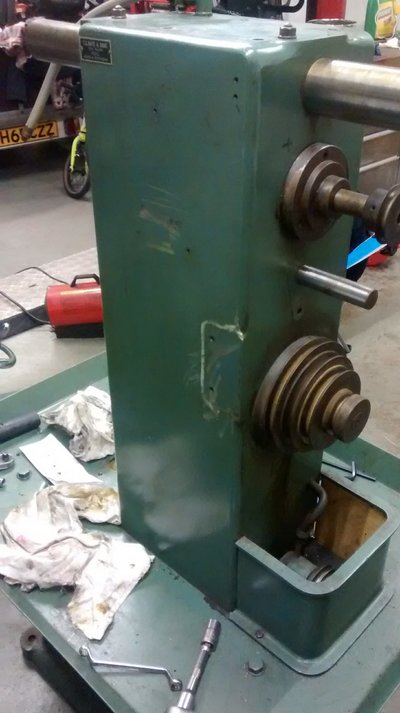

Here is tonight's progress.........

So in similar tradition to other great hybrids like the Triton, what do I call this contraption?

Tomport, Bridge Senior?

Maker · Dec 31, 2016

Will be reading with great interest, this would make my milking machine useful

.
One question (for now :whistle:

); Where did you get the Bridgeport head?

ukracer · Dec 31, 2016

Maker said:
Will be reading with great interest, this would make my milking machine useful.
One question (for now); Where did you get the Bridgeport head?

Off a Bridgeport..... :fighting:

Maker · Dec 31, 2016

ukracer said:
Off a Bridgeport.....

Sometimes on here I'm blown away by the vast knowledge of hundreds of subjects and how it's concentrated into simple informative posts.

Other times I strain my superior rectus rolling my eyes too hard.

Guess which one that was :rolleyes:

.

Fazerruss · Dec 31, 2016

Maker said:
Will be reading with great interest, this would make my milking machine useful.
One question (for now); Where did you get the Bridgeport head?

Surprisingly I got it off eBay. I tried all the local machine tool dealers but no joy. Its rare now get something decent and sensibly priced off the bay

Fazerruss · Dec 31, 2016

ukracer said:
Off a Bridgeport.....

It was bolted to a Jarocin :laughing:

Rig Pig · Dec 31, 2016

Is that an M head? Does it have a standard Taper?

RichardM · Dec 31, 2016

Fazerruss said:
So in similar tradition to other great hybrids like the Triton, what do I call this contraption?

Tawny

Fazerruss · Dec 31, 2016

Rig Pig said:
Is that an M head? Does it have a standard Taper?

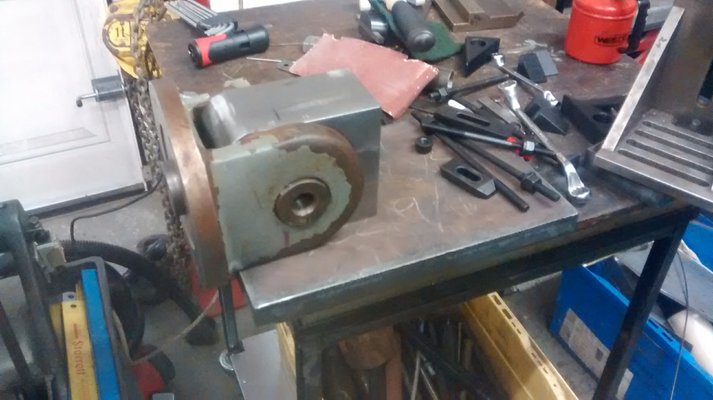

No its bit unusual this one. Its a cherrying head with a MT2 taper which is nice cause all my tooling is mt2

arther dailey · Dec 31, 2016

Nothing wrong with wanting it clean to start with, when I get a van it get a head to toe check over and thorough clean, dont mind my own dirt but damned if I want to handle some one elses!

ukracer · Dec 31, 2016

Maker said:
Sometimes on here I'm blown away by the vast knowledge of hundreds of subjects and how it's concentrated into simple informative posts.

Other times I strain my superior rectus rolling my eyes too hard.

Guess which one that was.

Was that rectus or rectum??? :drunk:

Maker · Dec 31, 2016

ukracer said:
Was that rectus or rectum???

Rectus (Like the fittings on Richard's watercoolers

), the eye muscle responsible for looking up

.

Fazerruss · Dec 31, 2016

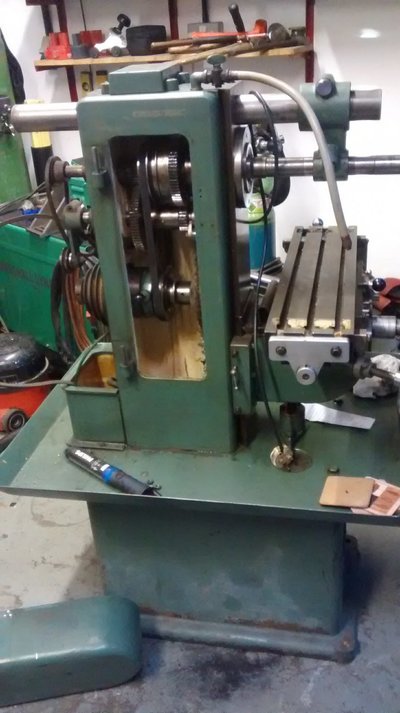

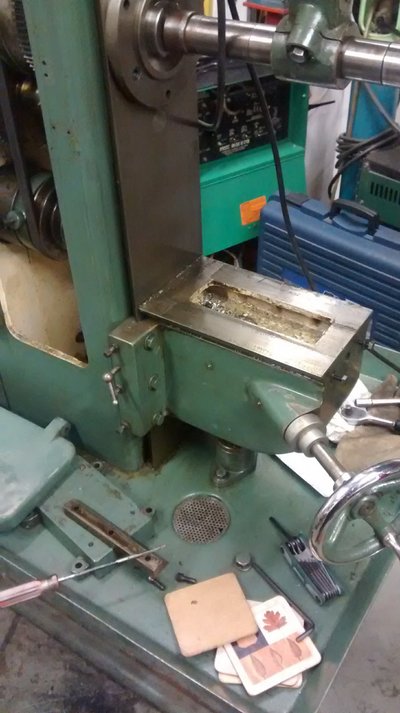

Got the rest apart and now sanding and paint preparation.

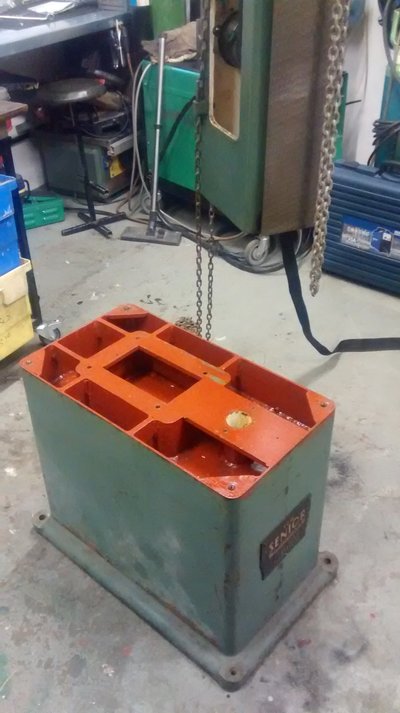

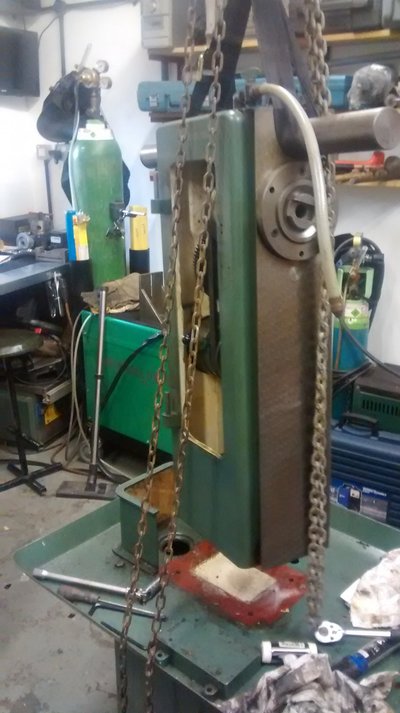

I thought now the knee is off it should be manageable by hand, er..... No. Out with the chain blocks again.

Even the name plate is heavy. Its solid brass

Fazerruss · Jan 16, 2017

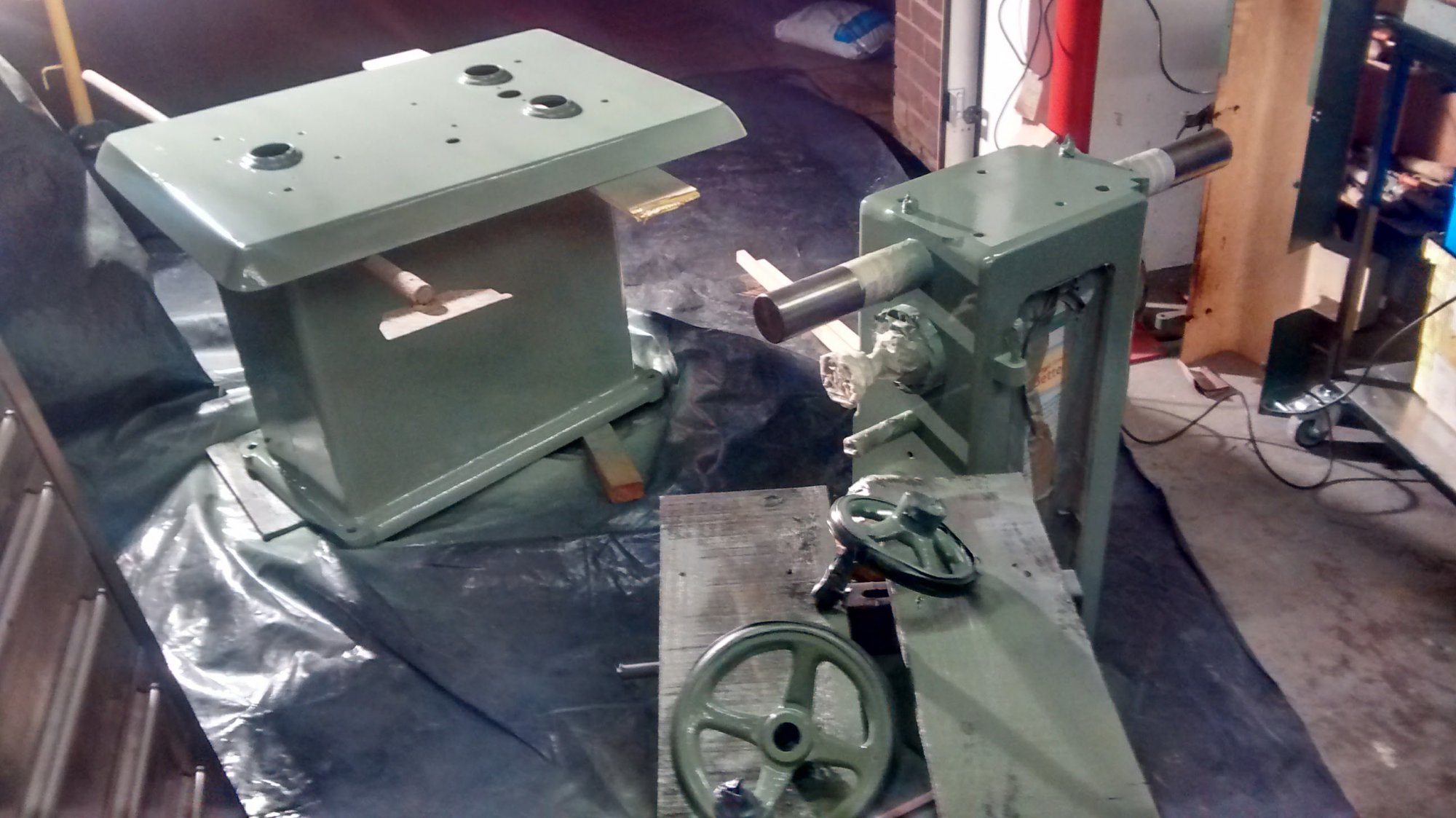

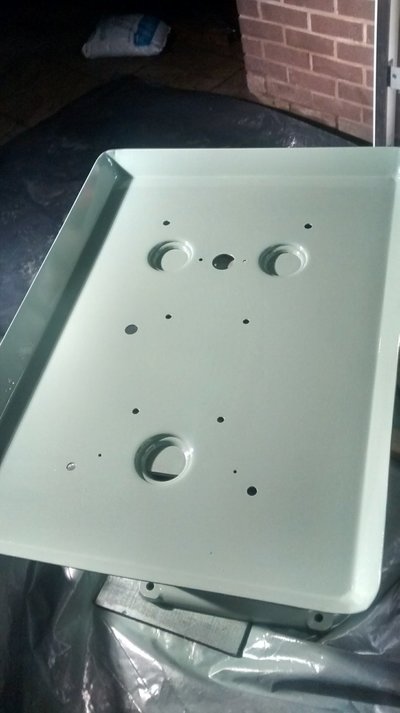

Finally got some paint on it tonight.

Fazerruss · Jan 18, 2017

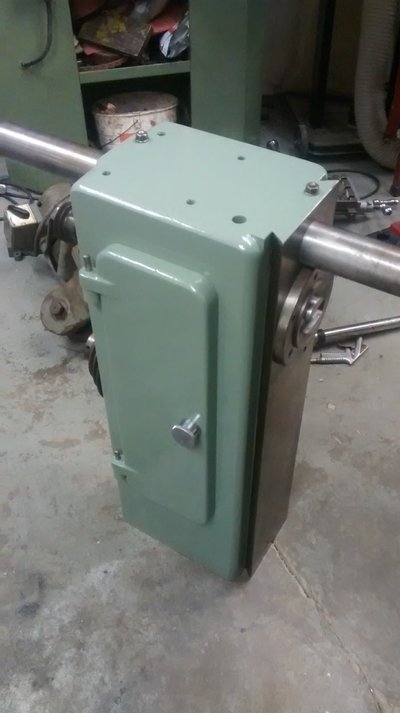

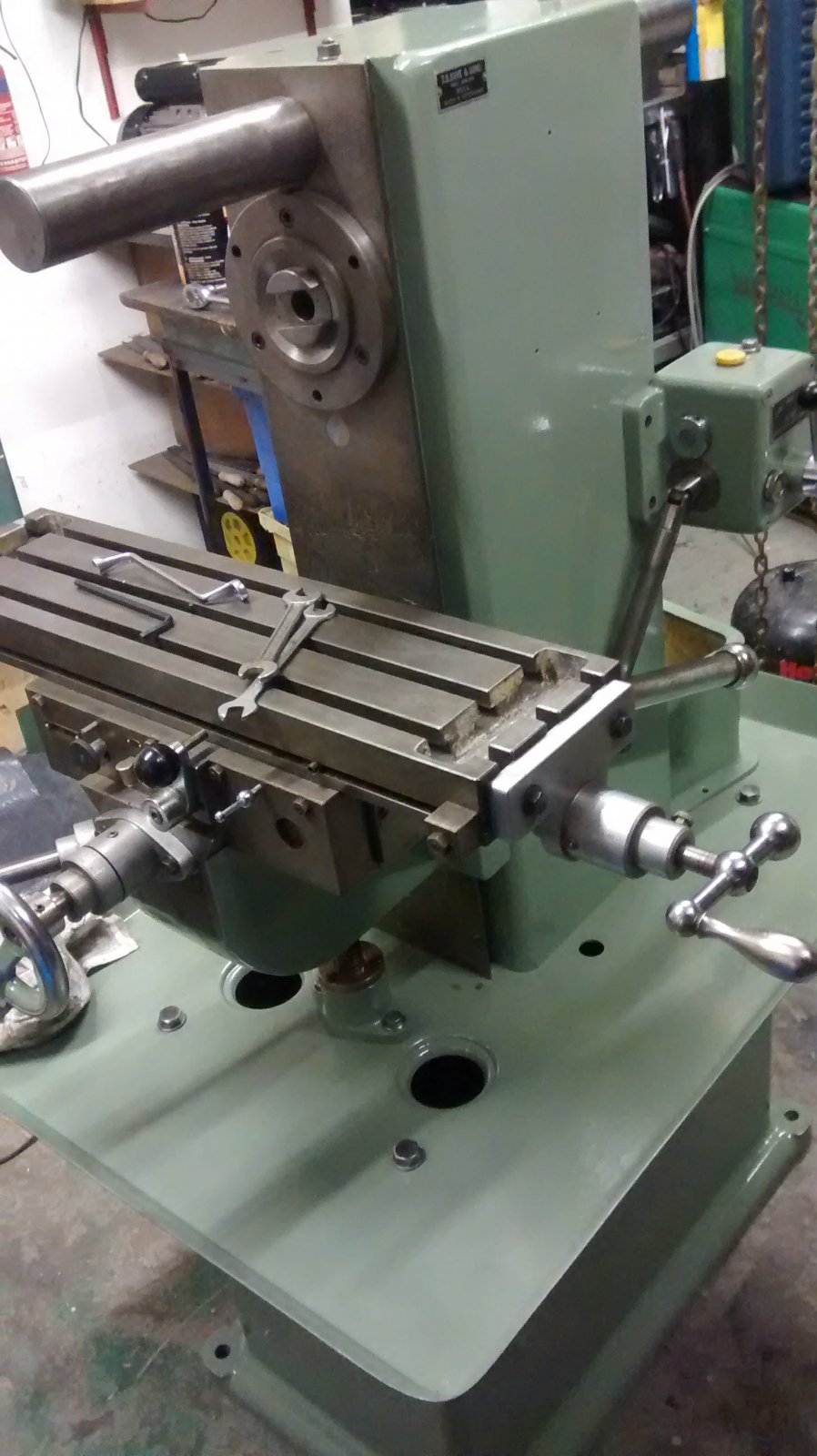

I'm now on with the part I enjoy the most, unwrapping the masking and rebuilding......

Fazerruss · Feb 9, 2017

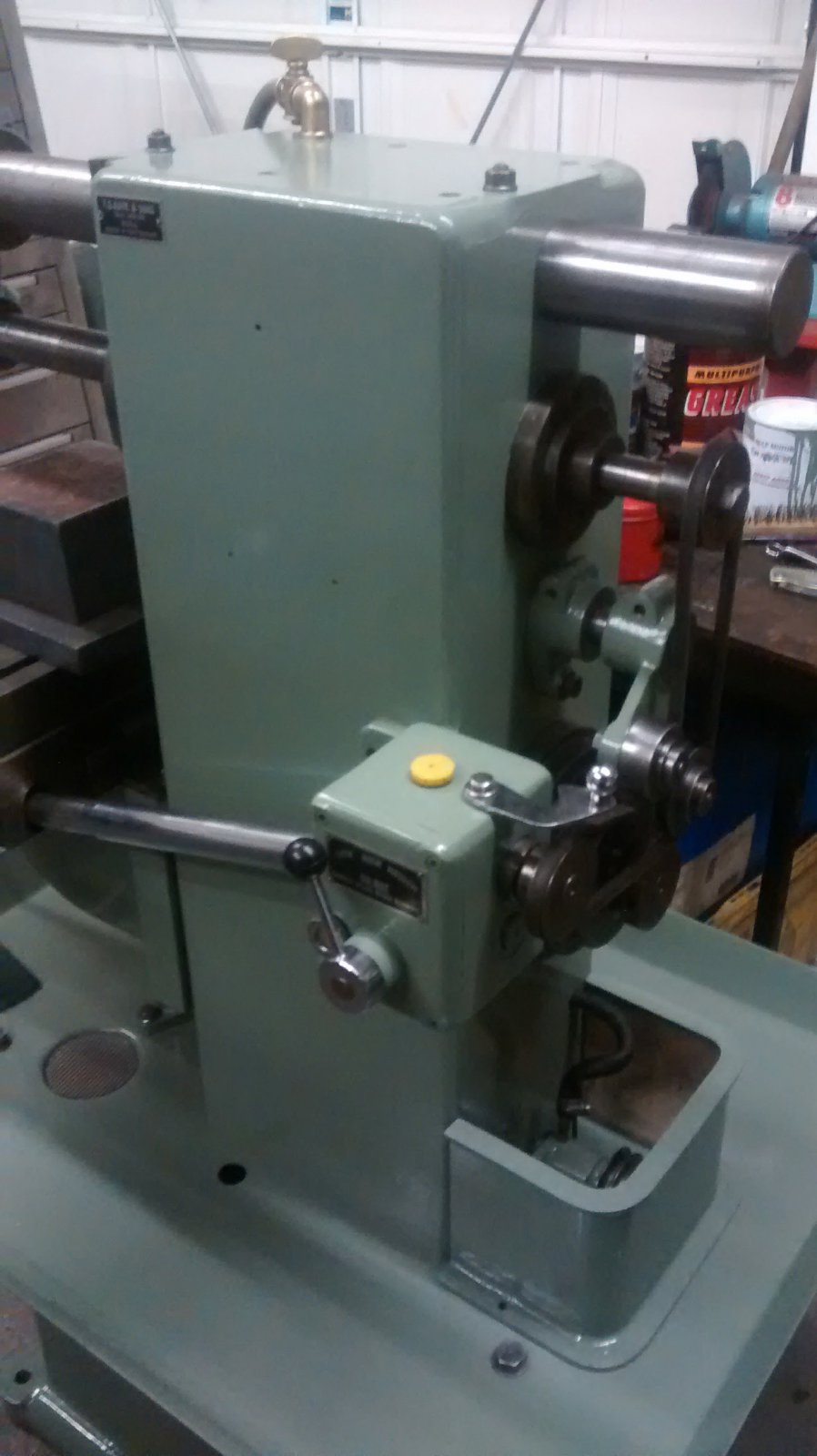

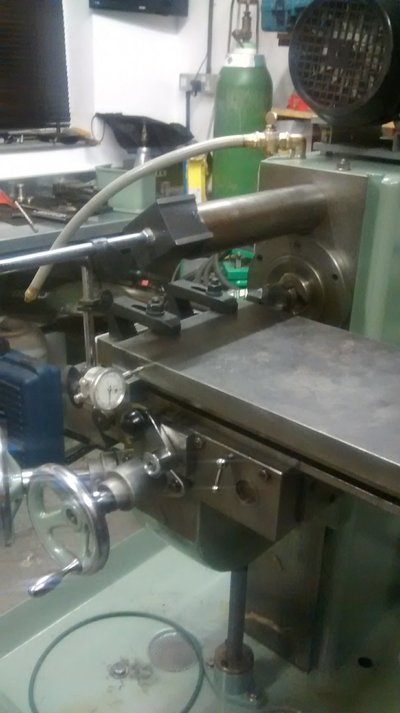

Got a bit further, still not finished painting all the parts yet but it is now in a usable state.

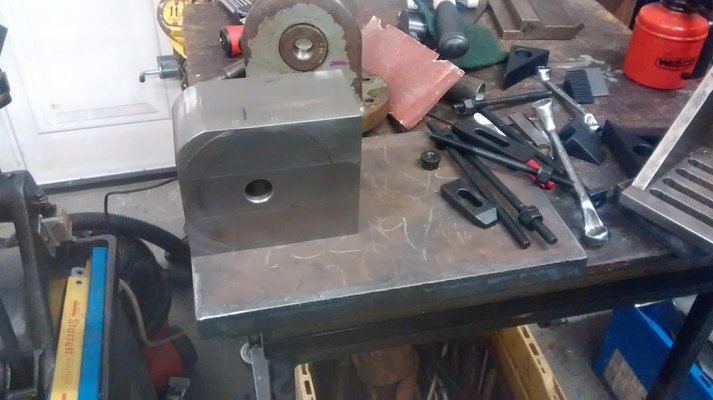

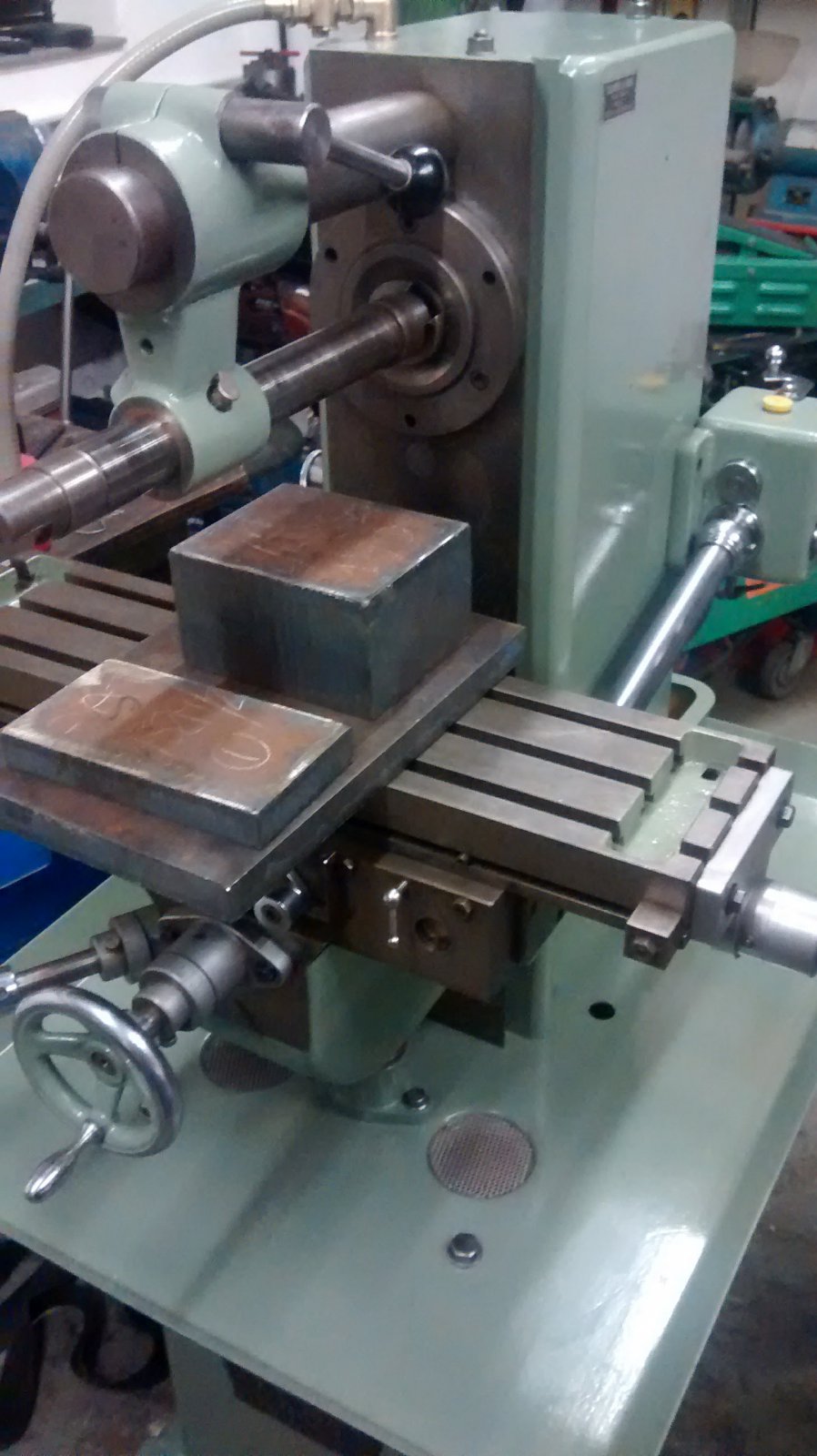

These are the lumps of steel I'll be machining to make the attattachment parts for the vertical head.

Fazerruss · Feb 9, 2017

The good thing I didn't know about these mills is the harbour is mt3 so with a mt3 to mt2 adapter can fit my fit my vertical cutters and machine the parts like on a vertical mill.

Fazerruss · Feb 9, 2017

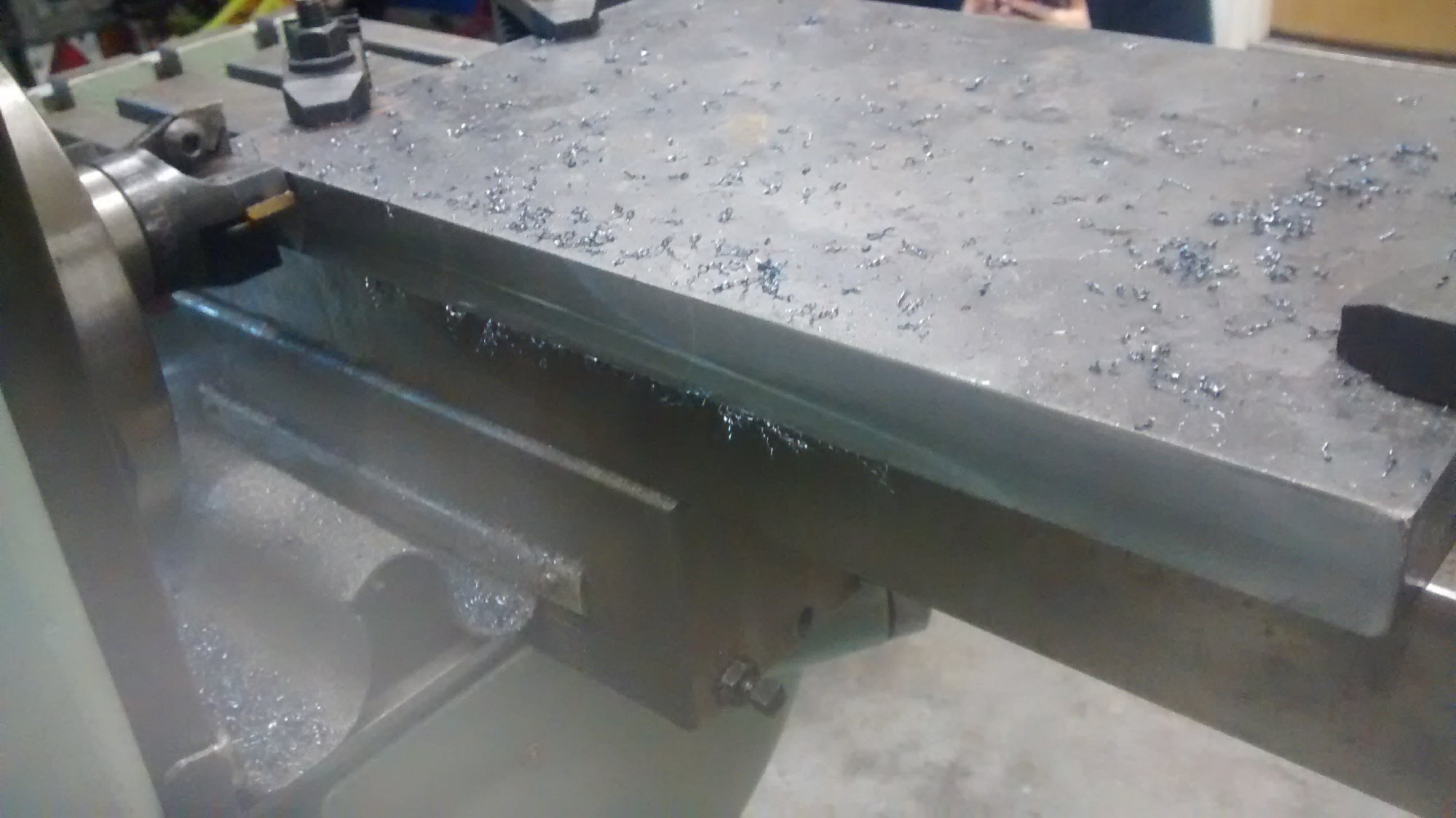

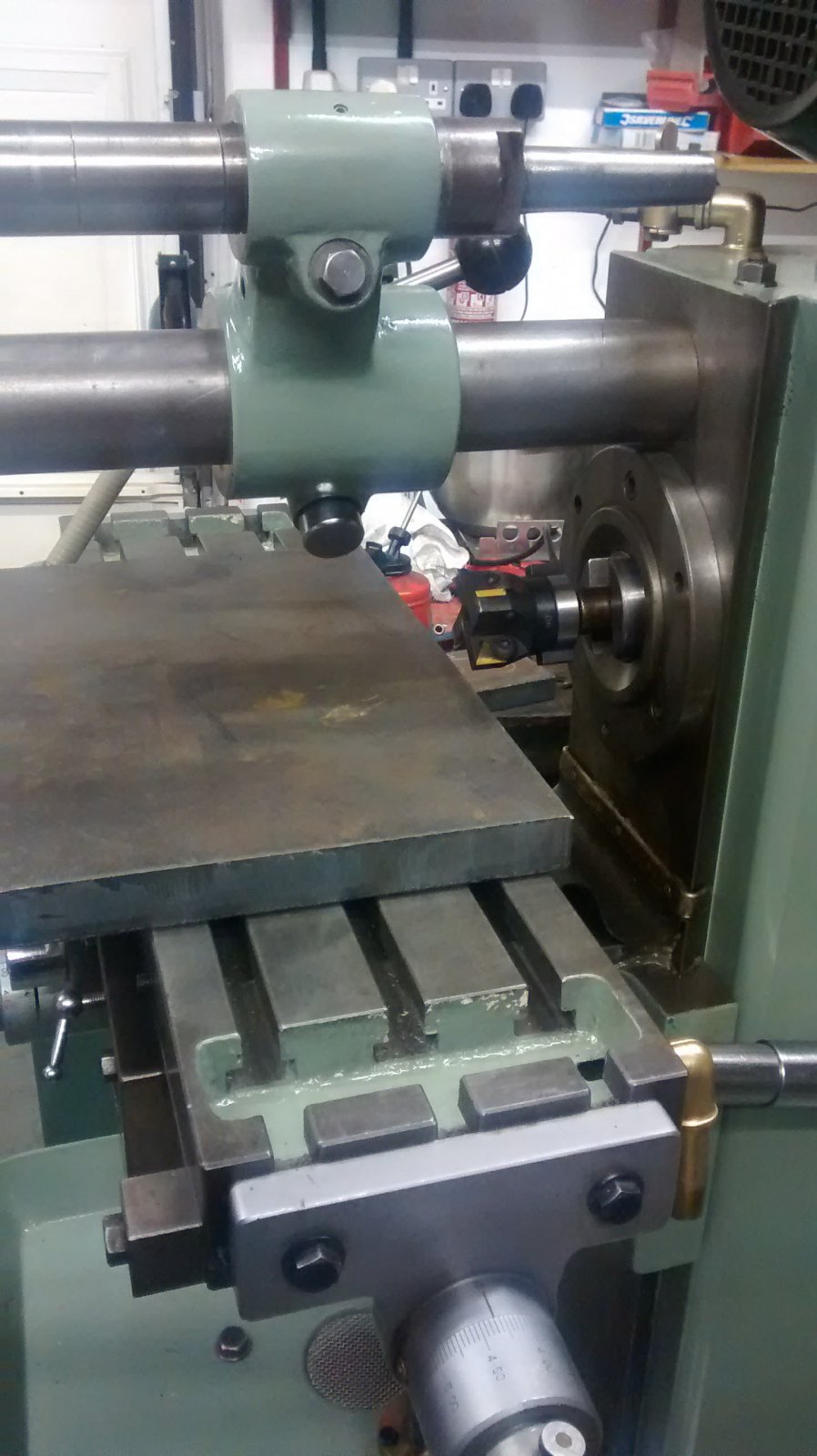

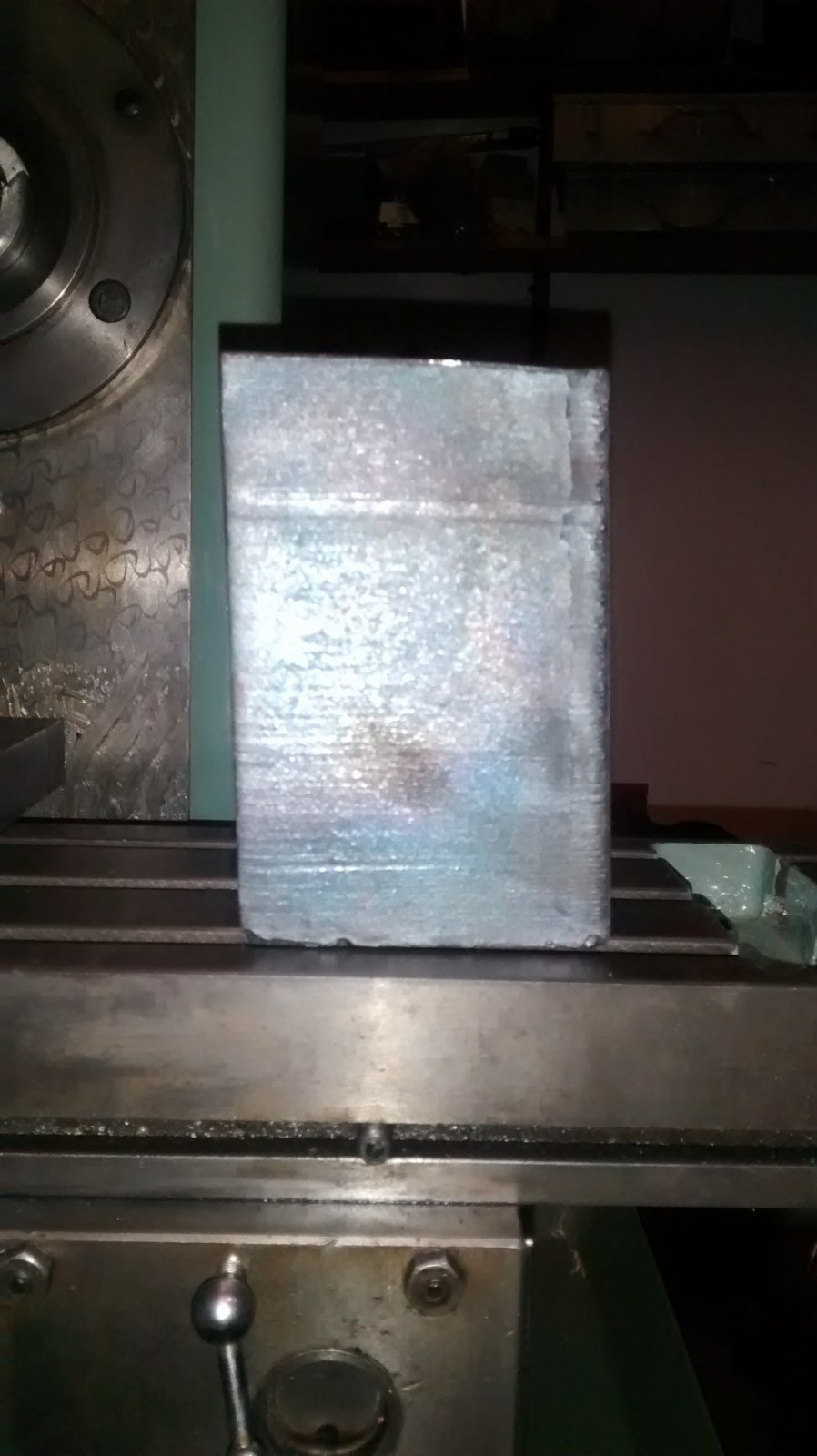

So I've fired her up started squaring up the steel.

Its either been flame or plasma cut so not precise and has a significant taper. The block is paralleliped

It's a bit rough yet but at least square on one side. Five more to go

Fazerruss · Mar 19, 2017

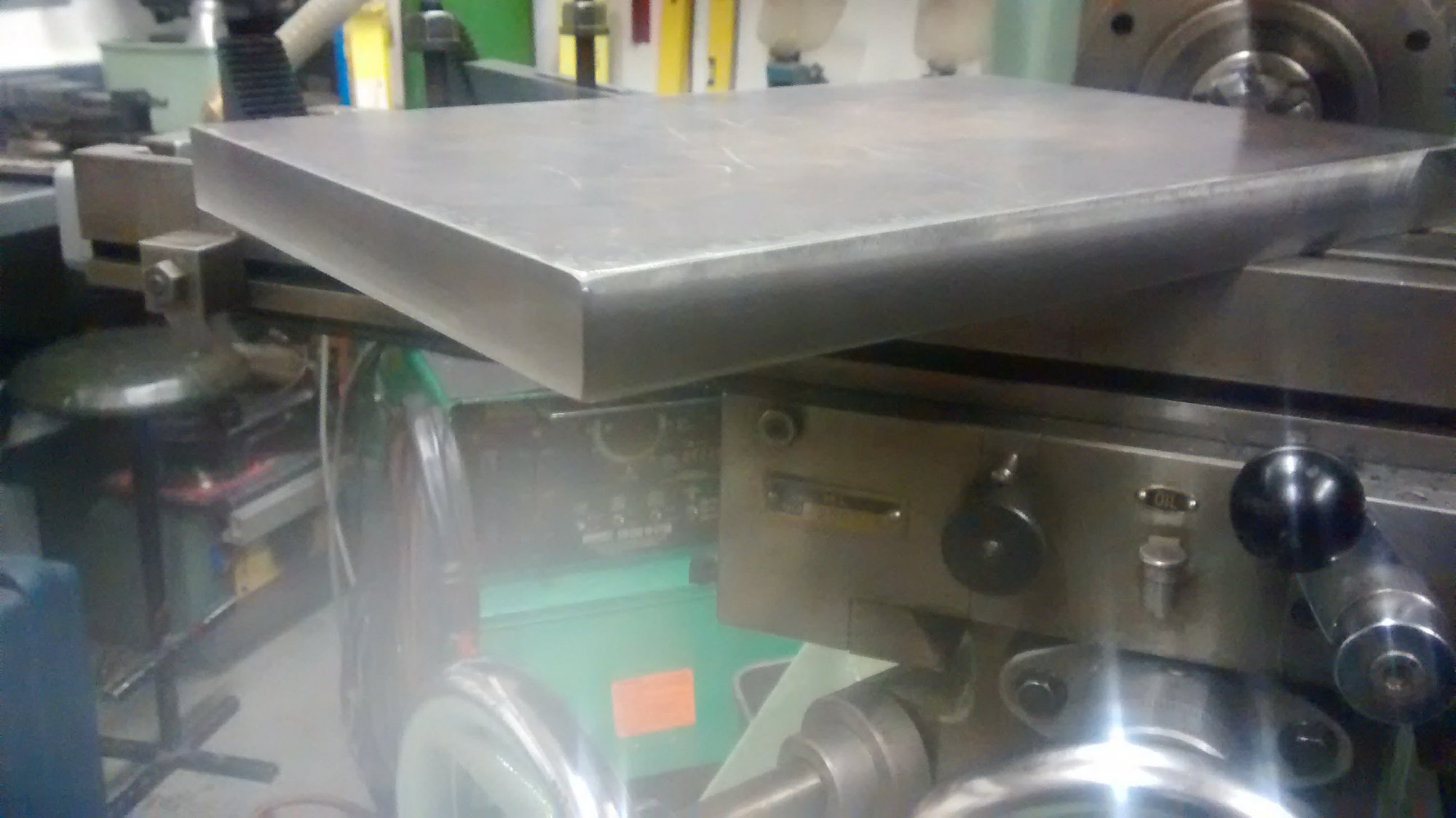

A few more pics. There's a lot of machining to to so it's slow progress. Nothing interesting yet, just squaring up the rough cut pieces. It gives a nice finish though.
